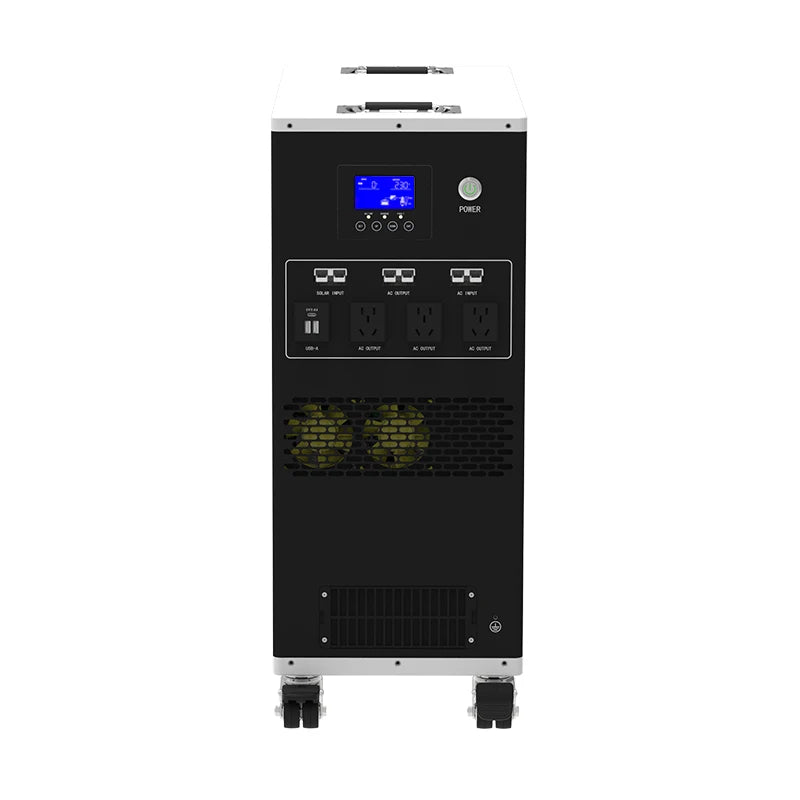

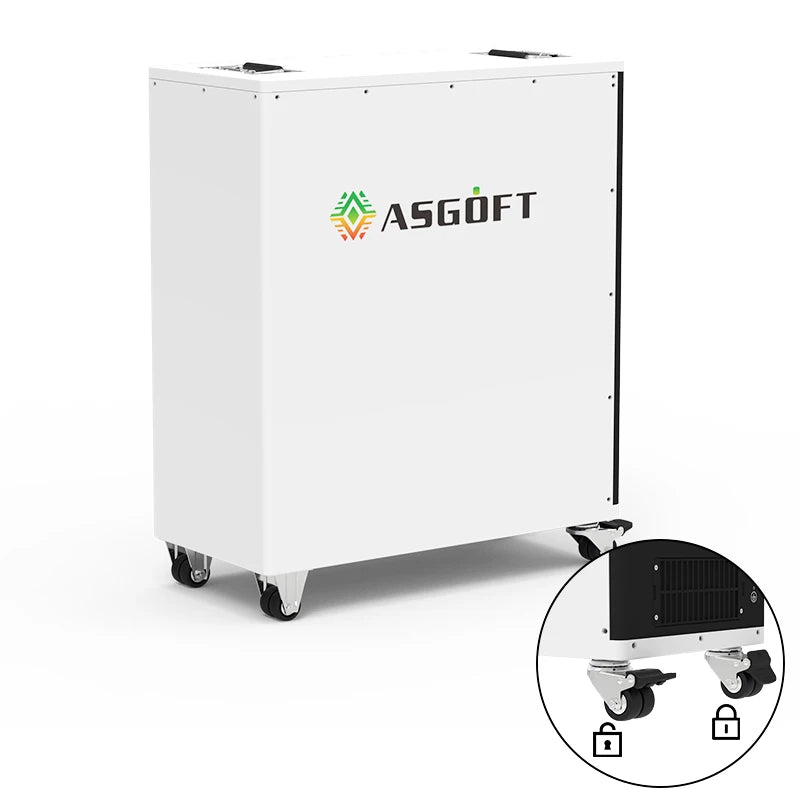

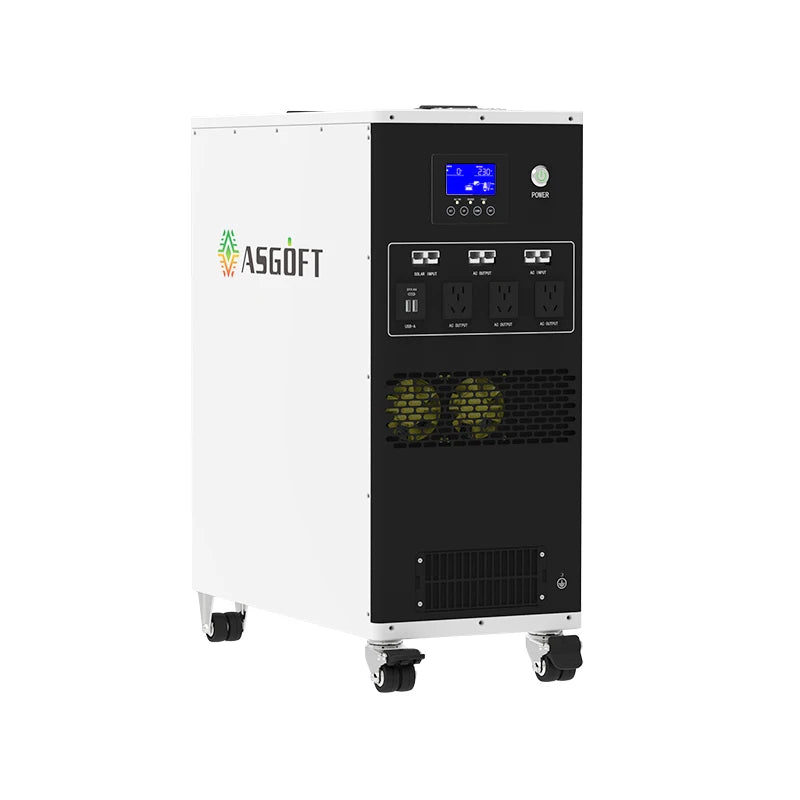

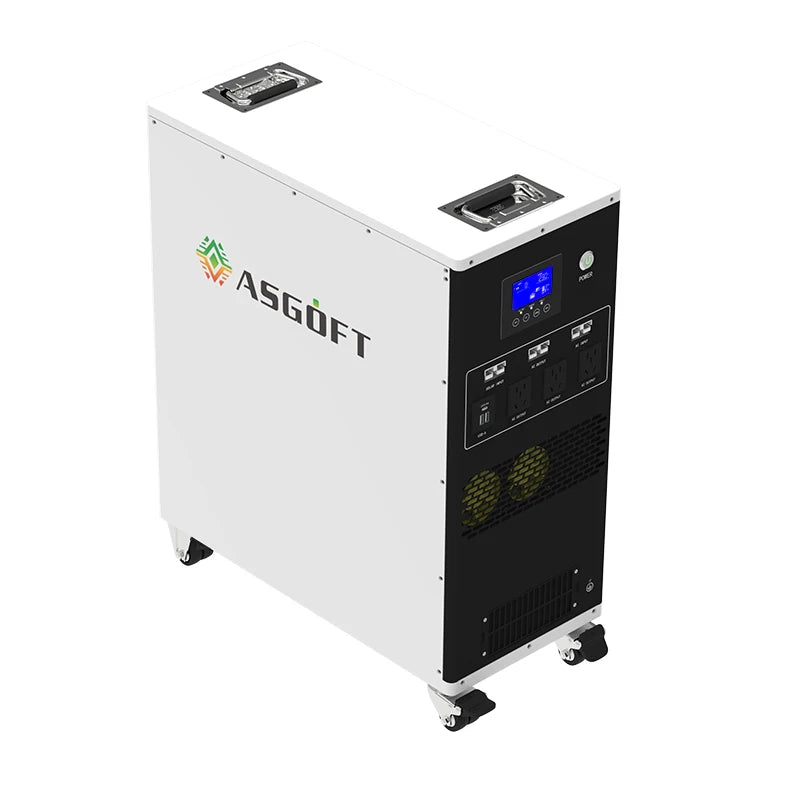

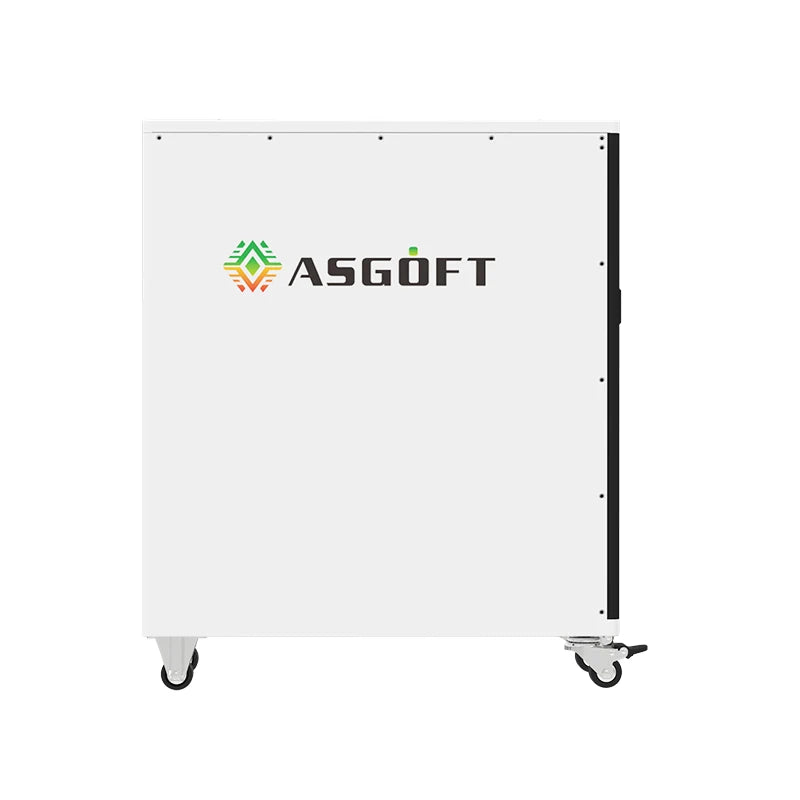

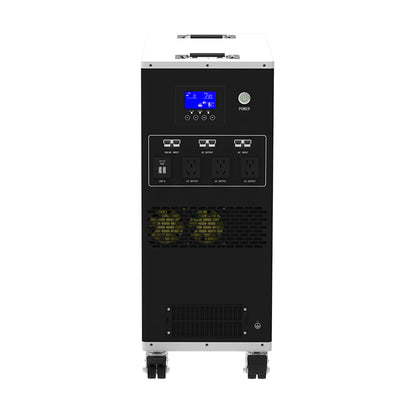

All-in-one Energy Storage Battery System
All-in-one Energy Storage Battery System
SPECIFICATIONS
Brand Name: NoEnName_Null
Type: Hand Tool Parts
Origin: Mainland China
Model Number: BESS-ASM 6000WH-3000W
Place of Origin: Guangdong, China
Brand Name: ASGOFT
Power Source: AC Adaptor, Solar Panel
Battery Type: Portable Power Station LiFePO4
Inverter Type: Pure Sine Wave
Controller Type: MPPT
Name: Portable Power Station
Nominal Voltage: 25.6V
Nominal Capacity: 235Ah
Energy: 6016Wh
Communication Mode: RS485/RS232/CAN
Charge Voltage: 29.2V
Rapid Charge Current: 150A
Inverter Rated Power: 3000W
Size: 610*560*270mm
Weight: Spprox.85kg
All-in-one Battery Energy Storage System 6Kwh &Portable Power Staion
Model | BESS-ASM 6000WH-3000W | |
Electrical Characteristics | Nominal Voltage | 25.6V |
Nominal Capacity | 235Ah | |
Energy |
6016Wh |
|
Cycle Life | >3000Cycle @80%DOD, at 25℃ | |
Communication Mod | RS485/RS232/CAN | |
Standard Charge | Charge Voltage | 29.2V |
Standard Charge Current | 100A | |
Rapid Charge Current | 150A | |
Max. Charge Current | 150A | |
Standard Discharge | Discharge Cut-off Voltage | 20V |
Standard Discharge Current | 100A | |
Max. Continuous Discharge Current | 150A | |
Inverter | AC input | 170-280VAC 50/60Hz |
AC output | 230VAC 50/60Hz | |
Rated Power | 3000W | |
Max.PV Array Power | 3000W | |
MPPT Operating Voltage | 90-450VDC | |
MPPT Max Charge Current | 80A | |
Temperature | Charge Temperature | 0℃ ~ 55℃ |
Discharge Temperature | -20℃ ~ 65℃ | |
Mechanical | Diamension(H*W*D) | 610*560*270mm |
Weight | Approx.86.5±0.5kg | |
Certification | CE/ROHS/UN38.3/MSDS |
Welcome to our product's FAQ page! Here are some frequently asked questions and their corresponding answers to help you better understand our product:
1. What is this product for?
Our product is a multifunctional energy storage device. It is designed to address home electricity needs, outdoor construction power supply, emergency power supply, and provide convenient power solutions in complex environments.
2. What are the main features of this product?
- Feature 1: More affordable price
- Feature 2: Larger capacity
- Feature 3: European certification
3. What are the applicable scenarios for this product?
Our product is suitable for various scenarios, including but not limited to indoor, outdoor, and construction sites. Whether it is for home use, outdoor camping, or construction sites, our product can provide excellent solutions.
4. How do I use this product?
Using our product is very simple:
If you need more detailed instructions, please refer to our user manual or contact our customer support team.
5. Does this product come with a warranty?
Yes, we provide a 3-year warranty service. If any issues occur within the warranty period, please contact our customer support team, and they will be happy to assist you.
6. Do you offer international shipping?
Yes, we offer international shipping services. No matter where you are in the world, we will ensure that you receive our product.
7. Does this product come with accessories?
Yes, we provide some accessories (list the accessories). These accessories can help you better utilize our product and provide additional functionality or expandability.
We hope the above FAQs answer most of your questions. If you have any further inquiries or concerns, please feel free to send us an inquiry. We are dedicated to serving you.
