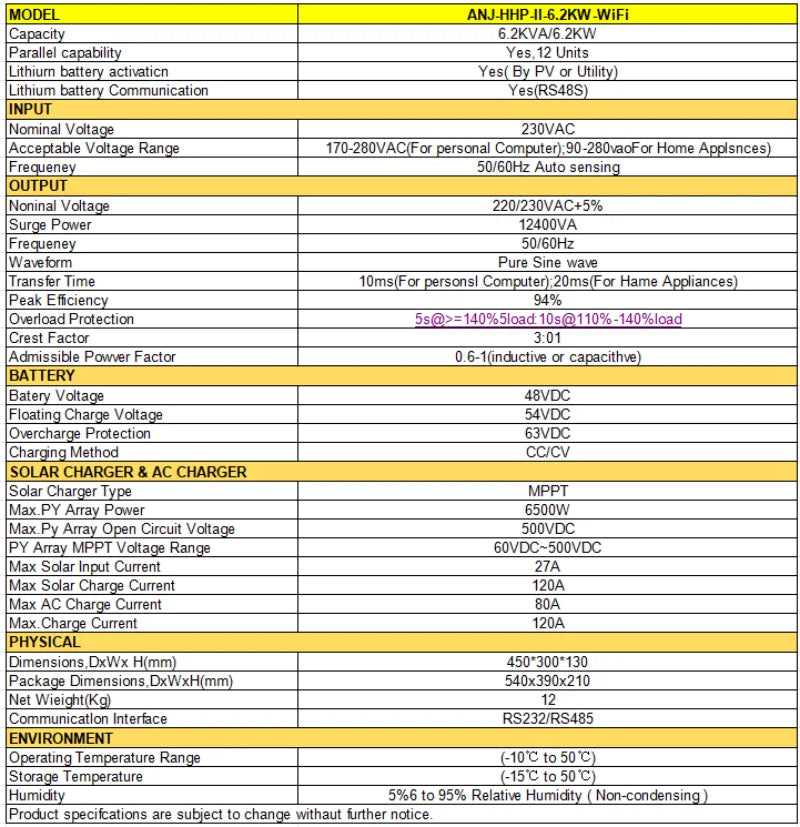

SPECIFICATIONS

Brand Name: ANENJI

Origin: Mainland China

Model Number: ANJ-HHP-II-6.2KP-WIFI

Certification: CE

Size: 540x390x210mm

Application: Laptop

Weight: 12KG

Voltage: 48V

Output Current: 120A

Output Power: 6200W

Output Frequency: 50/60 Hz(Auto sensing)

Output Type: SINGLE

Parallel Capability: YES,12 Units

Nominal Voltage: 230VAC

Acceptable Voltage Range: 170-280VAC(For personal Computer):90-280vac(For Home Appliances)

Voltage: 220/230VAC+5%

Waveform: Pure Sine wave

Surge Power: 12400VA

Peak Eficiency(PV to INV): 96%

Peak Efficiency(Battery to INV): 93%

Crest Factor: 3:1

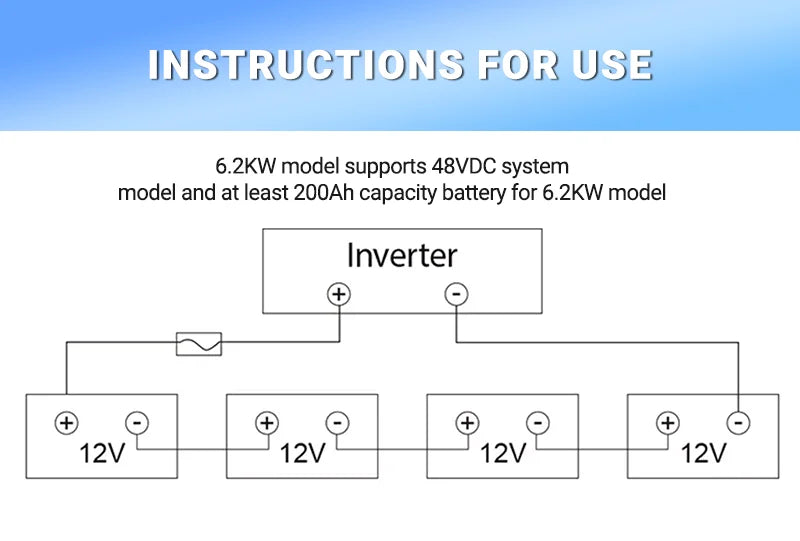

Battery Voltage: 48VDC

Floatig Charge Volage: 54VDC

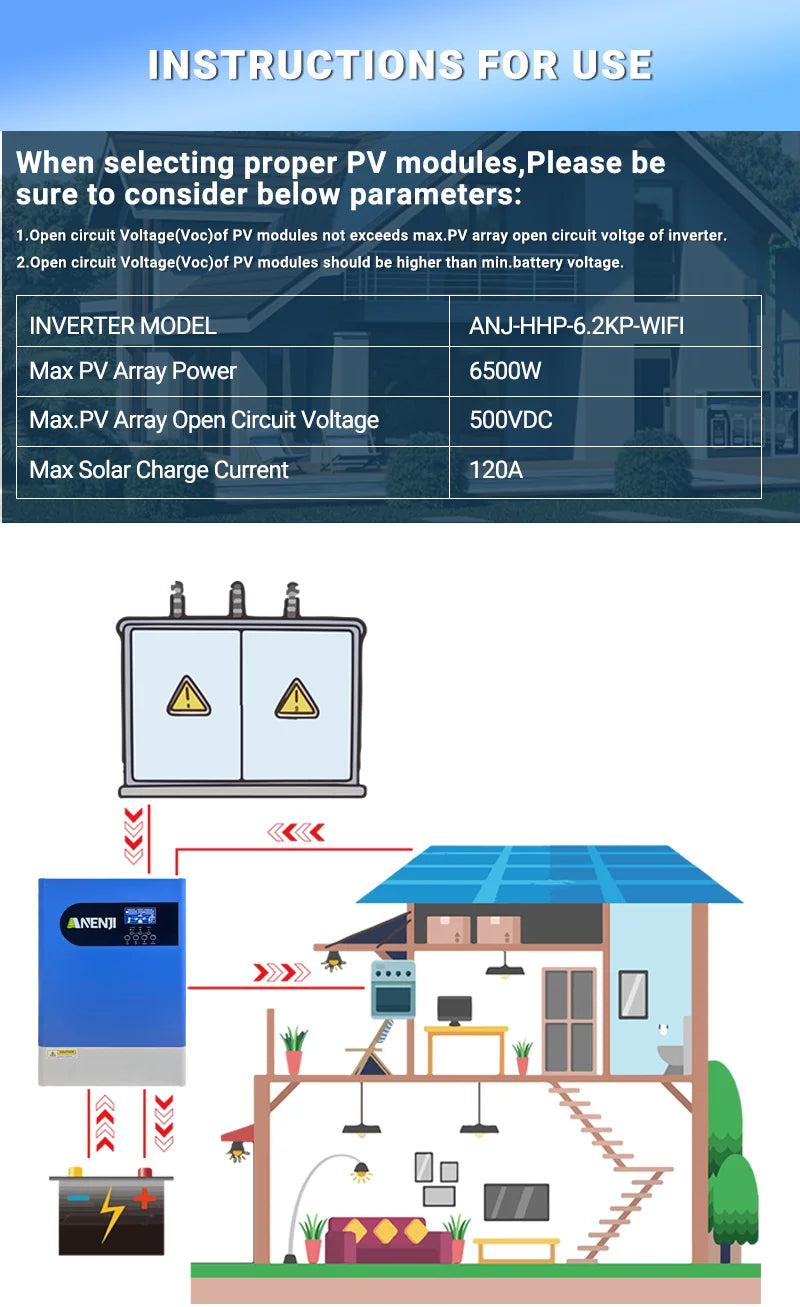

Max.PV Array Power: 6500W

Max.PV Array Open Circuit Voltage: 500VDC

PV Array MPPT Voltage Range: 60VDC~450VDC

Max.Solar Input Current: 27A

Max.Solar Charge Current: 120A

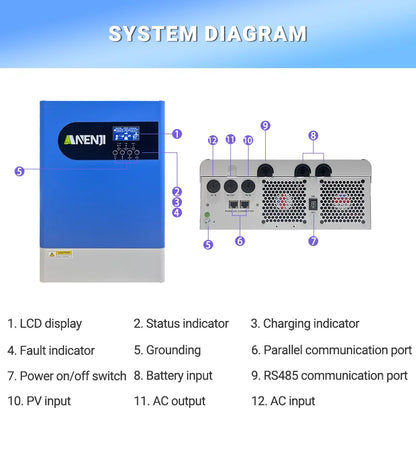

Communication Interface: RS232 / RS485 / Dry-contact

Operating Temperature Range: (-10C to 50C)

Storage Temperature: (-15C ~ 50C)

Humidity: 5% to 95% Relative Humidity ( Non-condensing )

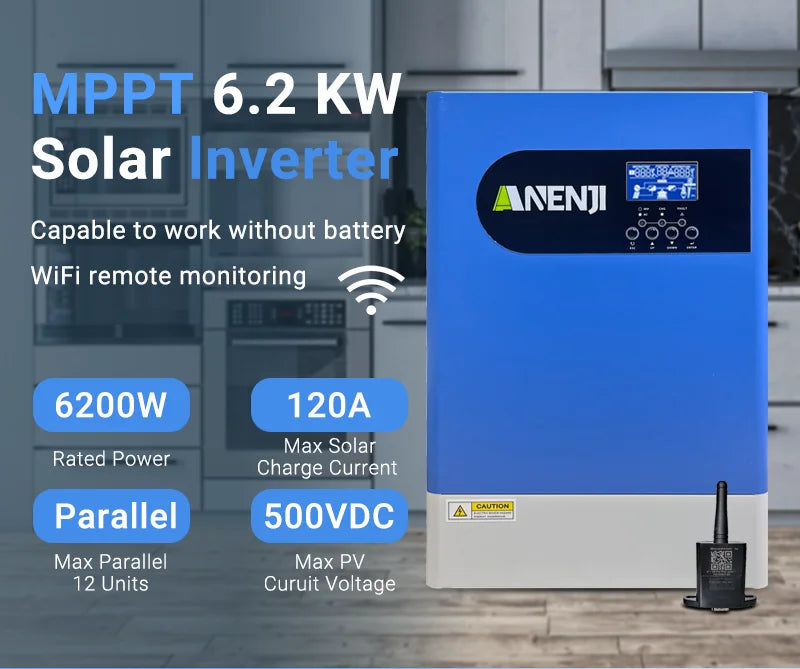

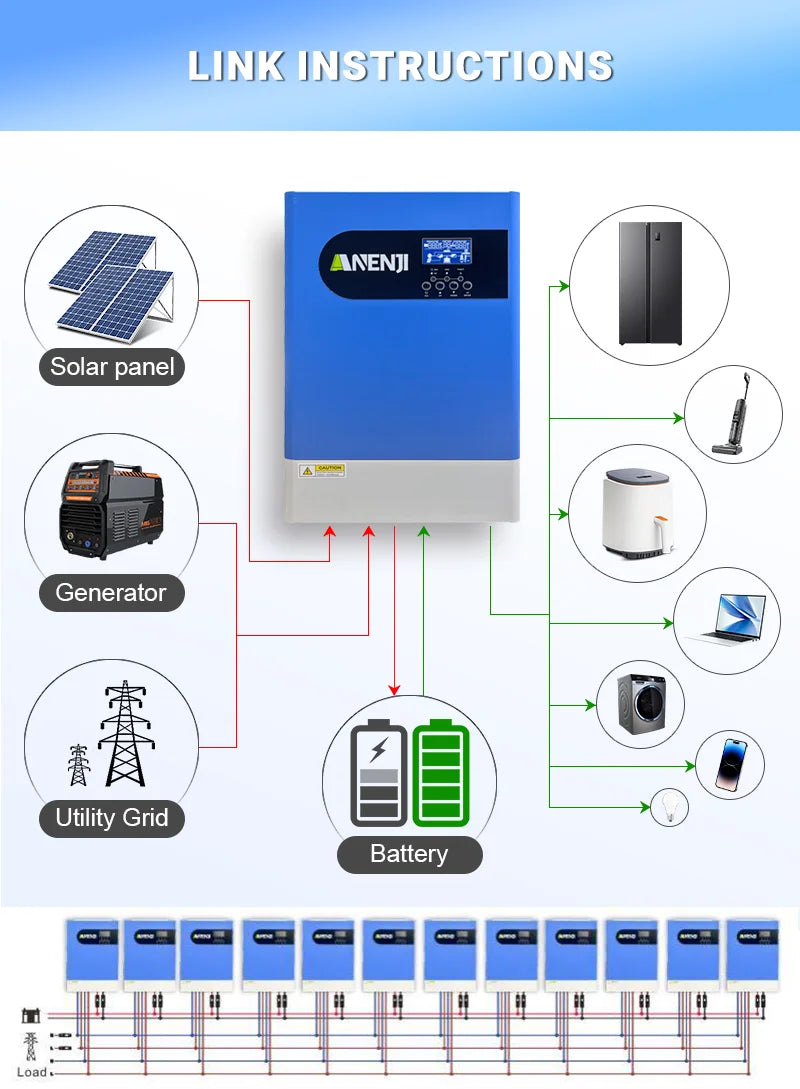

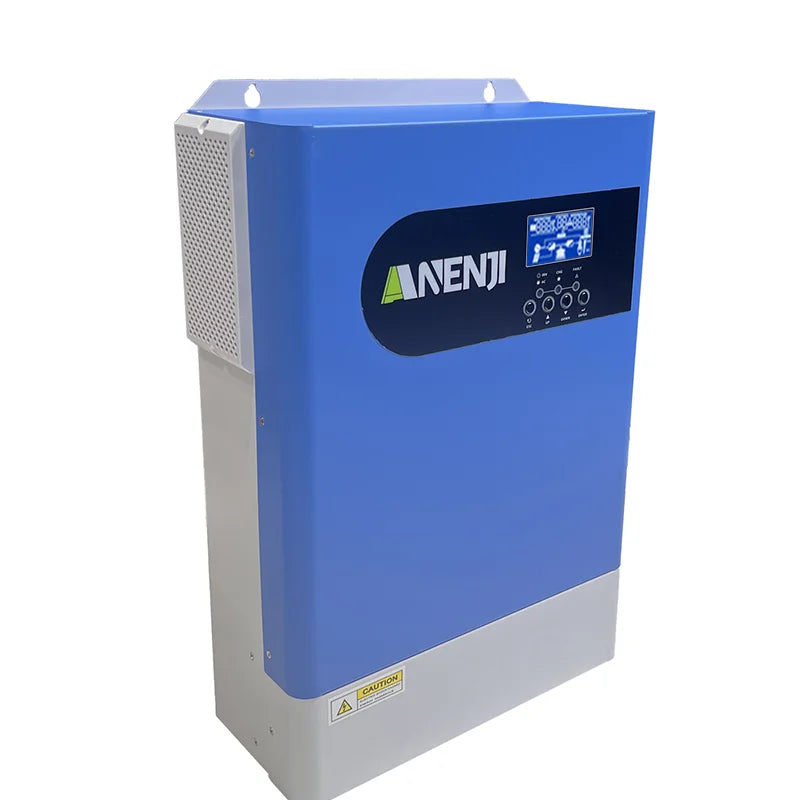

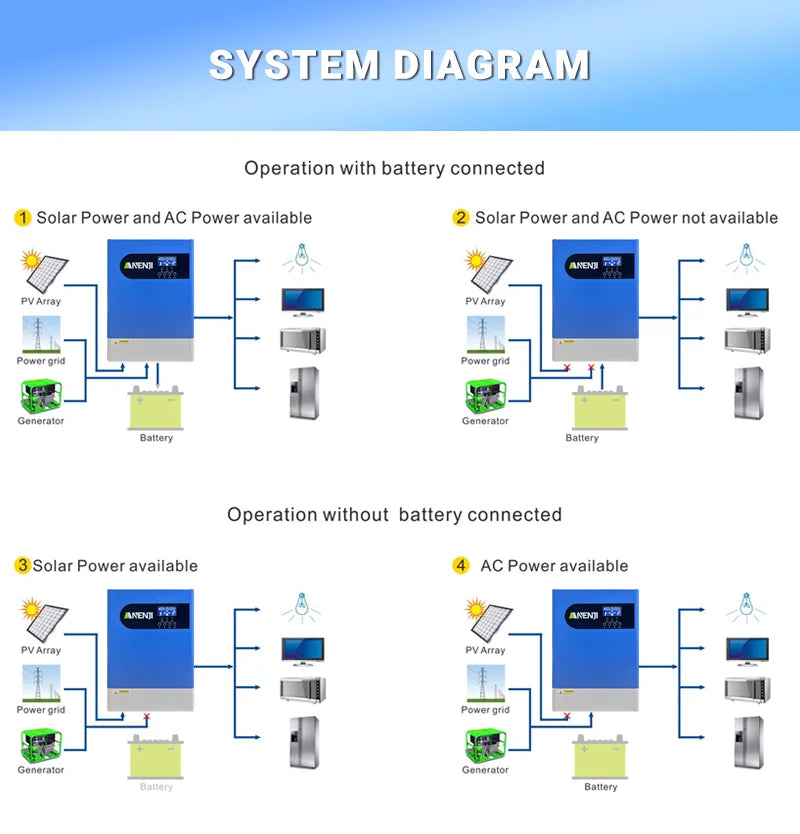

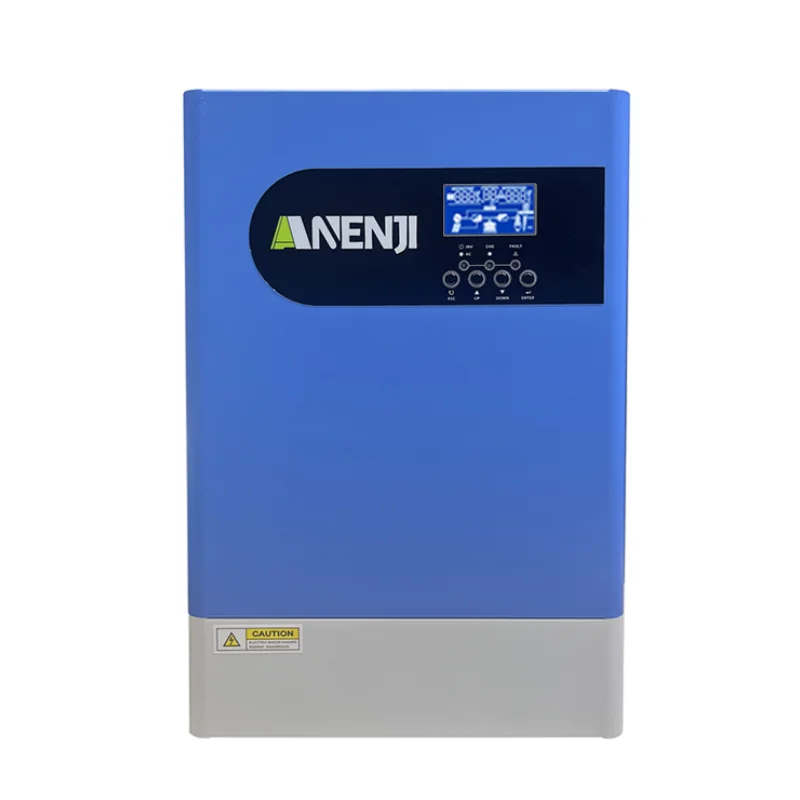

This is a multi-function inverter/charger, combining functions of inverter,MPPT solar charger and batterycharger to offer uninterruptible power support with portable size. Its comprehensive LCD display offersuser-configurable and easy-accessible button operation such as battery charging current, AC/solar chargerpriority, and acceptable input voltage based on different applications.

Features:

-Pure sine wave inverter

-Inverter running without battery

-Built-in MPPT solar controller

-Configurable input voltage range for home appliances and personal computers via LCD setting

-Configurable battery charging current based on applications via LCD setting

-Configurable AC/Solar Charger priority via LCD setting

-Compatible to mains voltage or generator power

-Auto restart while AC is recovering

-Overload/ Over temperature/ short circuit protection

-Smart battery charger design for optimized battery performance

-Cold start function

-6.2KP Built-in parallel board, parallel up to 12 pcs

-Have BMS function
