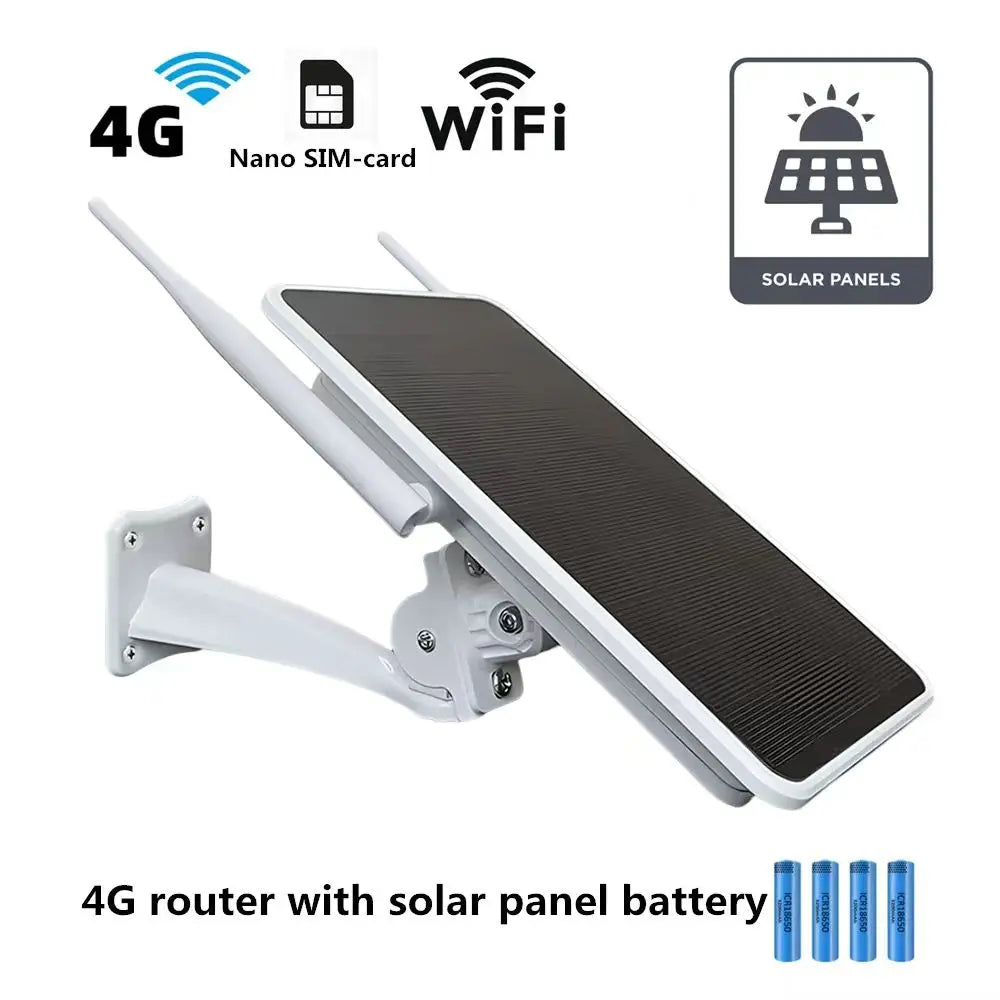

4G solar WiFi router
4G solar WiFi router
SPECIFICATIONS
Brand Name: HLVISIOIN
Origin: Mainland China
Hign-concerned Chemical: None
Power Supply: Normal
Connectivity: 4G
Installation: Normal
Plug Type: EU Plug
Plug Type: US PLUG
Plug Type: AU Plug
Plug Type: UK Plug
Certification: CE
Certification: FCC
Certification: RoHS
Certification: UL
Certification: KC
Model Number: D4
Supported Mobile Systems: IOS
Supported Mobile Systems: Android
Supported Mobile Systems: Windows Mobile
Supported Operating Systems: Windows 10
Supported Operating Systems: Mac OS
Supported Operating Systems: Windows 8
Supported Operating Systems: Windows 7

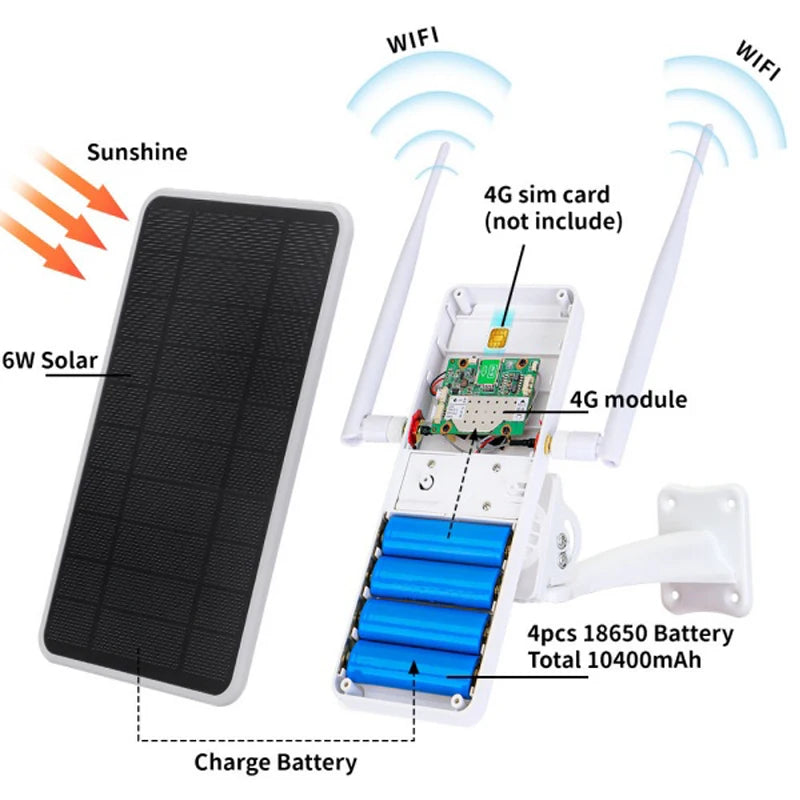

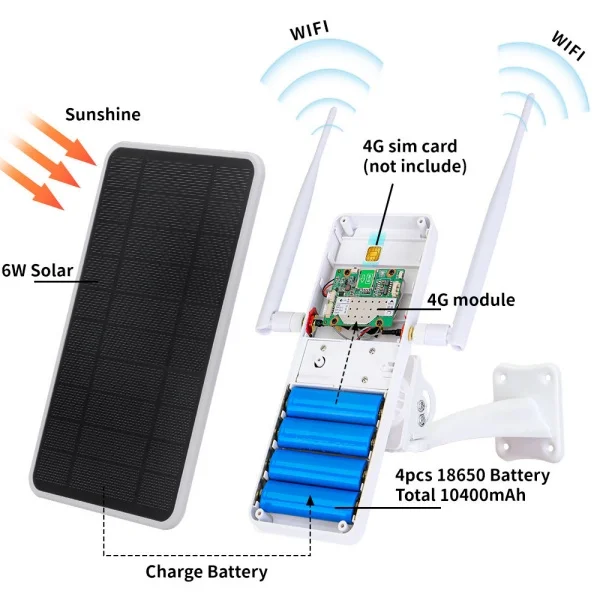

solar panel size: 225*130*2.2MM
Working voltage: 5V
Working current: 1000ma
Open circuit voltage: 6V
short-circuit current: 1200ma
peak power: 5W
Types of silicon wafers: Single crystal efficiency 21%
Number of silicon wafer scratches: 10

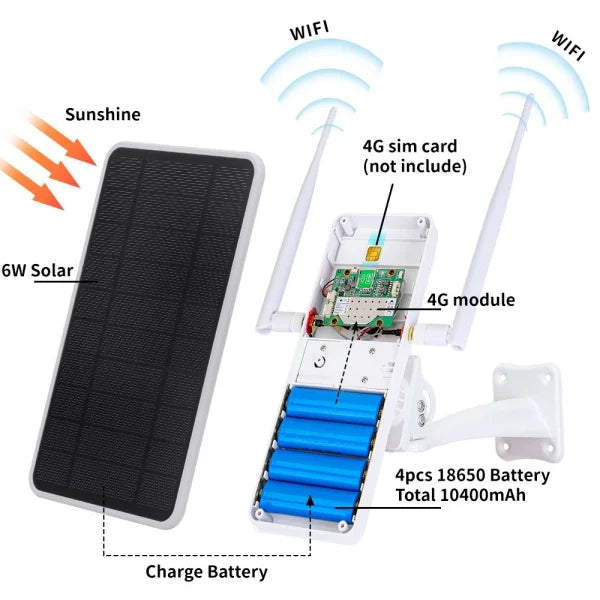

Number of batteries: 18650 lithium battery * 4 cells * 2600mA
Full battery life: About 50 hours
Charging duration: About 7 hours (affected by environmental factors)
WIFI SSID: MIFI-XXXX
WIFI password: 1234567890
WIFI frequency: 2.4GHz
WIFI Security Mode: Open, WPA-PSK, WPA2-PSK
WIFI channel: AUTO 1-11 COUNTRY:U5
WIFI channel broadband: 10-40MHZ (Default=20MHZ)
WIFI Wireless Local Area Network: Supports 802.11b/g/n
gateway: 192.168.100.1
gateway password: admin
Coverage distance: Open distance of 20-60M
working temperature: -15 to 75°C
Working humidity: 10%-70%

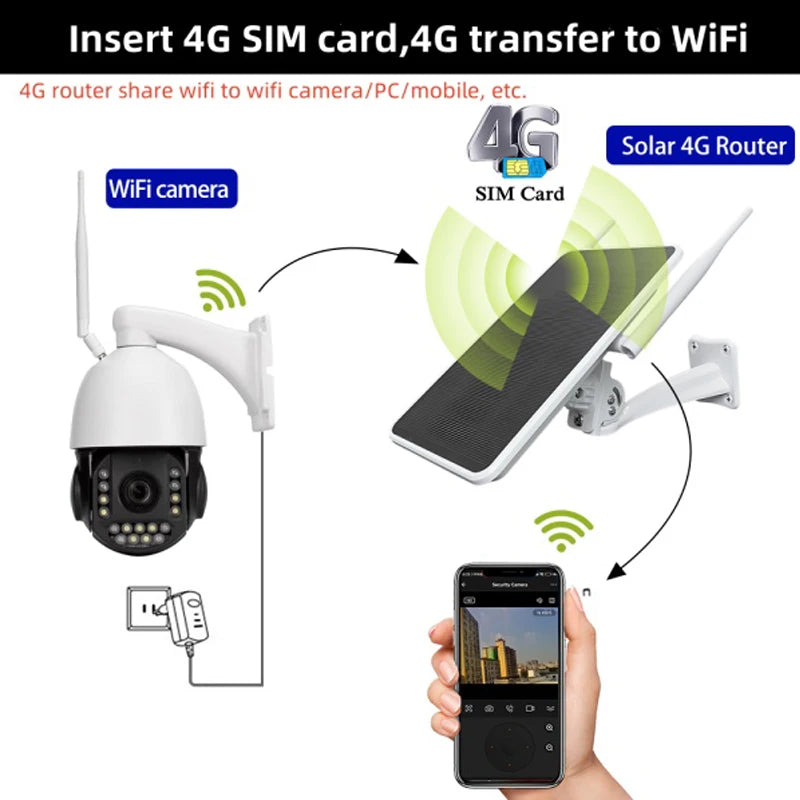

How to use it as a repeater?
Operation steps
Login IP: 192.168.100.1
Login password: admin
Click on options
Click on Internet WiFi
Internet WiFi Click to Apply
Clicking on add will automatically search for nearby WiFi signals
Add nearby WiFi signal applications that can be connected to the internet, save and complete the operation
