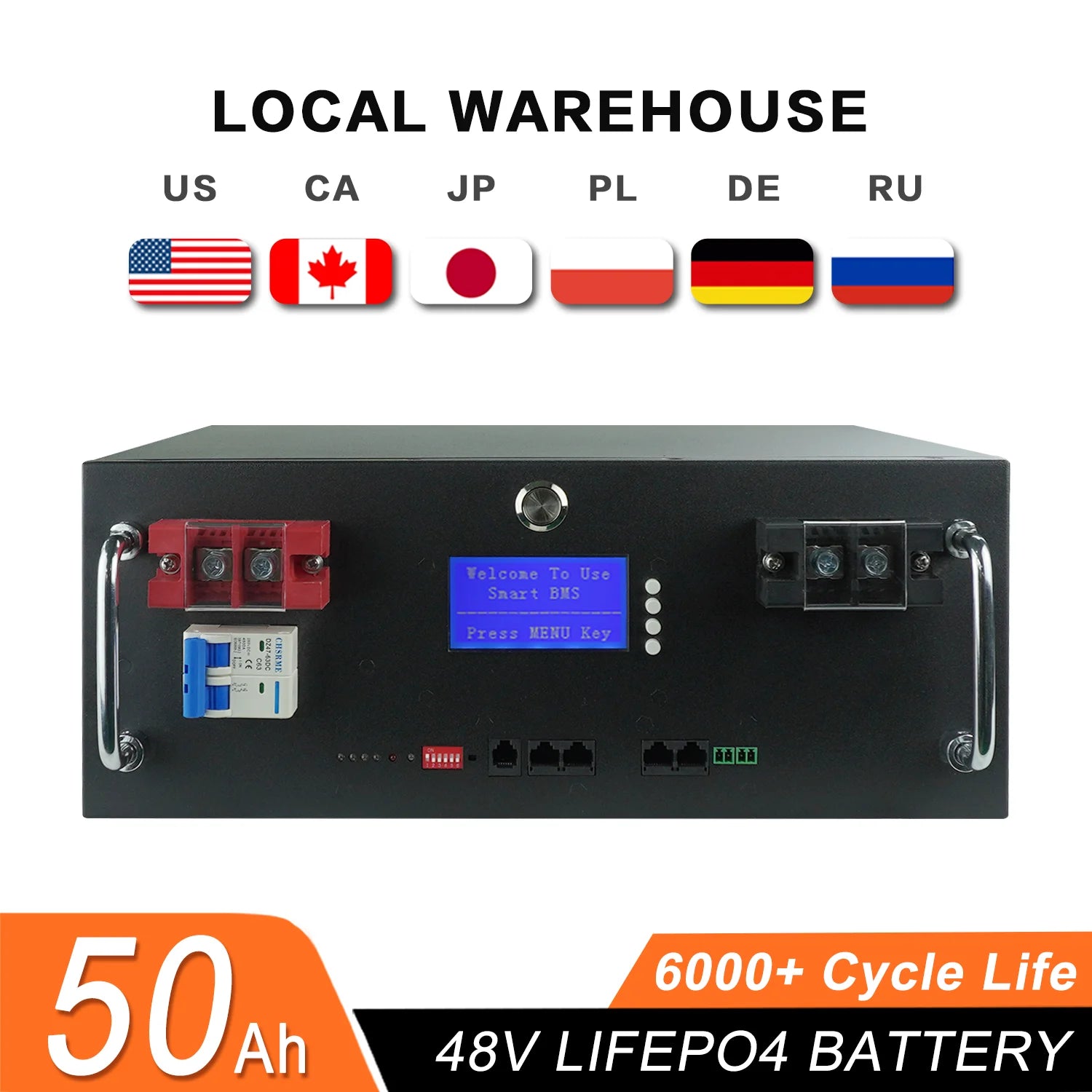

48V 50Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 2560Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 390*350*150mm /
Weight: Approx. 30kg
Terminal Type: Dual M6

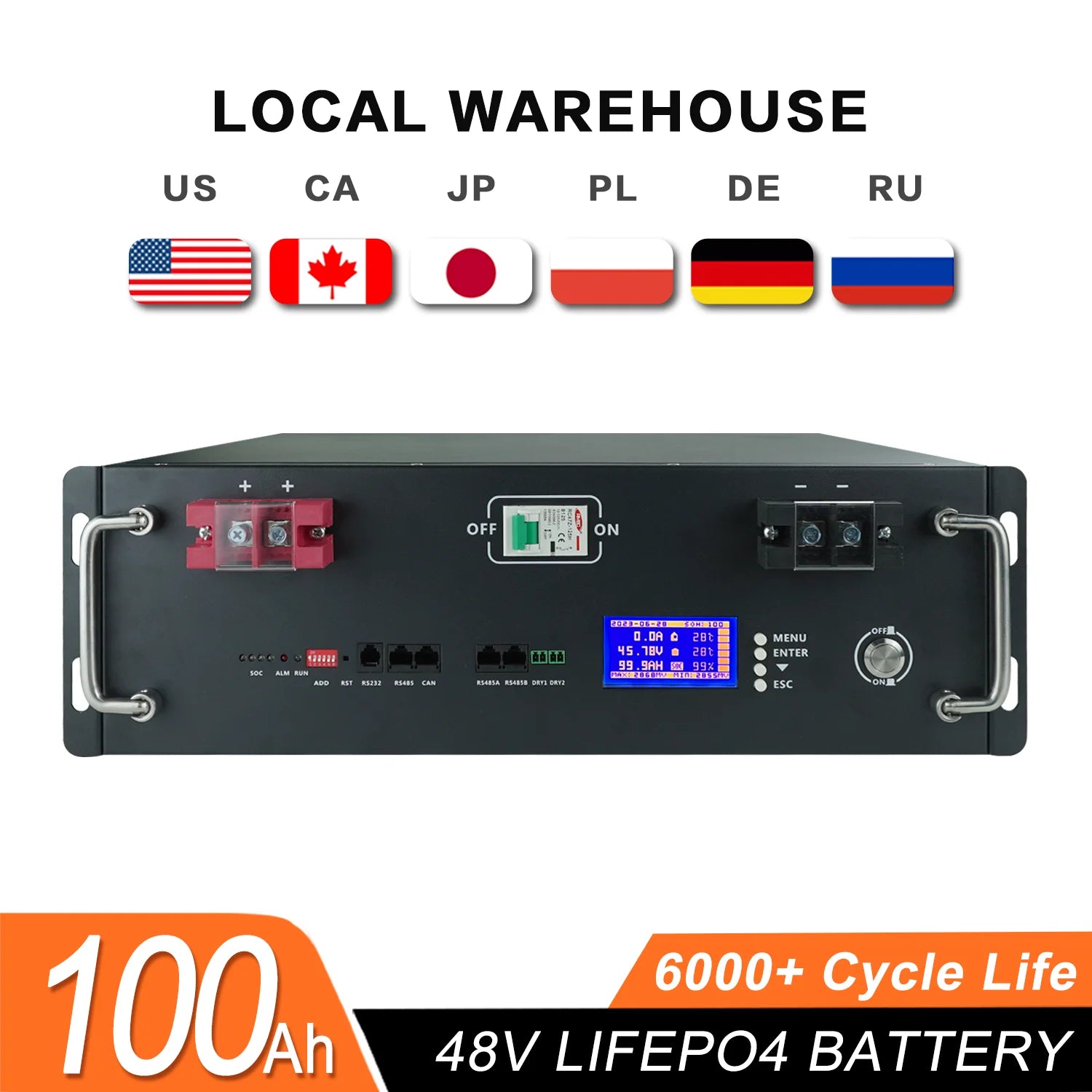

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: Dual M6

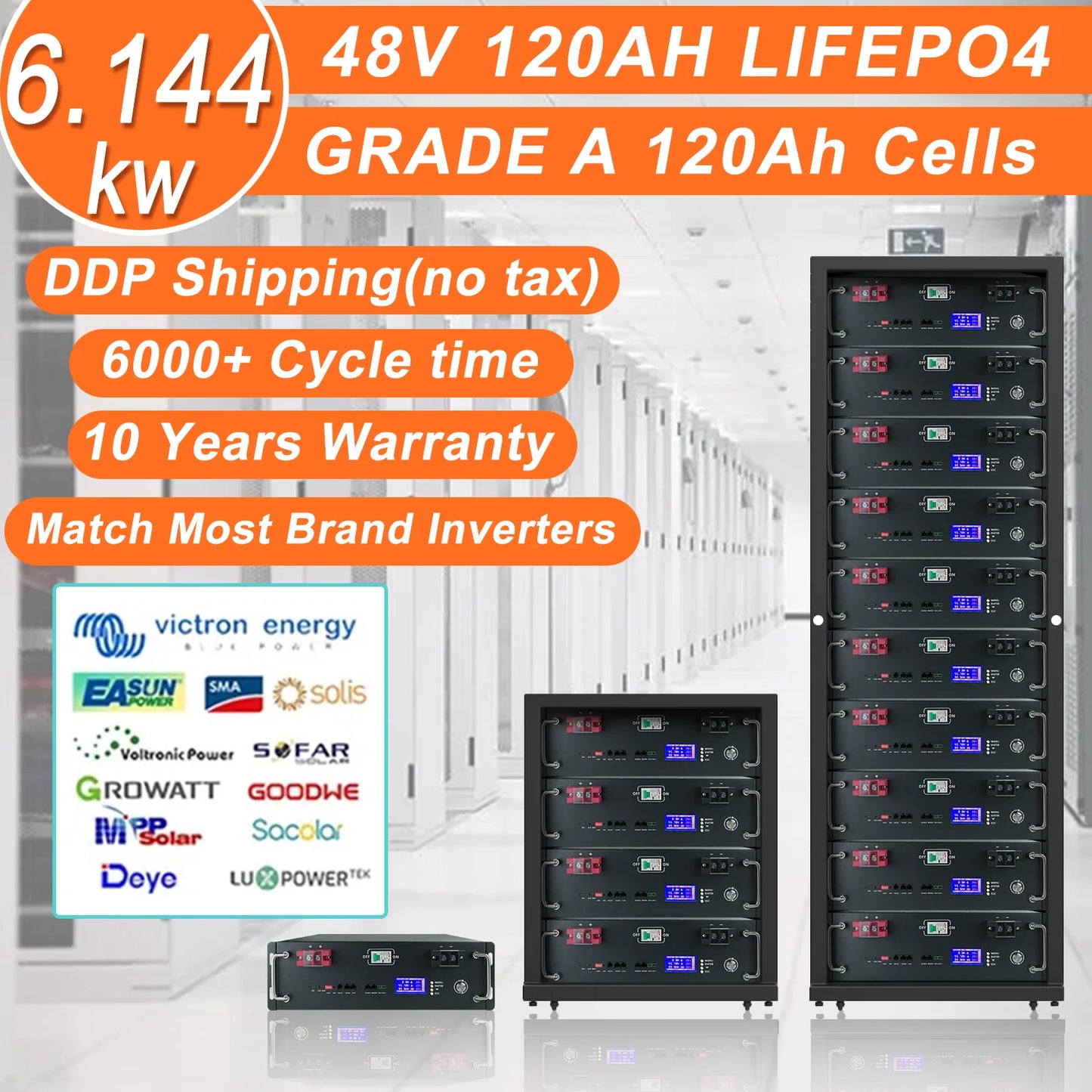

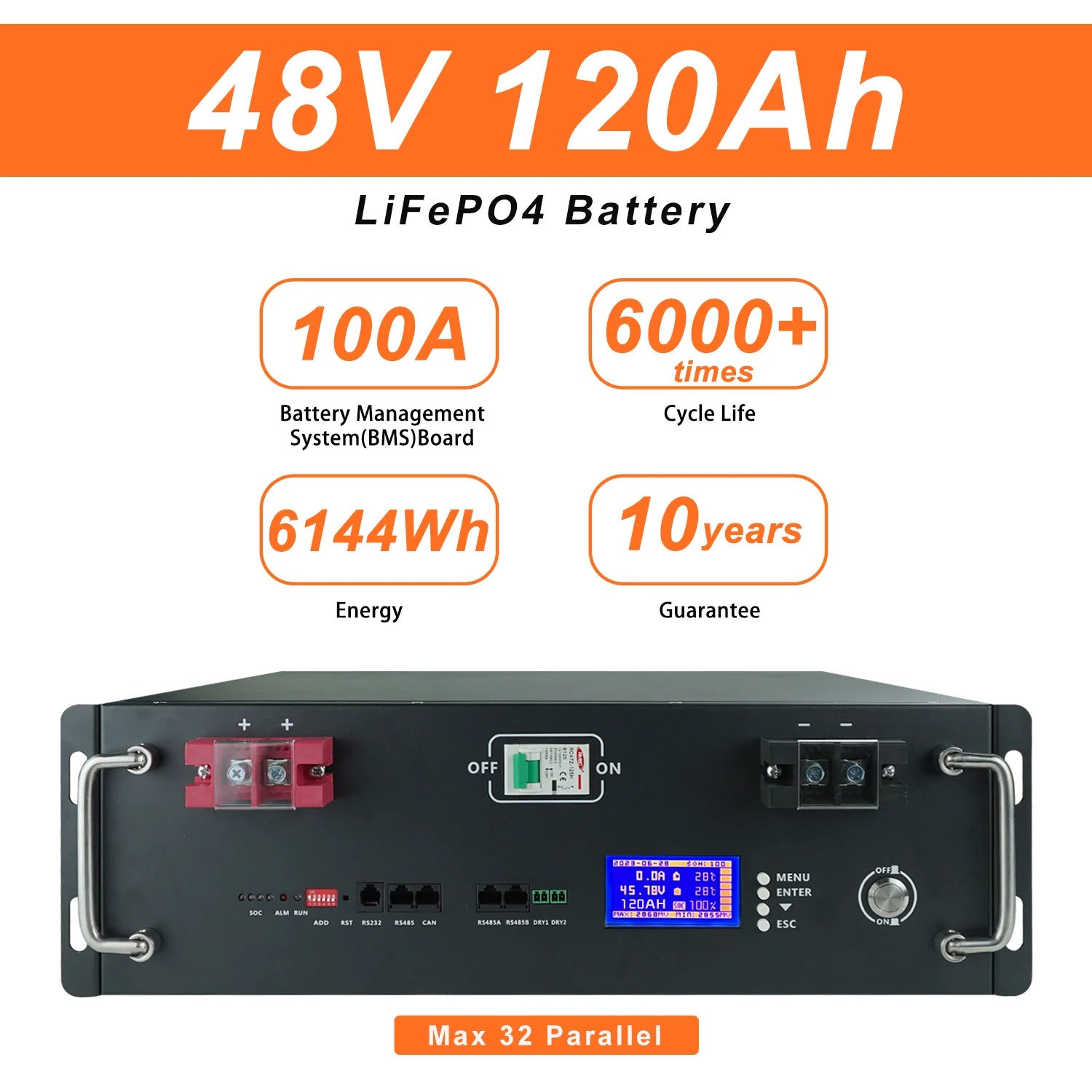

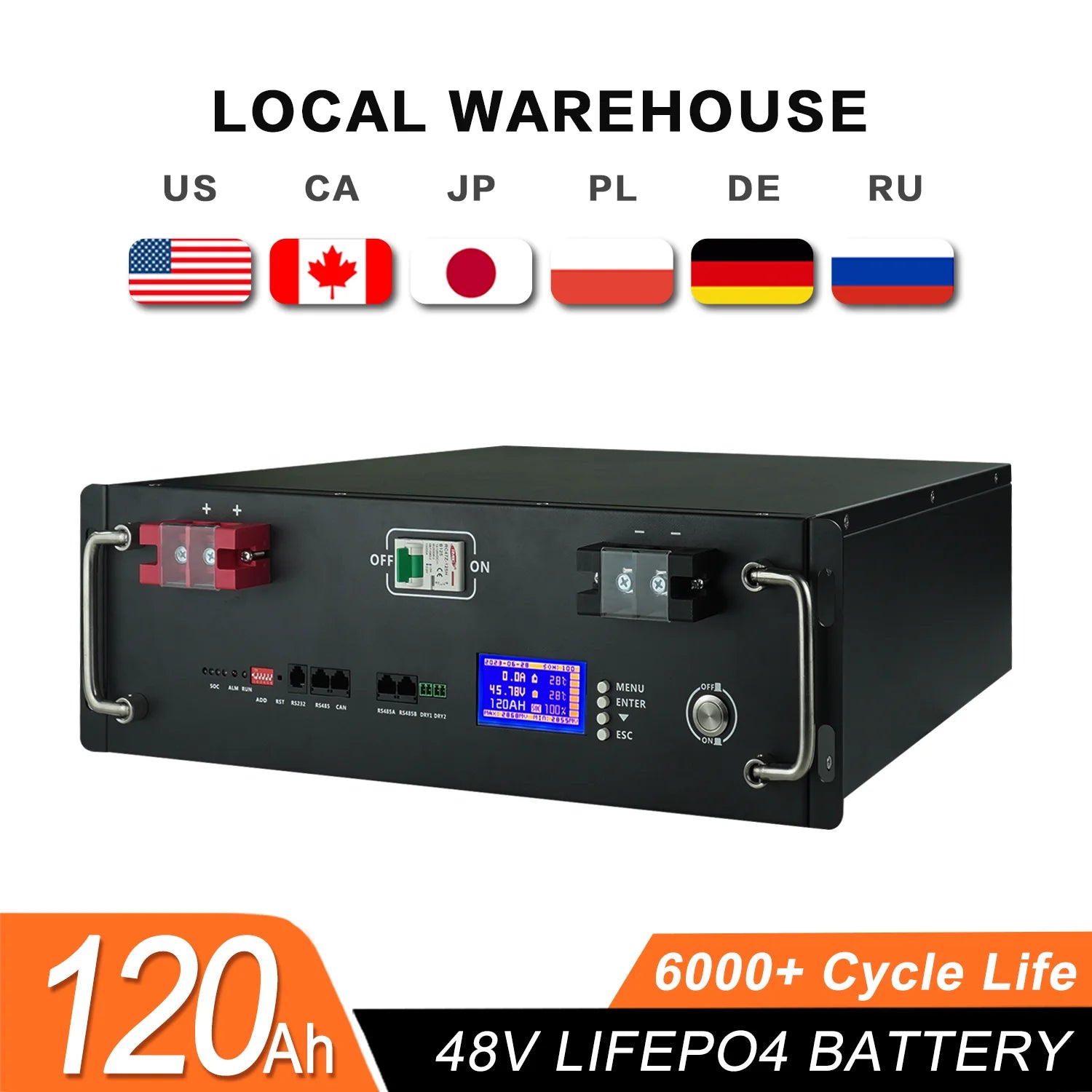

48V 120Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 44kg
Terminal Type: Dual M6

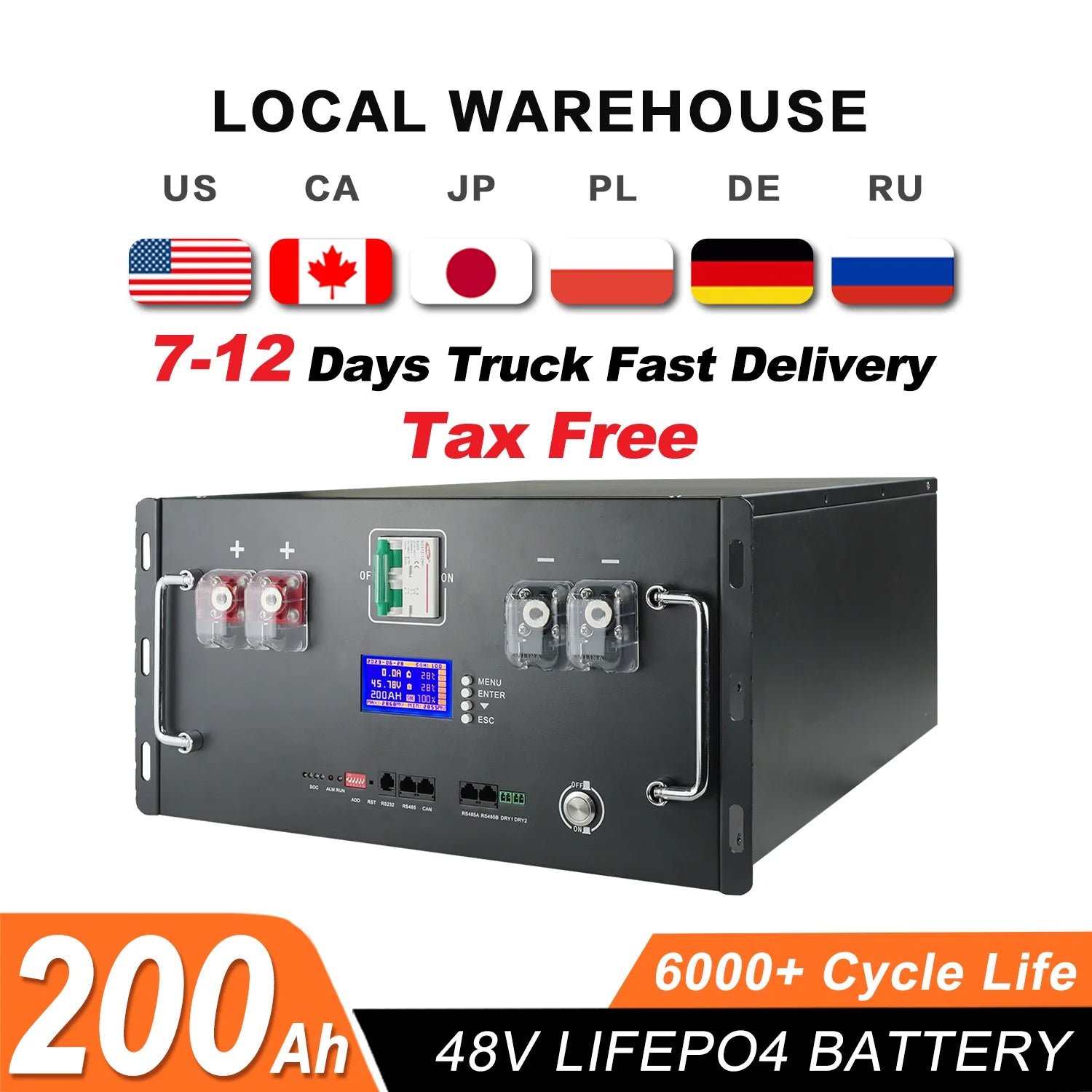

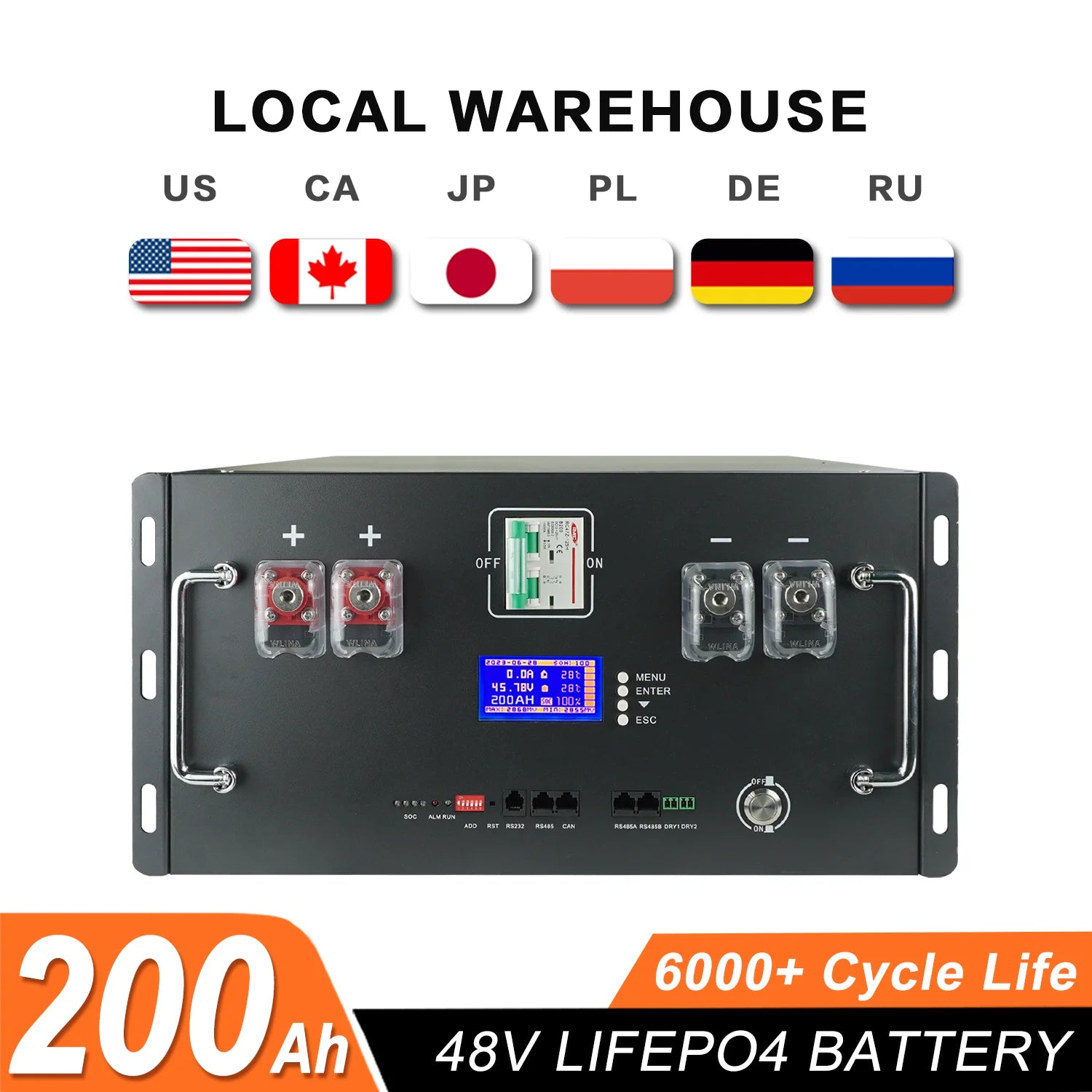

48V 200Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm /
Weight: Approx. 90kg
Terminal Type: Dual M6

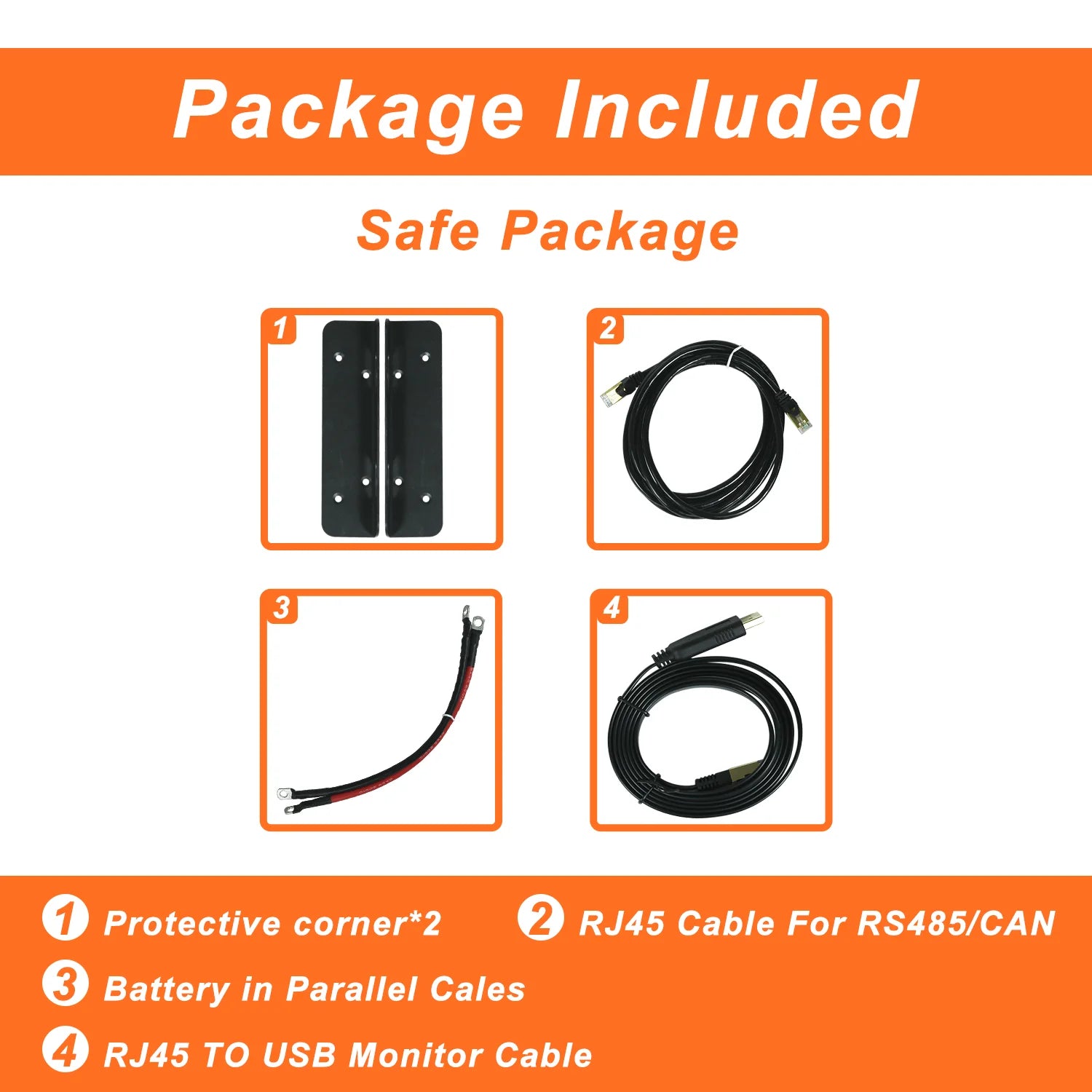

Package Included

1.protective corner*2
2.RJ45 Cable for RS485/CAN
3.Battery in Parallel Cables
4.RJ45 TO USB Monitor Cable

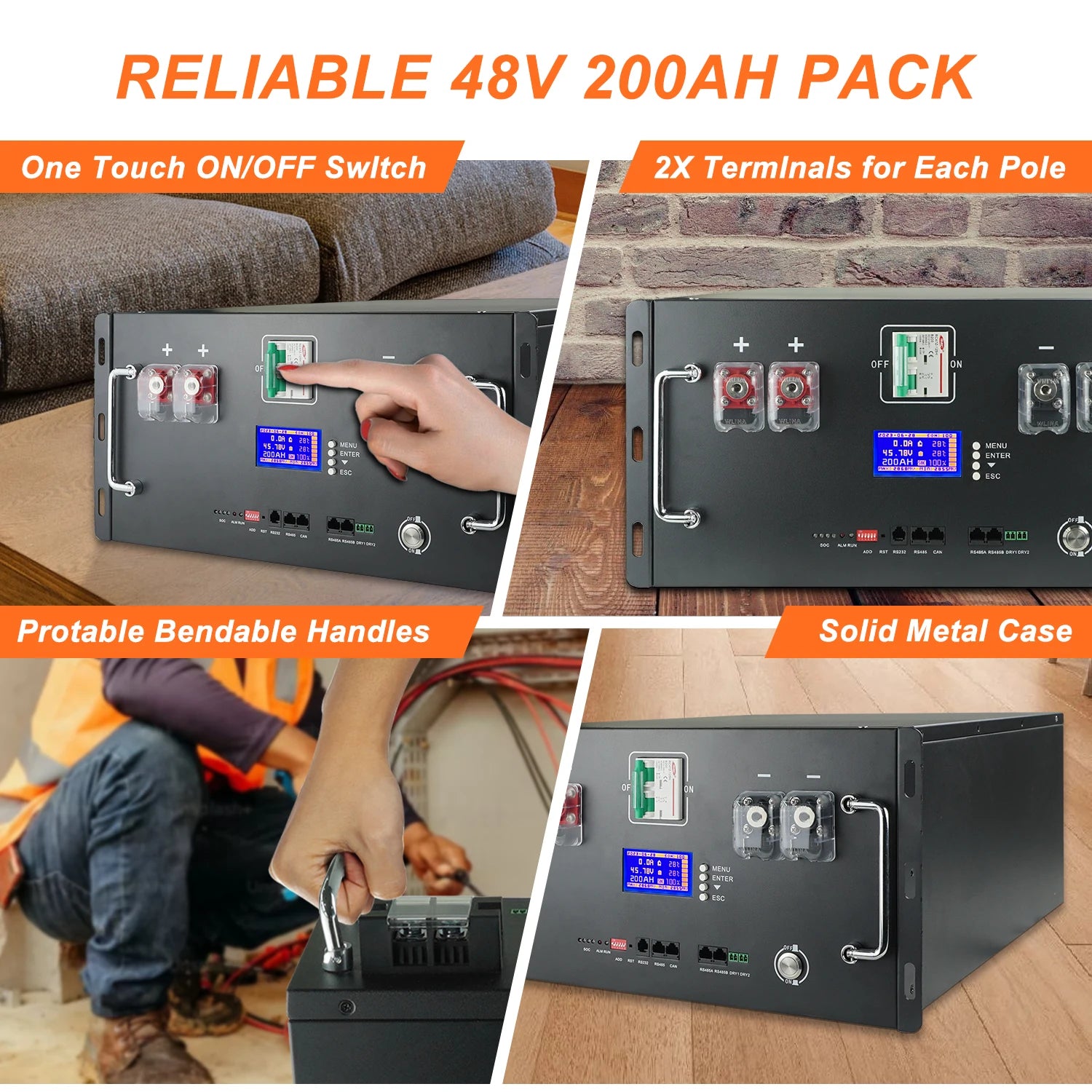

RELIABLE 48V 200AH PACK

1.One Touch ON/OFF Switch
2. 2X Terminals for Each Pole
3. Protable Bendable Handles
4.Solid Metal Case

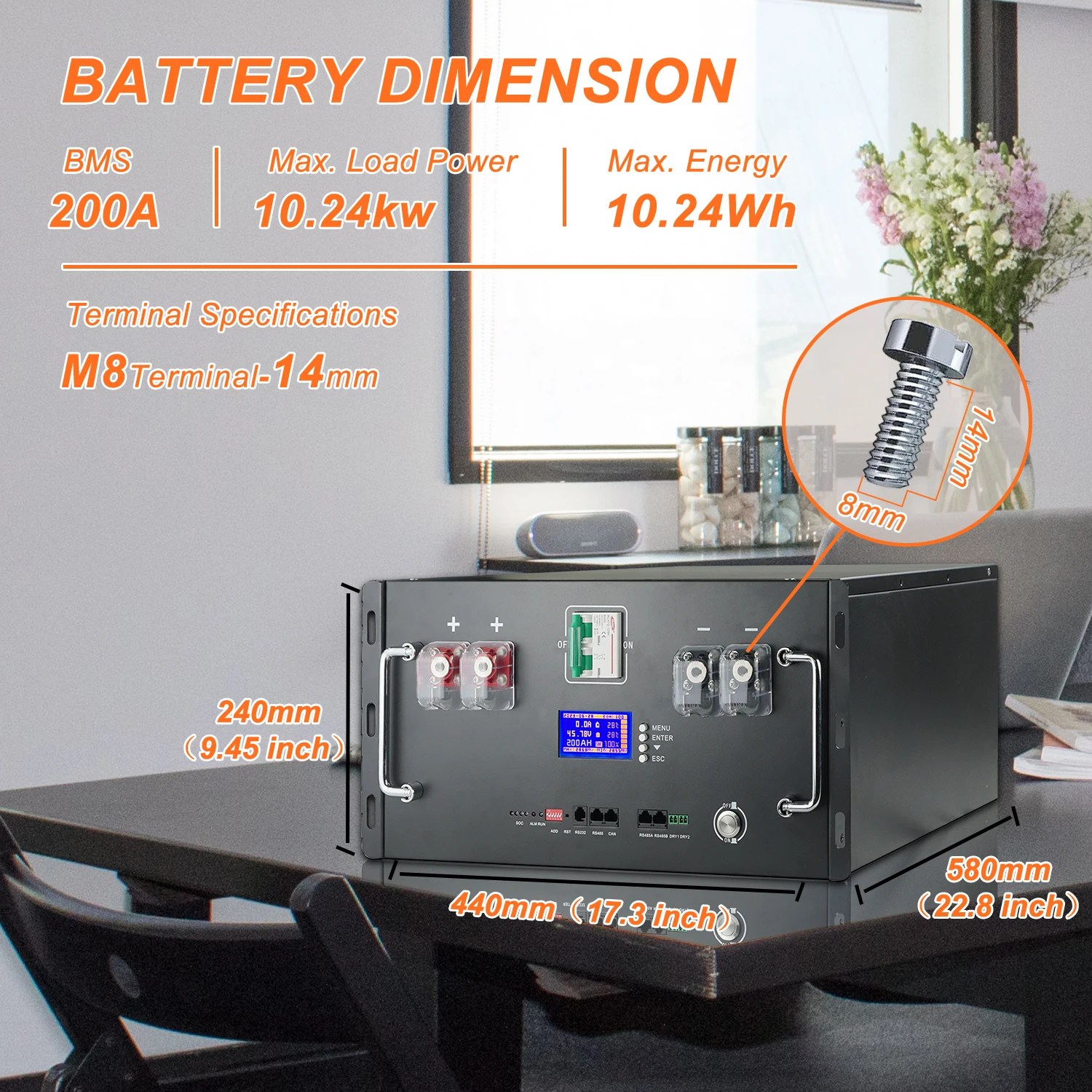

BATTERY DIMENSION

1. 16S200A Built-in BMS
2. Max Load Power 10.24kw
3. Max Energy 10.24kWh
4. 440mm*580mm*240mm

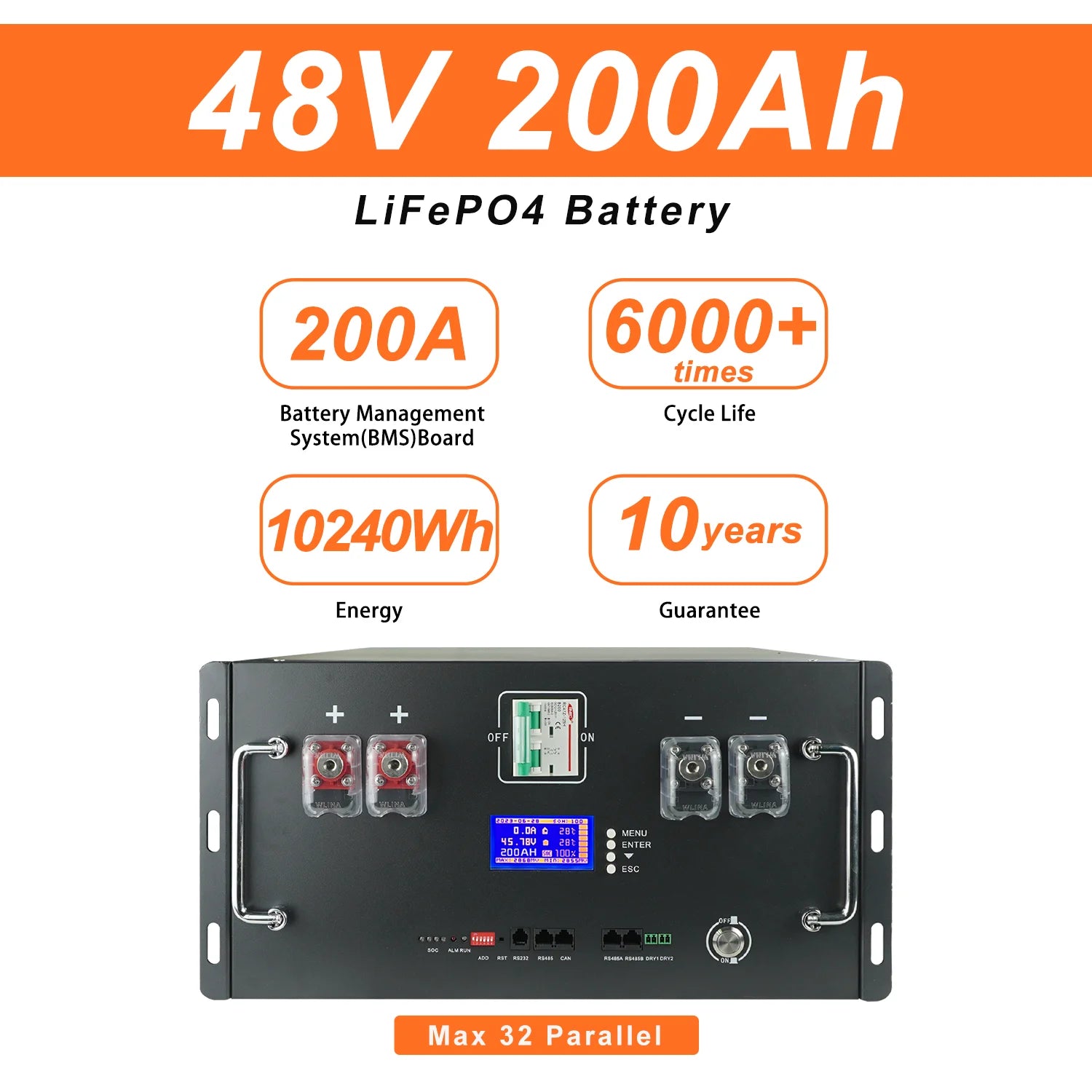

48V 200Ah Pack

With Smart 16S200A Built-in BMS
More 6000+ cycle times
10240Wh engergy
10 Years quality warranty

Made Of New Grade A Cells

Made of 16S1P 200Ah Grade A Prismatic Cells
More 6000+ cycle times
10240Wh engergy
10 Years quality warranty

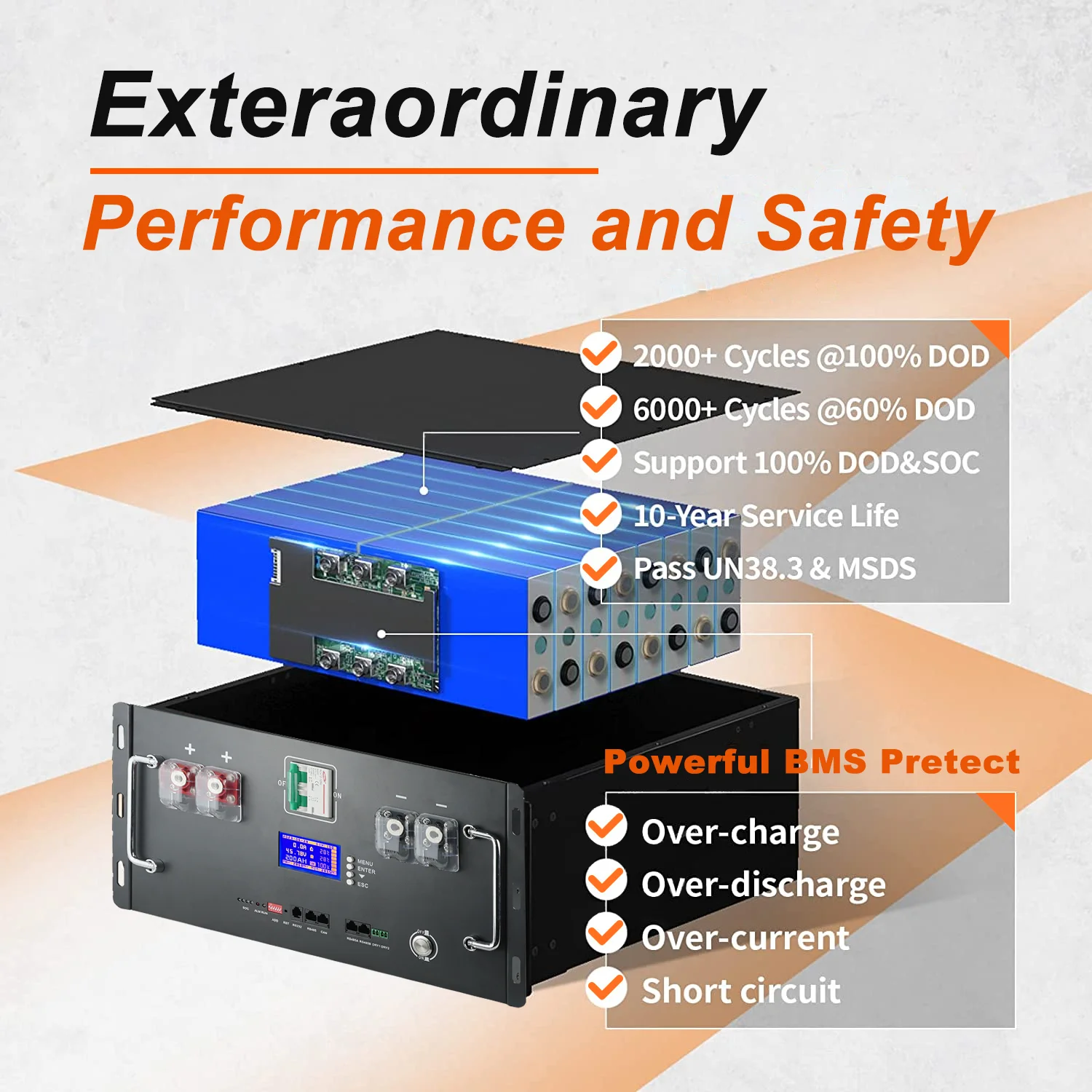

Compact & Safety

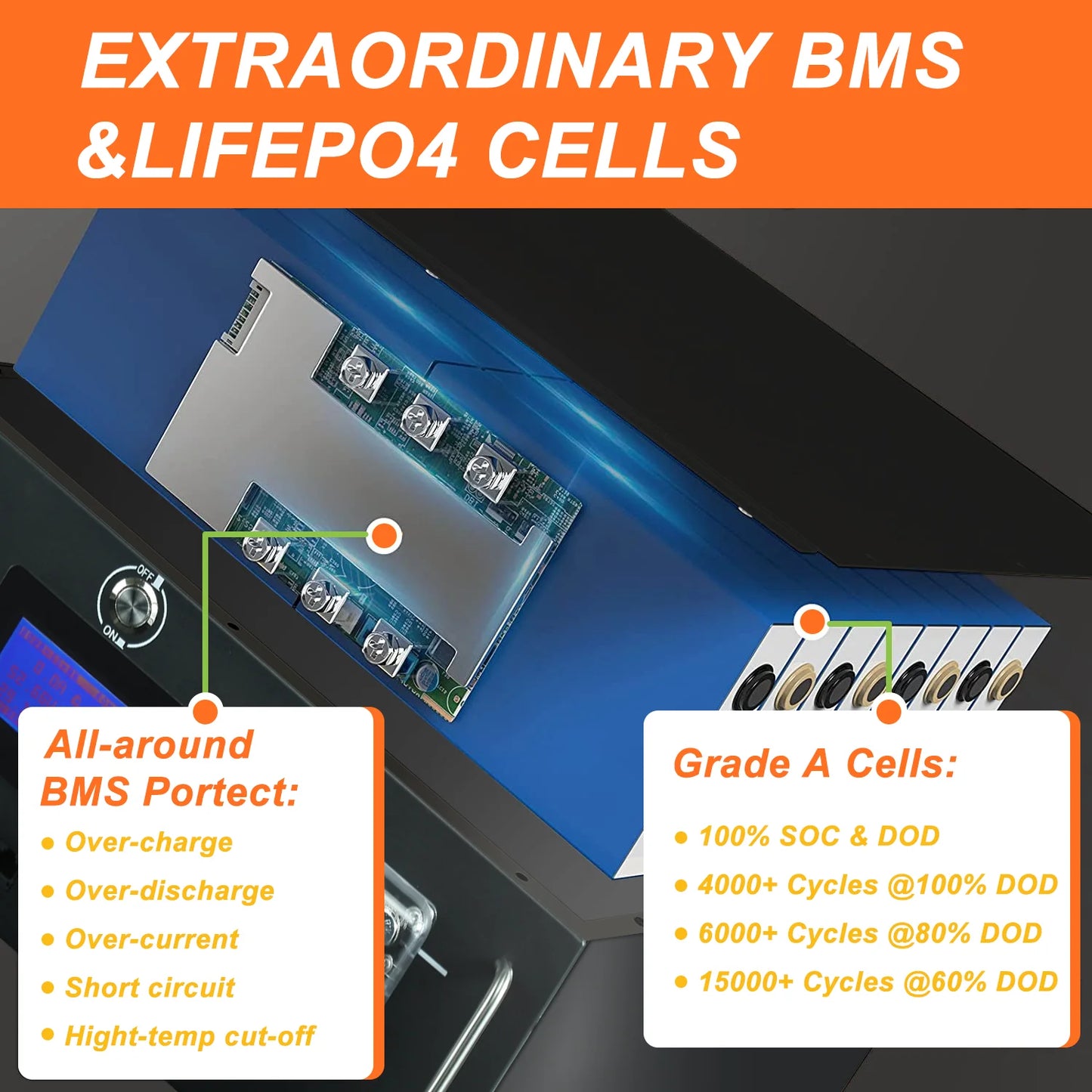

Powerful BMS Protect
overcharge protection
overdischarge protection
over-current
short circuit

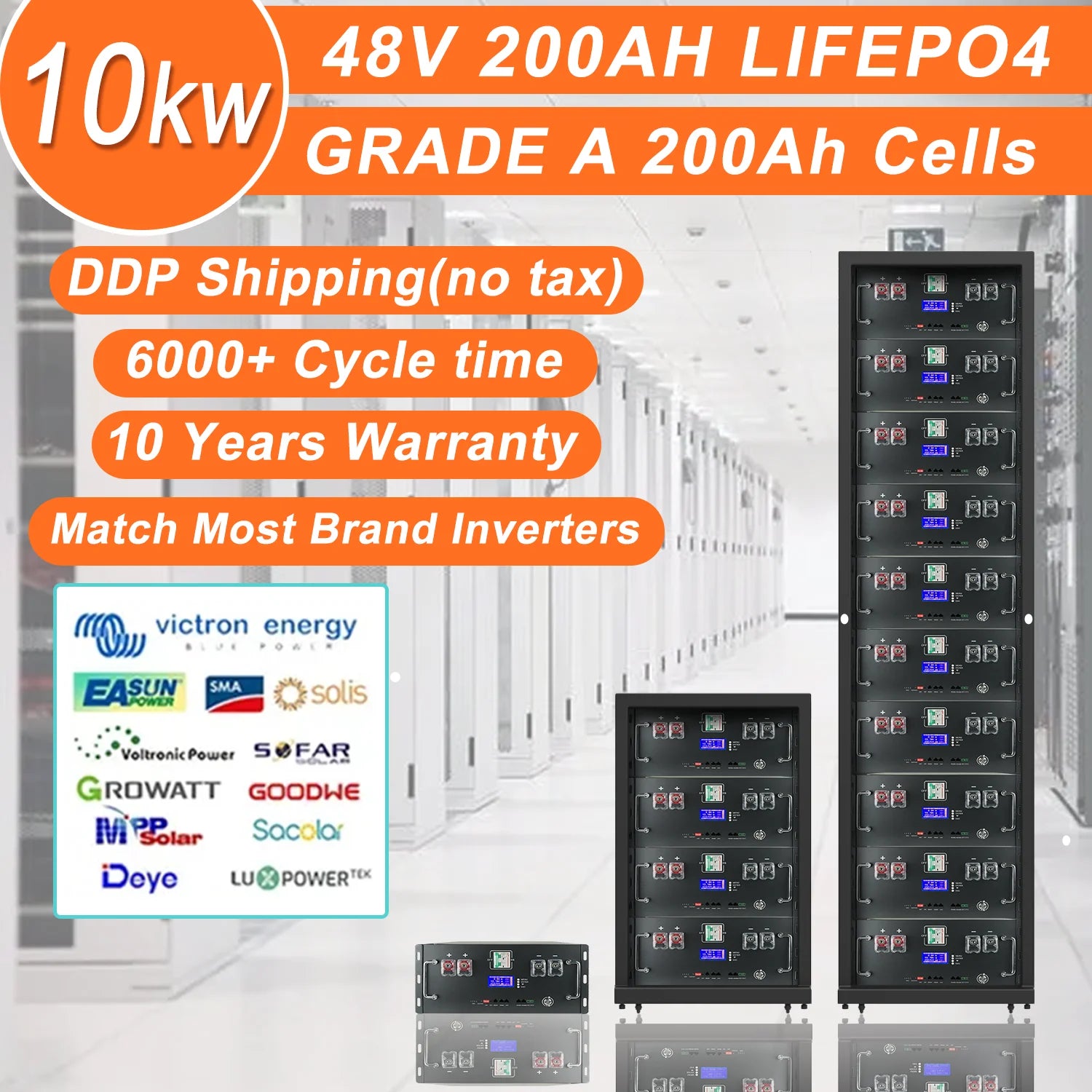

Match Most Brand Hybrid Inverters

Match Most Brand Hybrid Inverters.
If you need communication with your inverter,you can contact our customer service before purchasing

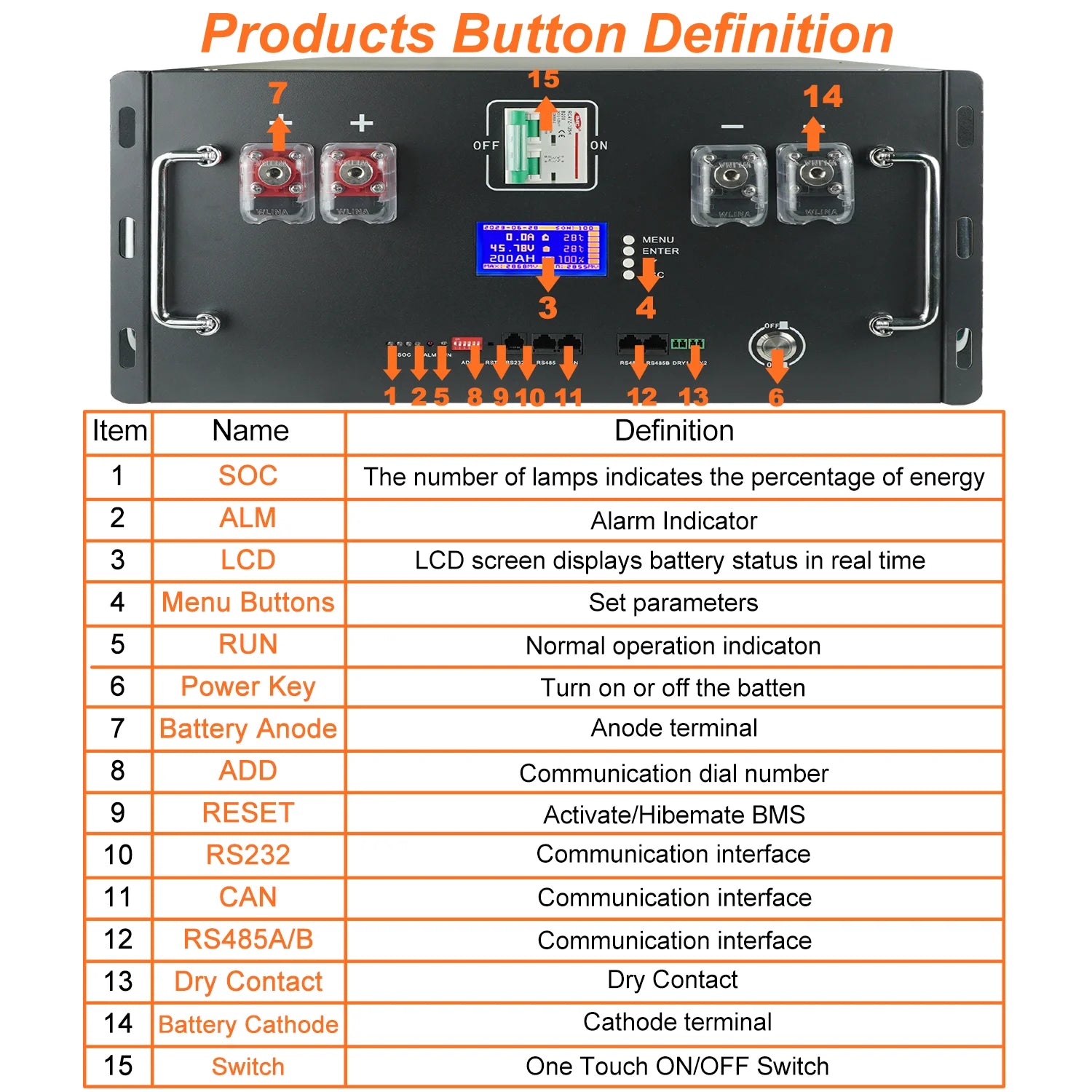

Products Button Definition

1.Soc-The number of lamps indicates the percentage of energy
2..ALM-Alarm Indicator
3.LCD-LCD screen displays battery status in real time
4.Menu Buttons-Set parameters
5.RUN-Normal operation indicaton
6.Power Key-Turn on or off the batten
7.Battery Anode-Anode terminal
8.ADD-Communication dial number
9.RESET-Activate/Hibemate BMS
10.Rs232-Communication interface
11.CAN-Communication interface
12.RS485A/B-Communication interface
13.Dry Contact-Dry Contact
14.Battery Cathode-Cathode terminal
15. Switch_One touch ON/OFF Switch

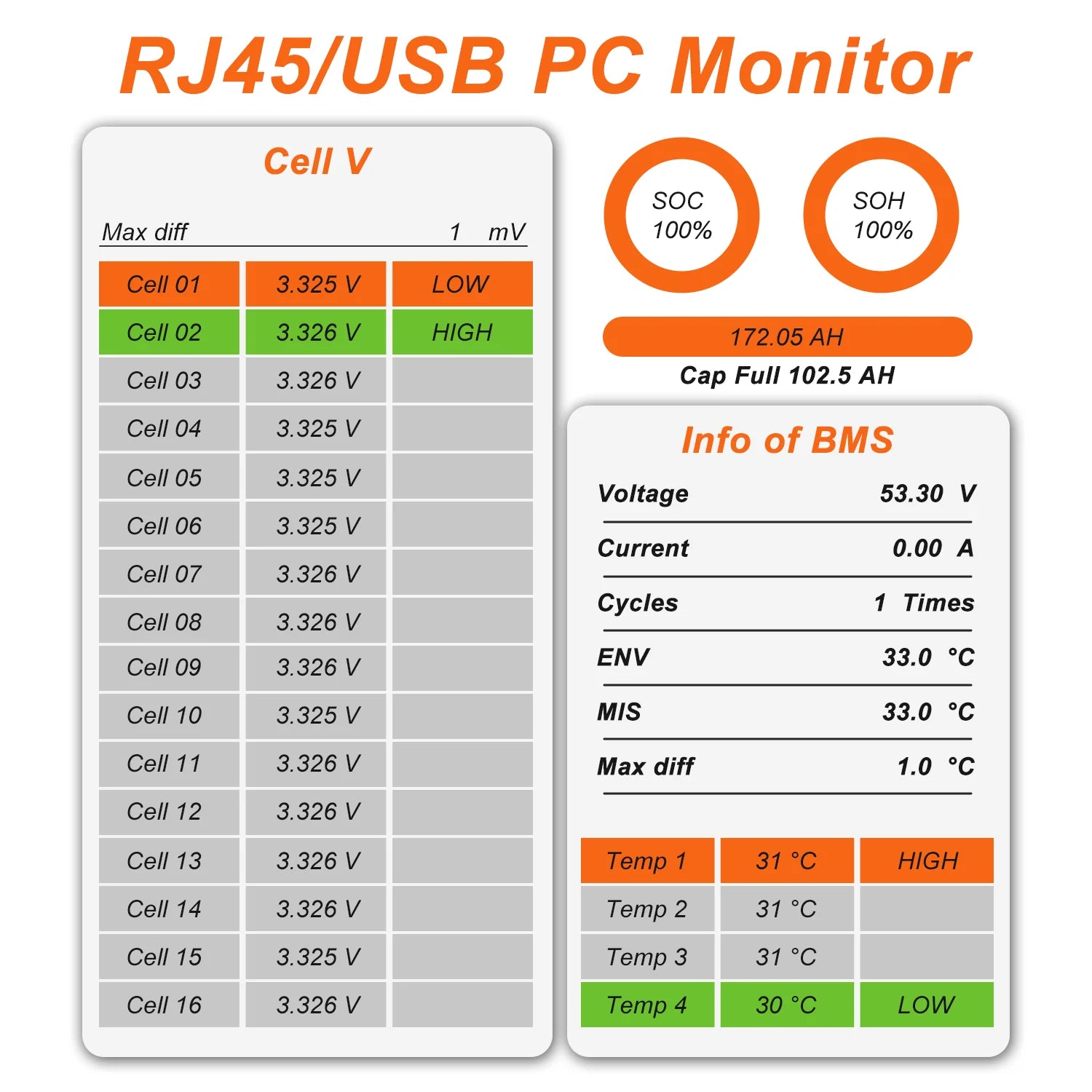

RJ45/USB PC Monitor

Support conntact with PC monitor

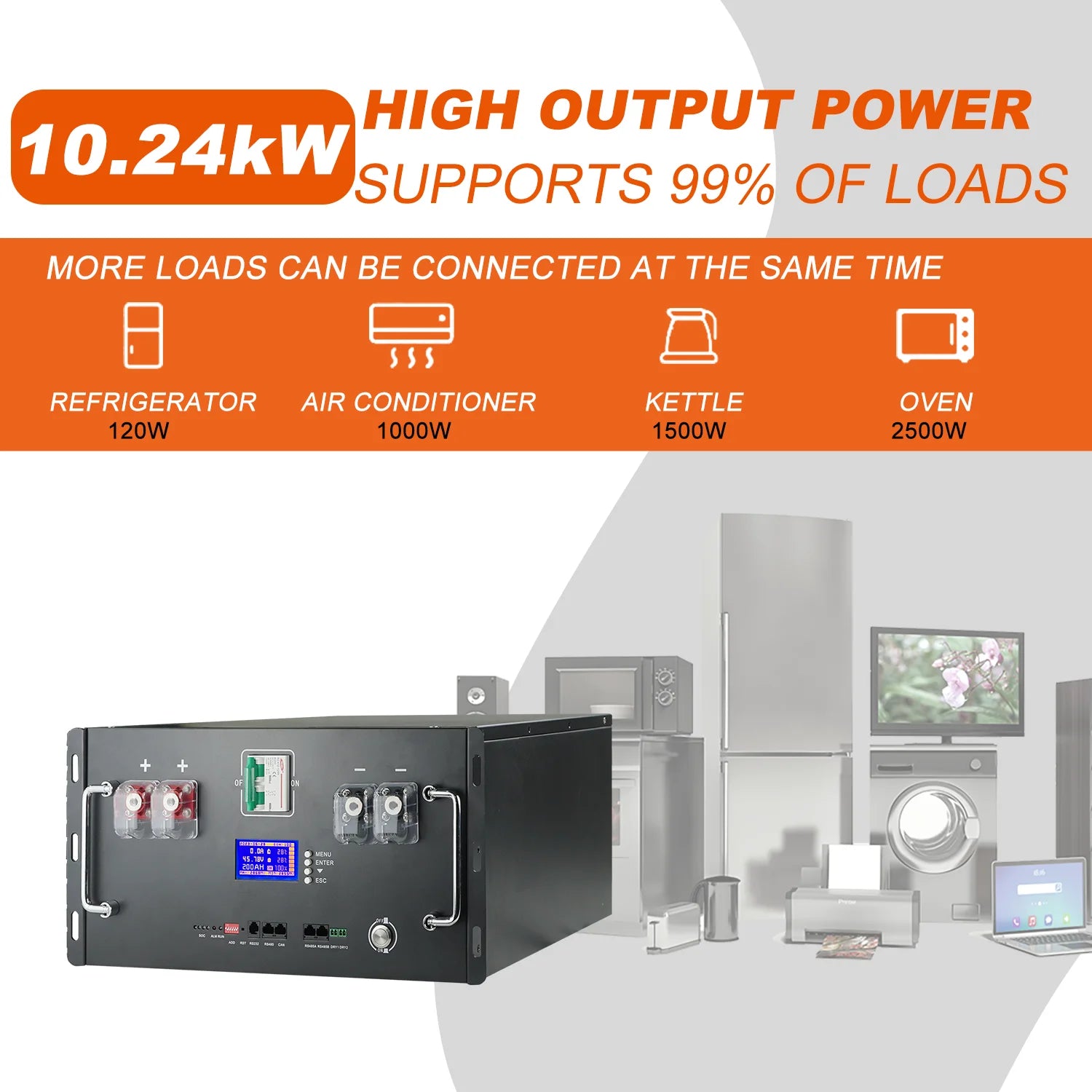

10240WH High Output Power

10240W High output power,support more loads can be connected at the same time

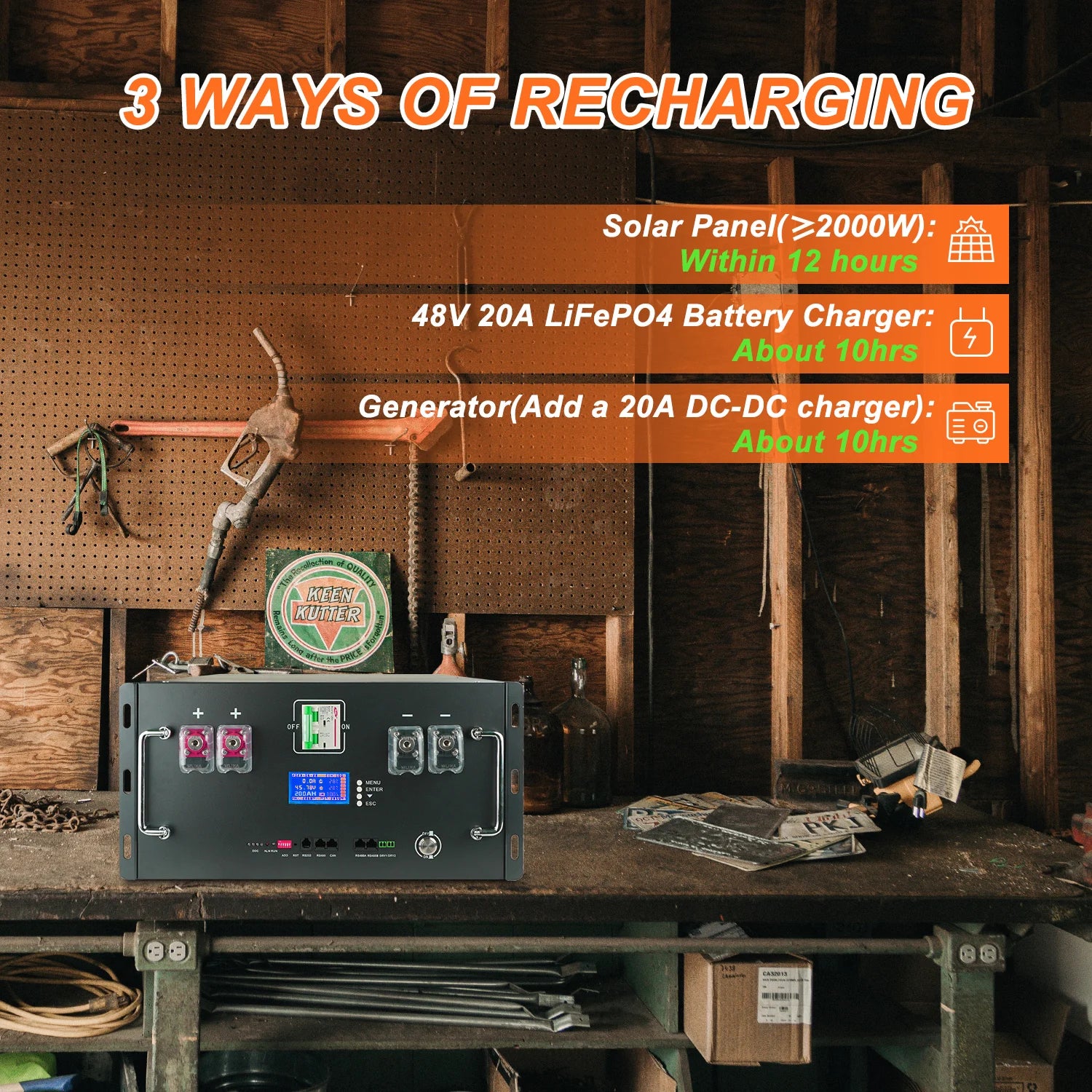

3 WAYS OF RECHARGEING

Solar Panel(≥2000w)-Within 1 day
48V 20A LiFePO4 Battery Charger-About 10hrs
Generator(Add a 20A DC-DC charger)-About 10hrs

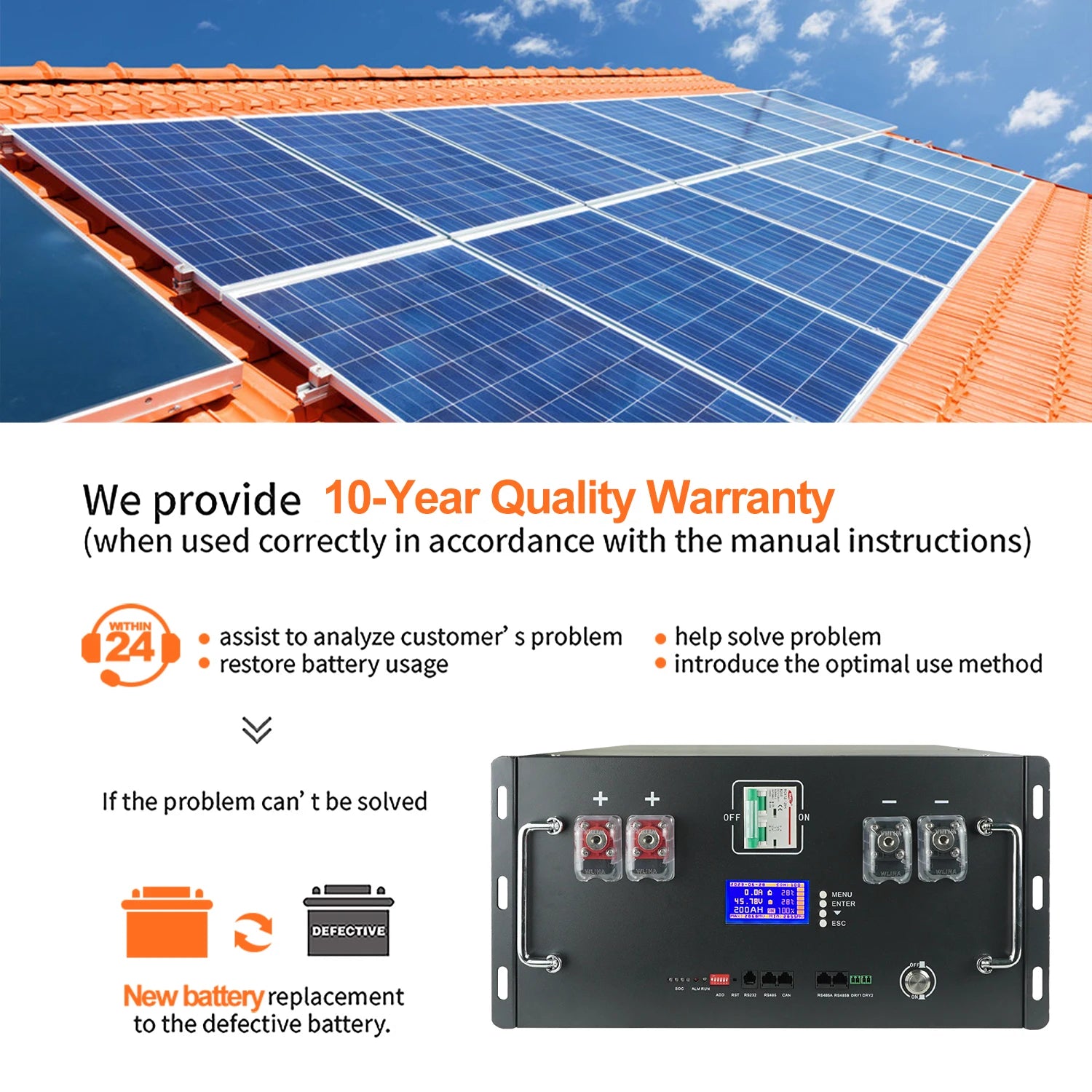

10 Years Quality Warranty

We provide 10-Years Quality Warranty
