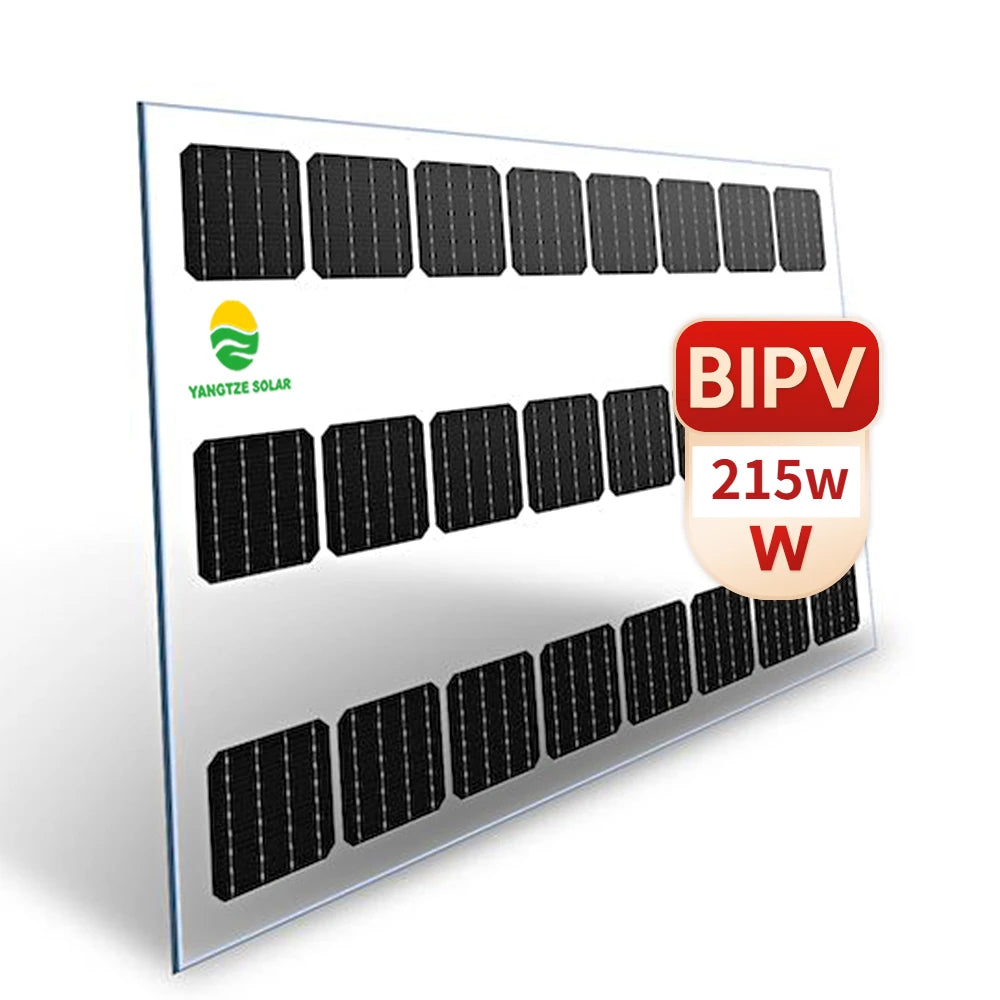

Solar Glass 215W
Solar Glass 215W
Prezzo di listino
€499,75 EUR
Prezzo di listino
Prezzo scontato
€499,75 EUR
Prezzo unitario
per
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Model Number: YS215M-BI
Material: Monocrystalline Silicon
Place of Origin: China
Panel Dimensions: 1979*1002mm
Panel Efficiency: 21.98%
Transparency: 40%
thickness: 4+4mm (8mm)
Product Description
Model Type
|
YS200M-BI
|
YS560M-72
|
YS300M-BI
|
YS580M-72
|
YS400M-BI
|
|||||
Rated Maximum Power at STC
|
200W
|
560W
|
300W
|
580W
|
400W
|
|||||
Maximum Power Voltage (Vmp)
|
28.5V
|
41.1V
|
33.2V
|
41.5V
|
34.82V
|
|||||
Maximum Power Current (Imp)
|
7.02A
|
13.63A
|
9.03A
|
13.98A
|
11.49A
|
|||||
Open Circuit Voltage ( Voc)
|
35.63V
|
49.72V
|
41.5V
|
49.91V
|
43.53V
|
|||||
Short Circuit Current (Isc)
|
7.51A
|
14.33A
|
9.69A
|
14.81A
|
12.64A
|
|||||
Module Efficiency
|
14.90%
|
21.72%
|
18.44%
|
22.49%
|
21.98%
|
|||||
Working Conditions&Working Conditions
|
|
|
|
|
|
|||||
Glass Thickness
|
|
2mm 4mm 6mm 8mm 10mm 12mm
|
|
|
|
|||||
Transmittance
|
|
10% 20% 30% 40% 50% 60% 70% 80%
|
|
|
|
|||||
Operating Temperature
|
|
-40°c~+85°c
|
|
|
|
|||||
Maximum System Voltage
|
|
DC 1000V(IEC) / 1500V(IEC)
|
|
|
|
|||||
Maximum Series Fuse
|
|
25A
|
|
|
|
|||||
Power Tolerance
|
|
0~+5W
|
|
|
|
|||||
Temperature Coefficient of Pmax
|
|
-0.35%/°c
|
|
|
|
|||||
Temperature Coefficient of Voc
|
|
-0.29%/°c
|
|
|
|
|||||
Temperature Coefficient of Isc
|
|
+0.048%/°c
|
|
|
|
|||||
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
|
|
|
|
|
|
|||||
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
|
|
|
|
|
|
Product Details

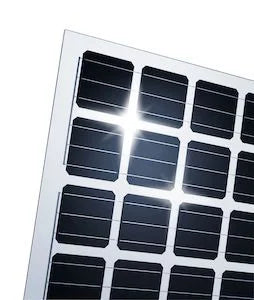

GLASS
Anti-reflective glass
Service life is as long as 25 years
Module efficiency is increased by 2%
Service life is as long as 25 years
Module efficiency is increased by 2%

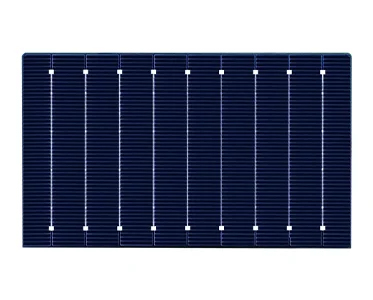

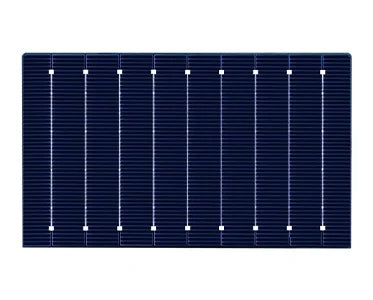

Solar Cell
tier 1,PERC/HJT/N Type/ TOPCON
technology,highest power,10% more watt than others

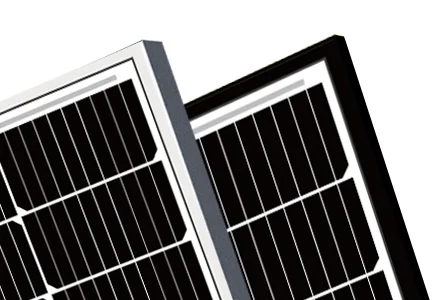

Frame or Frameless
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Black/Silver Color Optional
Junction Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional

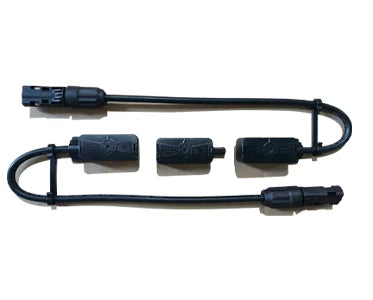

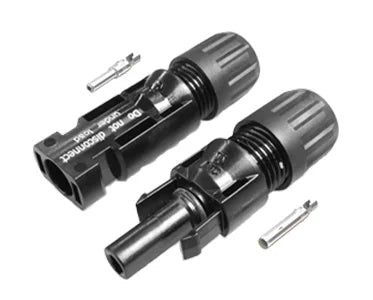

Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
500N Tensile Strength
Female/Male/Fuse

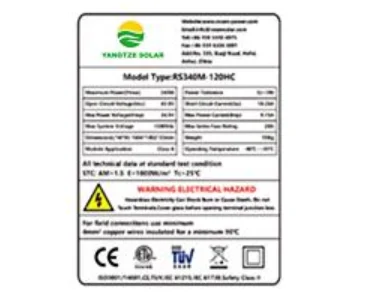

Label
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
OEM with your Logo
Professional Silver Color

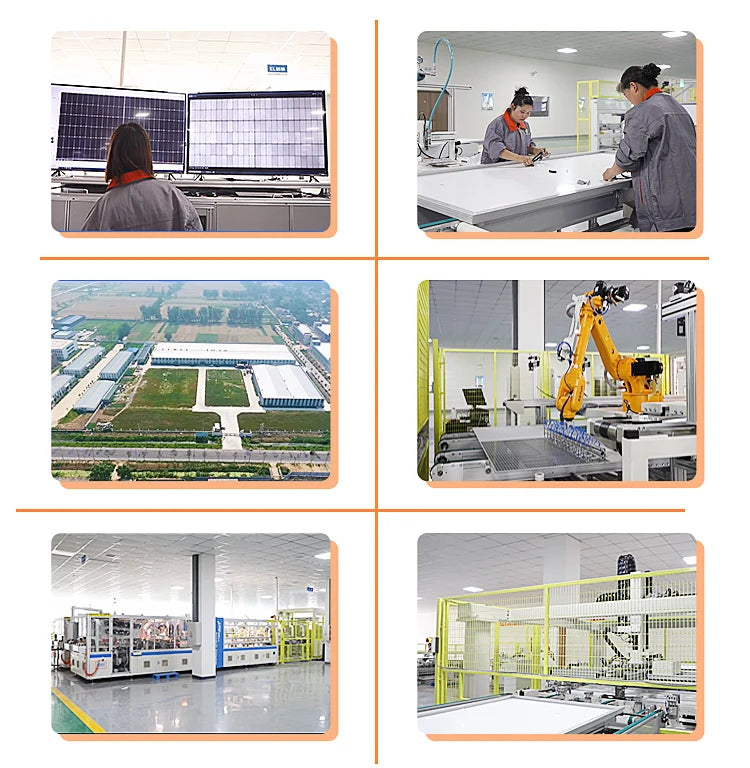

Our Factory

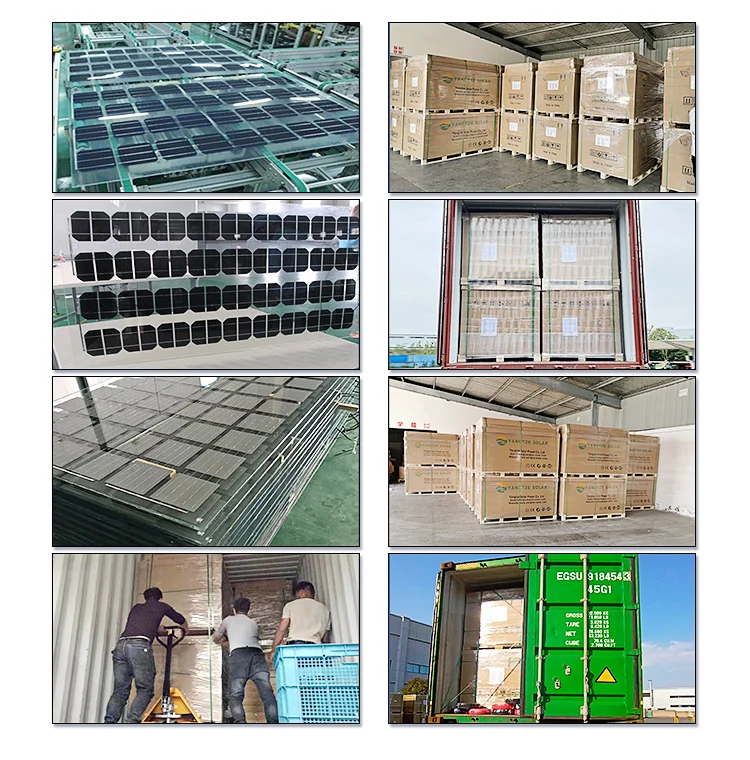

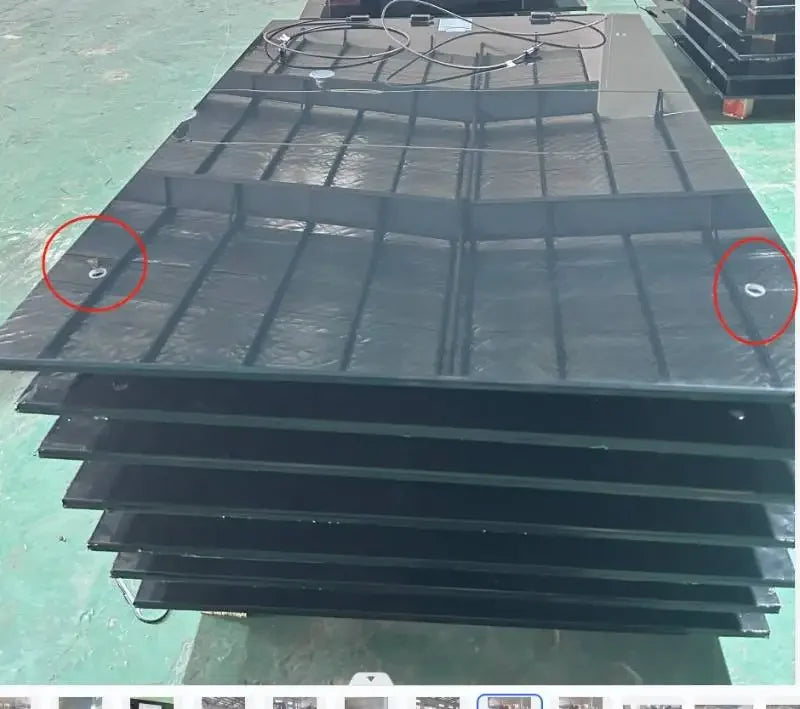

Packing & Delivery

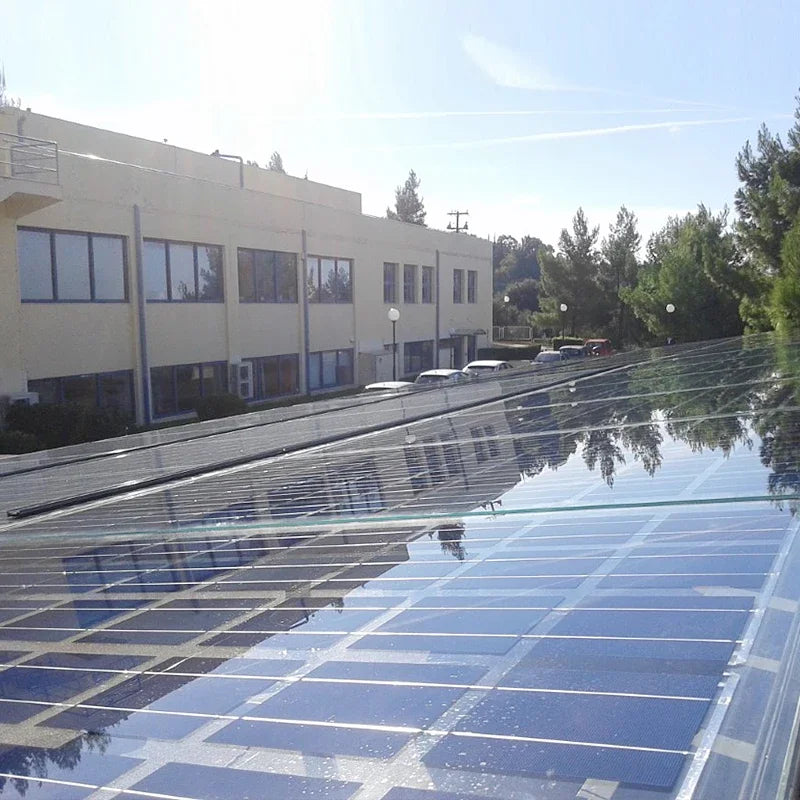

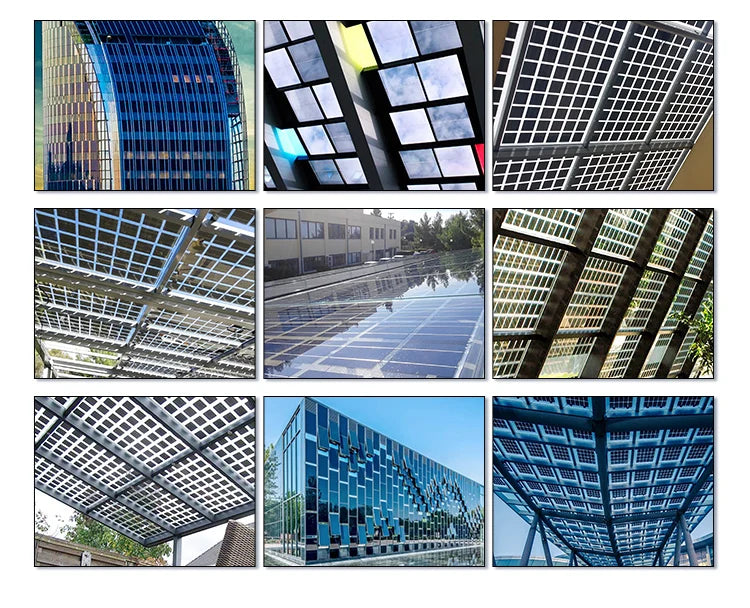

Project Case
Certifications
Exhibition & Customers

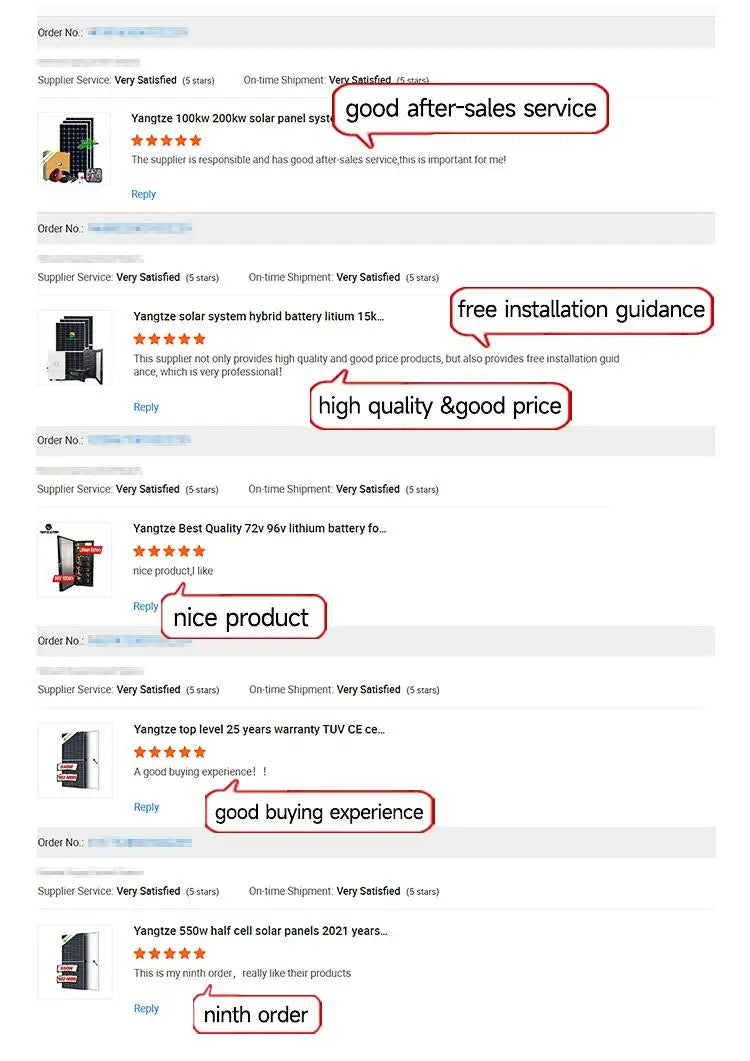

Feedback
