Solar Panels 100W

Solar Panels 100W

Regular price €300,00 EUR
Regular price Sale price €300,00 EUR
Sale Sold out
Taxes included.
Color
Ships From

SPECIFICATIONS

Brand Name: xinpuguang

Origin: Mainland China

Number of Panels: 1

Flexible Solar Panel: No

Foldable Solar Panel: No

Type: Solar Panel

Module Efficien: 24%

Model Number: Solar panel

Size: 105*53*2.5cm

Material: Monocrystalline Silicon

Nominal Capacity: 1000w /400w / 200w / 100w

Number of Cells: 36 pcs cell

Max. Power: 1000w /400w / 200w / 100w

is_customized: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

100W Solar Panel Open circuit voltage(Voc): 23.76V

100W Solar Panel Short circuit current(Isc): 5.55A

100W Solar Panel Maximum power voltage(Vmp): 19.8V

100W Solar Panel Maximum power current(Imp): 5.05A

Solar Panel: PET Solar Panel





XINPUGUANG 1000W 100 Watt 200W 400W Solar Panels 12V Monocrystalline Solar Panel Solar Module for RV Home Battery Charging Farm Trailer Camper Marine Off Grid System

This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing etc. Nice for both indoor and outdoor use. What are you waiting for? Just come and buy.

About this item

☀【Durable Solar Panel】XINPUGUANG 100 watt solar panels feature a black corrosion-resistant aluminum frame. It can also withstand strong winds of 2400Pa and Snowload of 3600Pa. Both the IP65 junction box and IP67 has an excellent waterproof function. Allows you to use it outdoors with confidence.

☀【Installation Friendly】Each 19.8V solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications.
☀【Lightweight】 this XINPUGUANG 100W solar panel is two-thirds lighter than ordinary glass solar panels. The surface of this solar panel is made of PET material.
☀【Long Warranty】As a professional solar system manufacturer, We promise an extra-long transferable power output warranty of 5 years. Whenever you encounter any problems, XINPUGUANG Solar Panels Service will actively provide you with professional off grid system solutions.

Features: Portable, small size, light weight, sturdy and durable, good quality

Convenient connection for charging various types of batteries

Solar panel backside with 0.9M cable















19.8V 100W Solar panel Specification:

Maximum power(Pmax) 100W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 23.76V

Short circuit current(Isc) 5.55 A

Maximum power voltage(Vmp) 19.8V

Maximum power current(Imp) 5.05A

Operating temperature(NOCT) 45±2℃

Temperature range -40℃~+80℃

Number of cells 36pcs

Size 1050*530*25 mm

Type PET Solar Panel

Weight 3210g

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Note: tempered glass

Features:

Solar energy, eco-friendly, energy inexhaustible, cost-saving and user-friendly.
High conversion monocrystalline solar panel for s-afe & endurable use.
Portable and compact design fit for both outdoor and indoor usage.
Rechargeable, no e-xtra wires and IP65 water resistance ensures it to be used in bad weather.
Perfect and s-afe to use in various applications, such as home, industrial, commercial etc.

Monocrystalline silicon solar panels

GRADE A MONOCRYSTALLINE SOLAR CELLS

Monocrystalline solar cells are made from a single piece of silicon. They offer an efficiency boost over polycrystalline which uses multiple silicon crystals poured and set together. Grade A cells are the highest quality and offer the best efficiency.

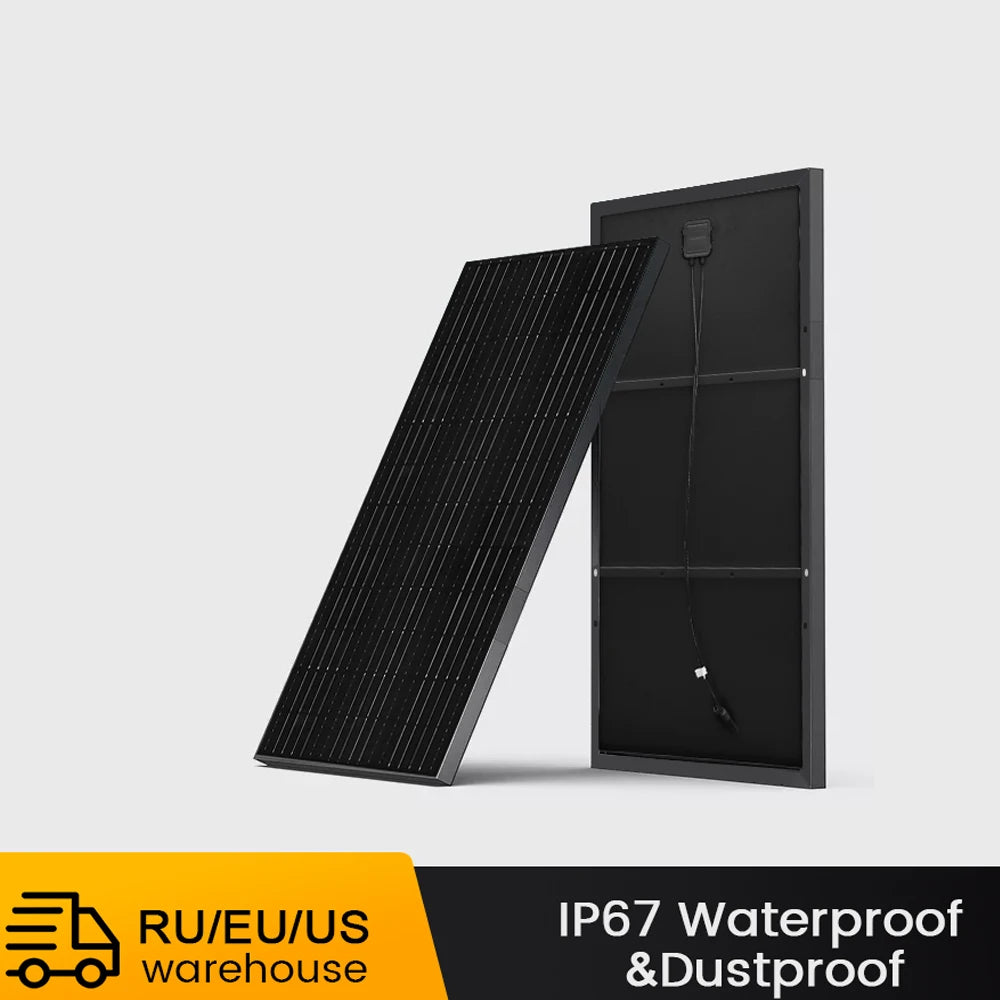

Solar panel waterproof rating IP67

Internal structure of solar panels

High gloss quality tempered glass.

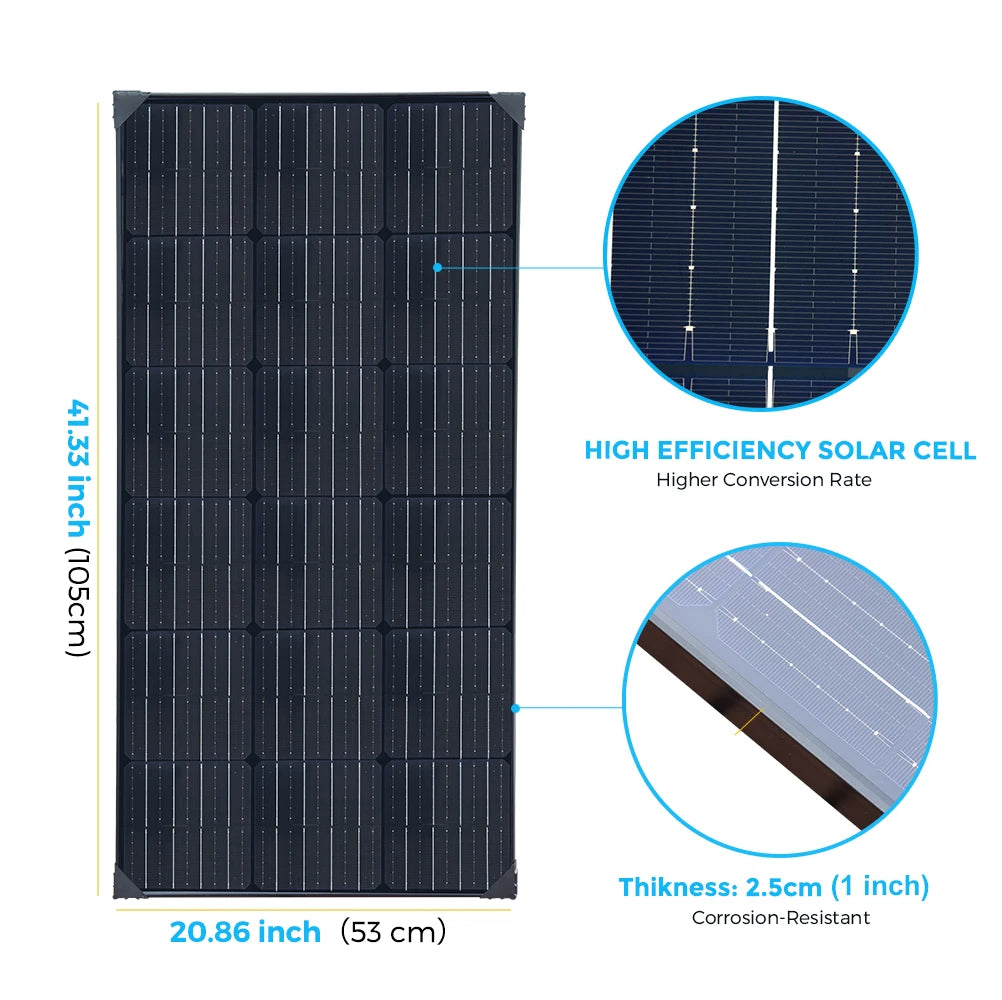

COMPACT SIZE, HIGH OUTPUT


Measuring in at 1050mm x 530mm x 25mm, the 100W Solar Panel is able to output up to 5.05A and 19.8V at its maximum power point.

Solar panel junction box with built-in diode

100W (1pcs 100W Solar Panel)

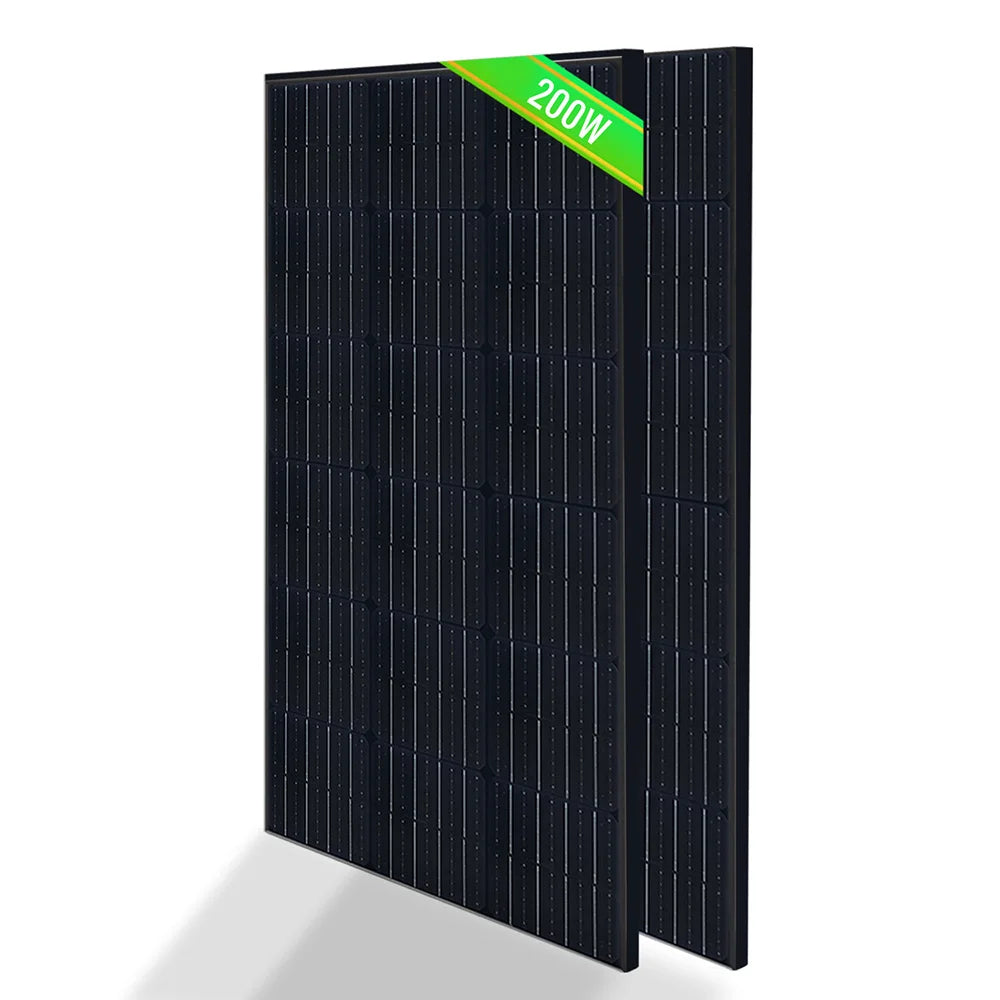

200W (2pcs 100W Solar Panel)

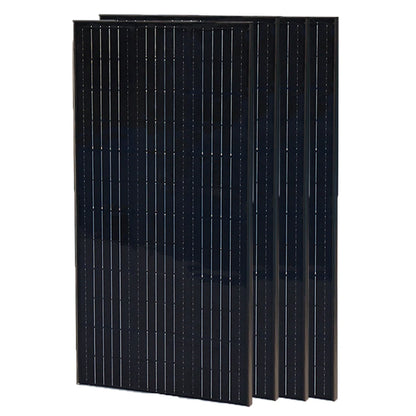

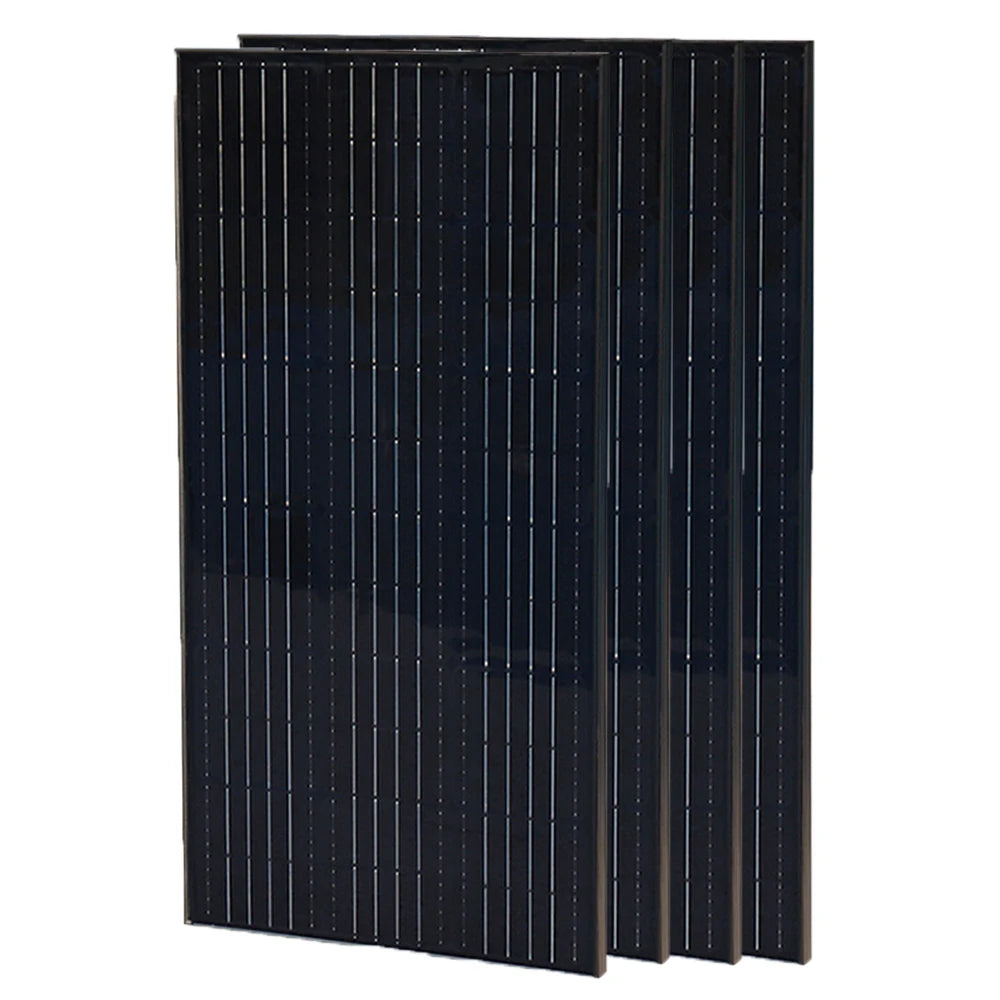

400W (4pcs 100W Solar Panel)

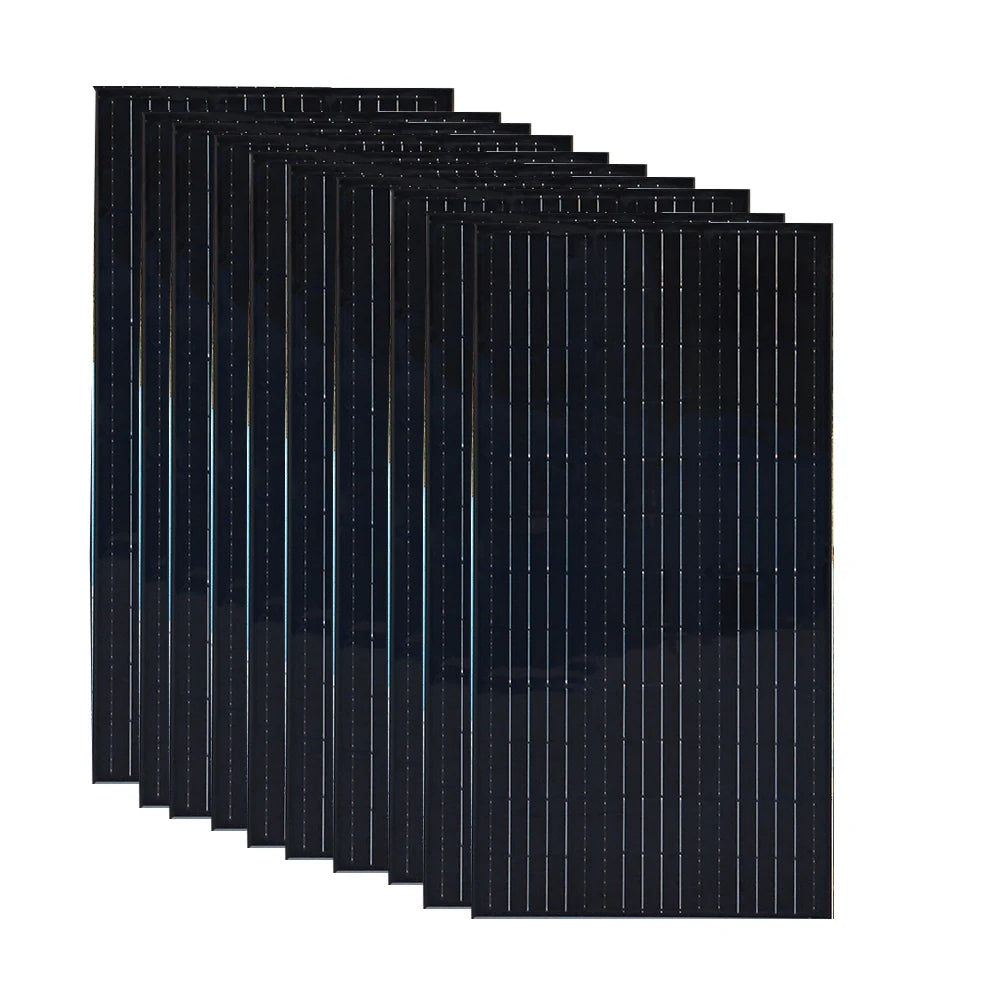

1000W (10pcs 100W Solar Panel)

TOUGH PERMANENT-MOUNT DESIGN

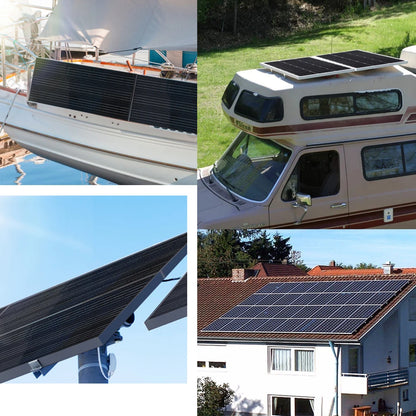

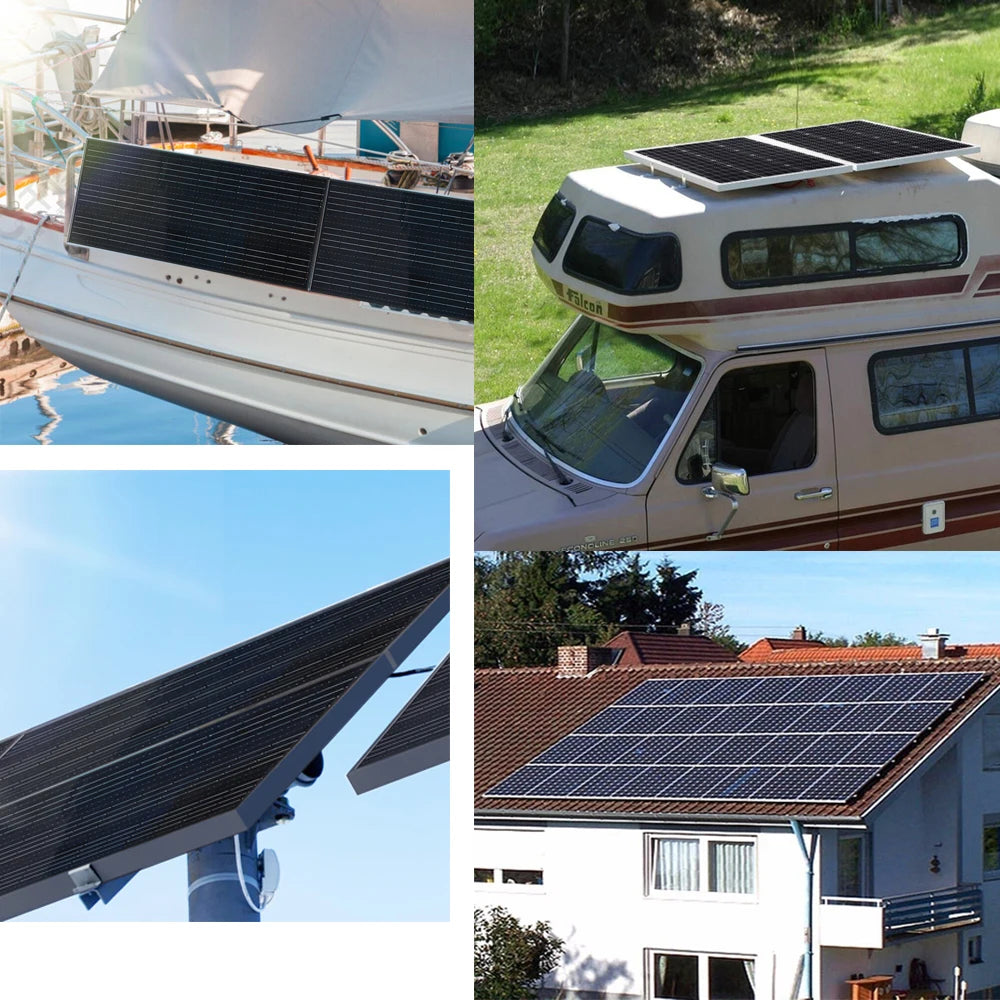

The XINPUGUANG 100W Solar Panel is the perfect compact sized Solar Panel to mount onto your 4WD, Camper Trailer, Caravan or even Boat!

THICK ALLOY FRAME AND TOUGH PROTECTIVE

Designed to be mounted almost anywhere, the 100W boasts a thicker and stronger frame than portable panels

ALL DAY, SO YOU CAN RELAX

Once installed, the XINPUGUANG 100W Fixed Solar Panel will be hard at work during the day charging your batteries and powering devices, giving you more time to kick your feet-up and relax.

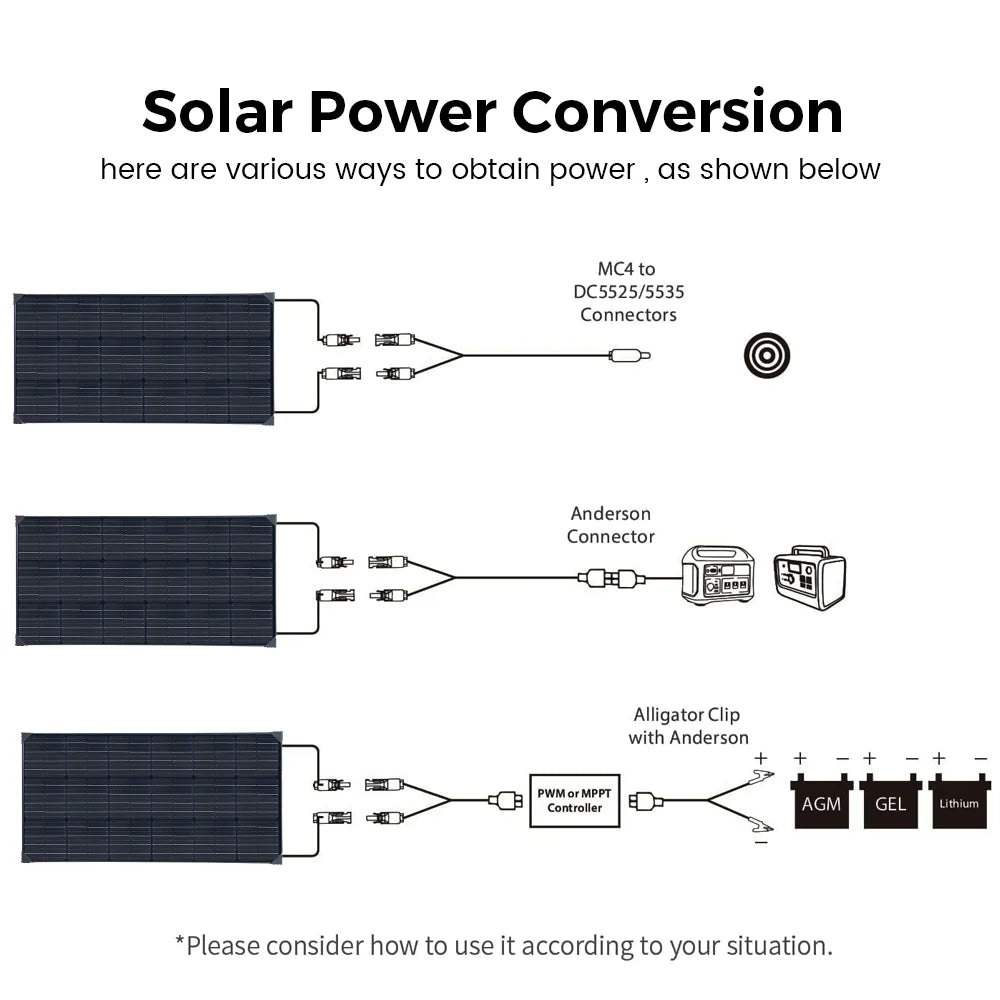

Solar Panel Connection Methods

Parallel connection of solar panels

24V Solar Panel System Connection

Solar Panel

First of all, the environment that solar panels are most suitable for is an area with lots of sunshine. In areas with less sunshine, the power generation effect of solar panels will be limited. Therefore, solar panels are suitable for areas where it is often sunny, such as the Middle East, Africa, Australia, etc. In addition to suitable weather conditions, these areas also have a large number of deserts and wilderness, which can be used to set up solar cell power stations.
Secondly, solar panels are also suitable for certain off-grid environments. Because it is very difficult to build power grids on some outlying islands or mountainous areas, solar panels have become a viable alternative. In these areas, solar panels also have good stability and reliability and can meet the energy needs of local people.
In addition, even in urban environments, solar panels are suitable for some scenarios. For example, in some factories, parking lots, highway toll stations, airports and other places that require a large amount of electricity, solar panels can be installed to convert sunlight into electrical energy. This can not only reduce environmental pollution, but also help companies reduce energy bills.
Generally speaking, solar panels are suitable for sunny areas, some off-grid environments, and some places that require a lot of electricity. These are where solar panels work best. Of course, with the continuous development of technology, solar panels will become more and more suitable for more environmental scenarios, providing people with more reliable and cleaner energy.
