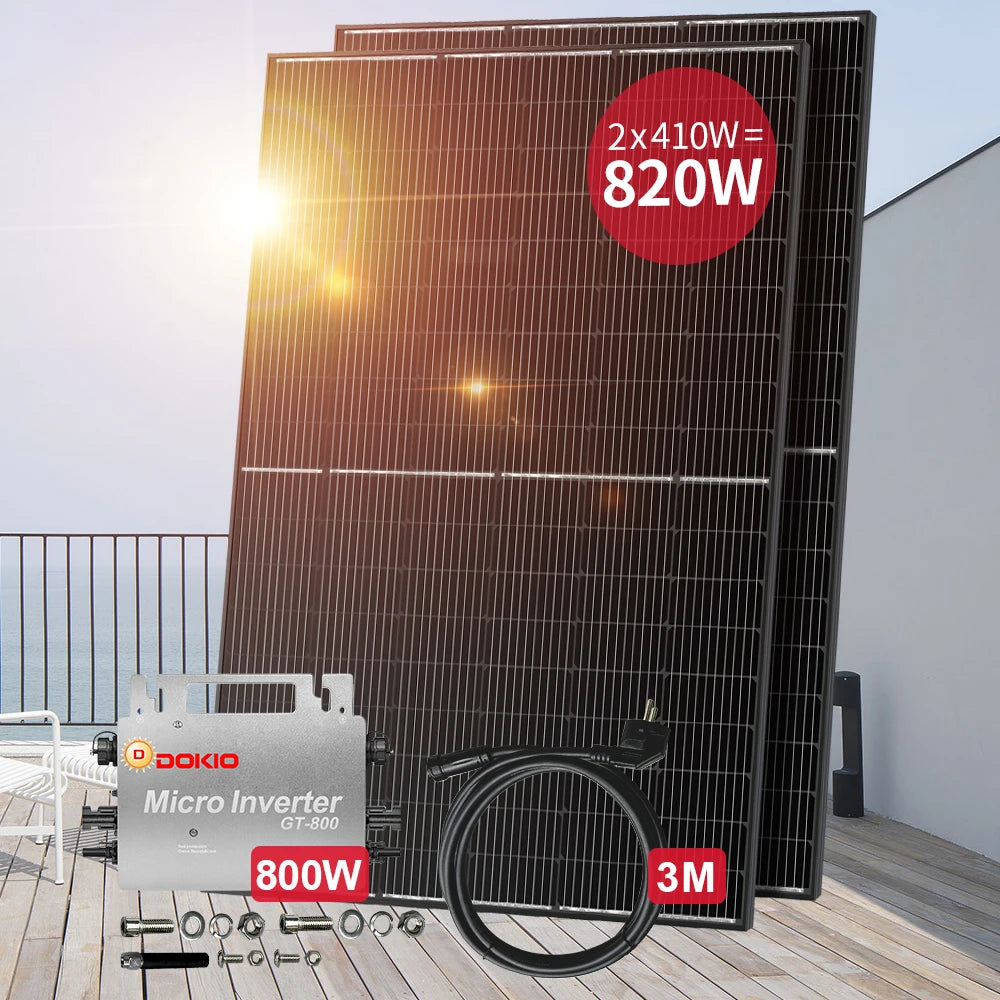

Balcony Solar PV Kit 0.8 KW

€500,00 EUR

Sale Sold out

Taxes included.

Color 800W With Inverter

Quantity

SPECIFICATIONS

Brand Name: DOKIO

Origin: Mainland China

Specification: Normal

Application: Home

Output Voltage (V): 31V

Certification: CE

Model Number: DPS-400MX2+WN800

PS:

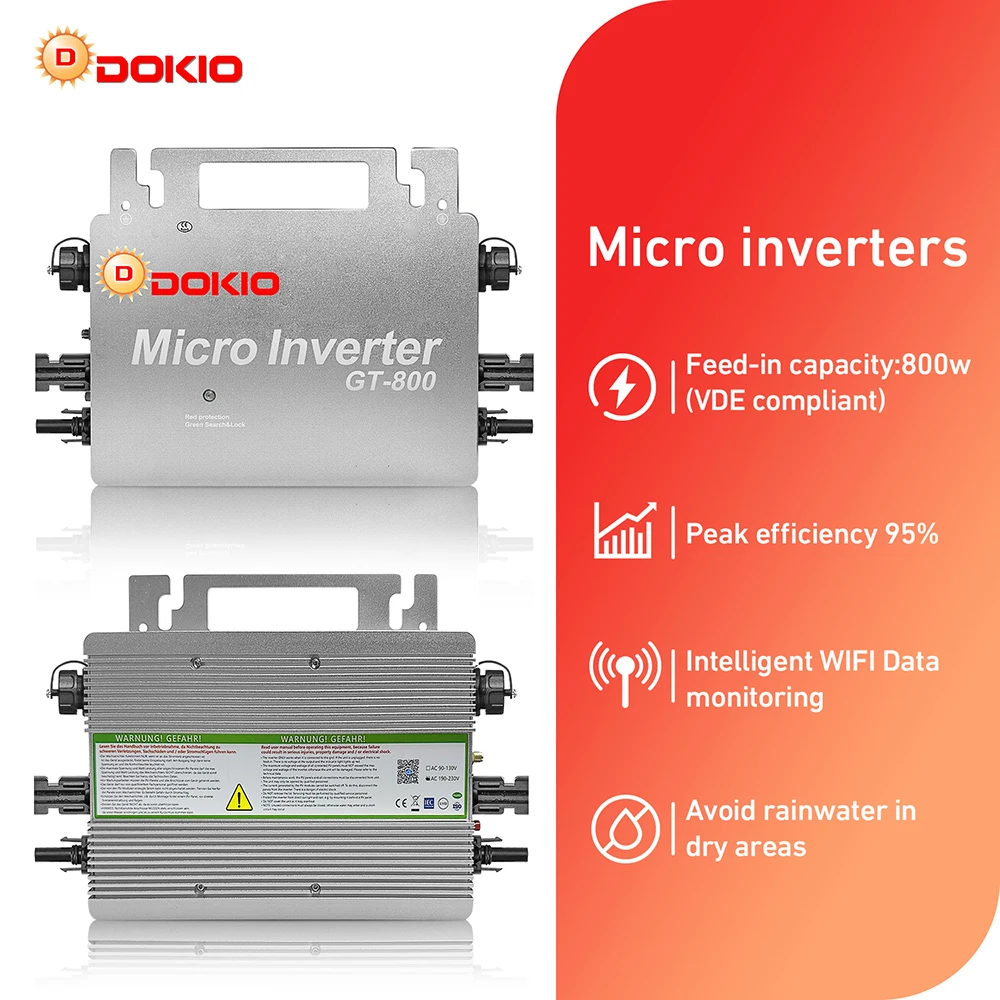

1.Do not expose the inverter to rain, otherwise the inverter will not work properly，Please place the inverter in a dry and cool place

2. The package is shipped in two packages, the inverter package arrives first, and the solar panel package (returns are not supported) arrives later.

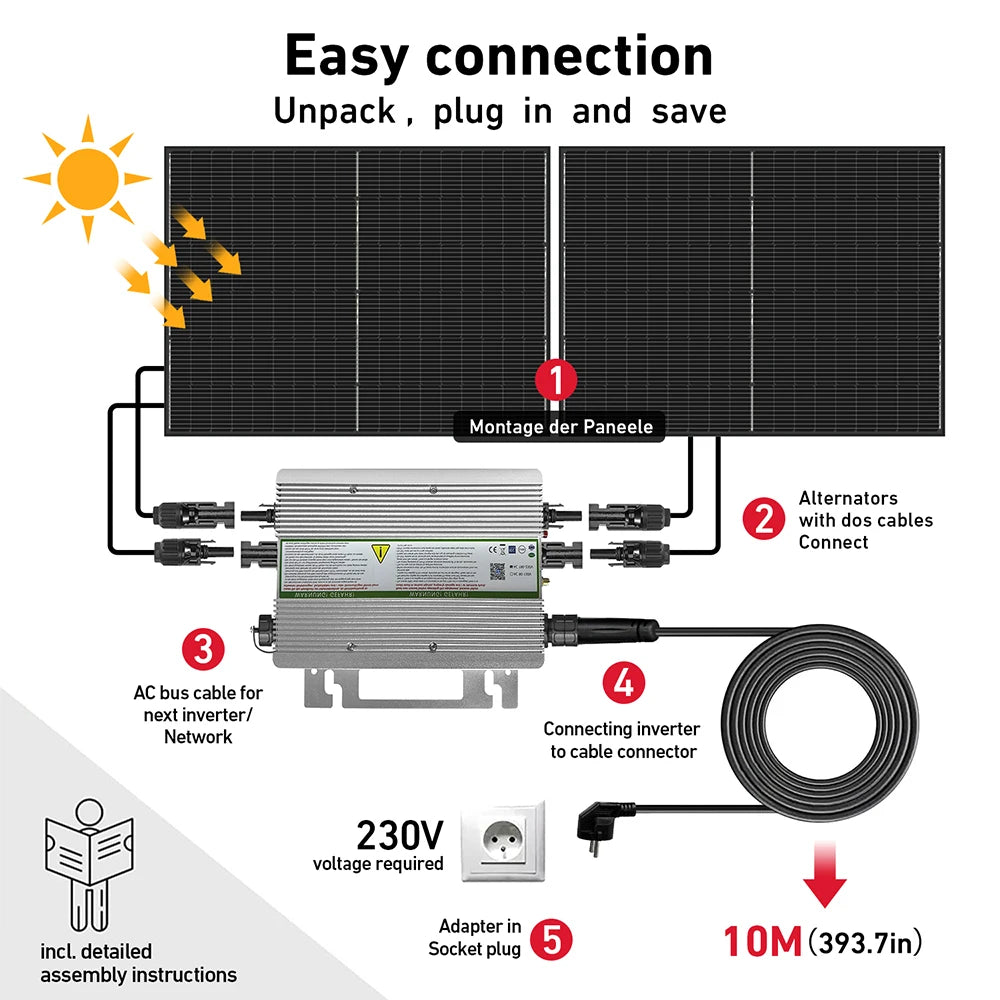

3. The balcony power station is only suitable for home power grids. The AC terminal must meet 230V voltage to start the inverter. The outlet voltage is unstable and the inverter cannot be started.

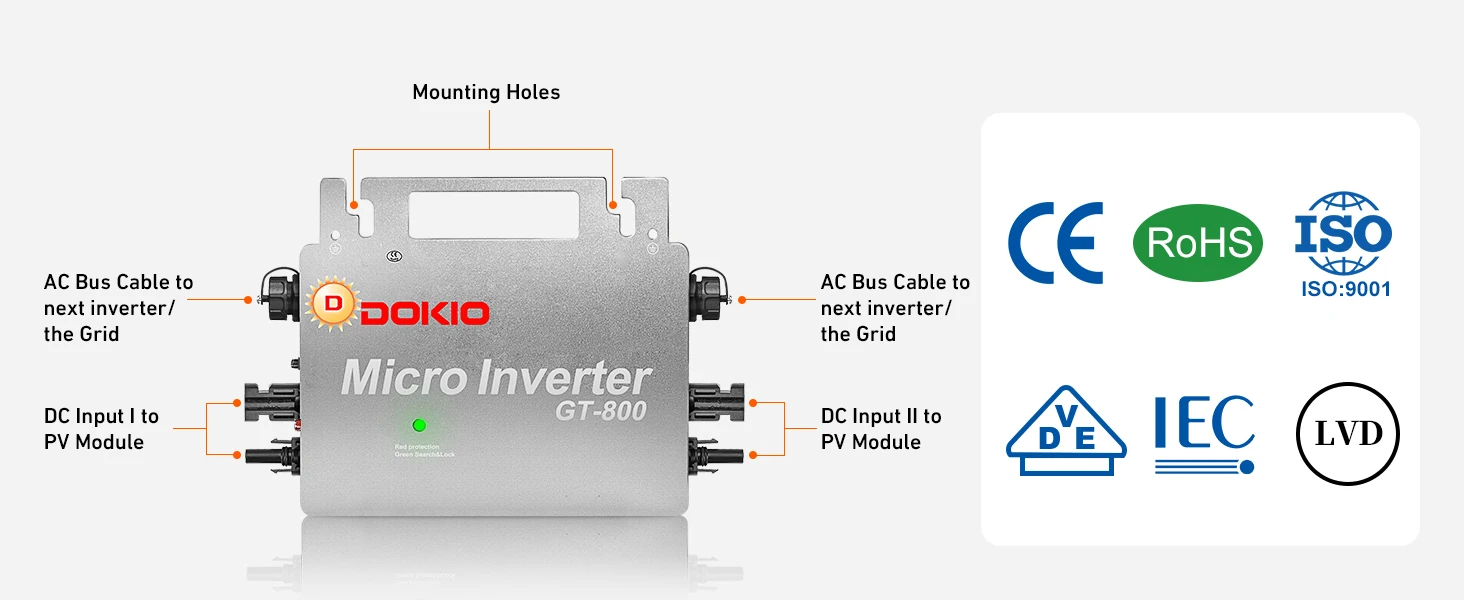

4. Please connect the positive and negative poles of the inverter correctly, otherwise the inverter may be burned!

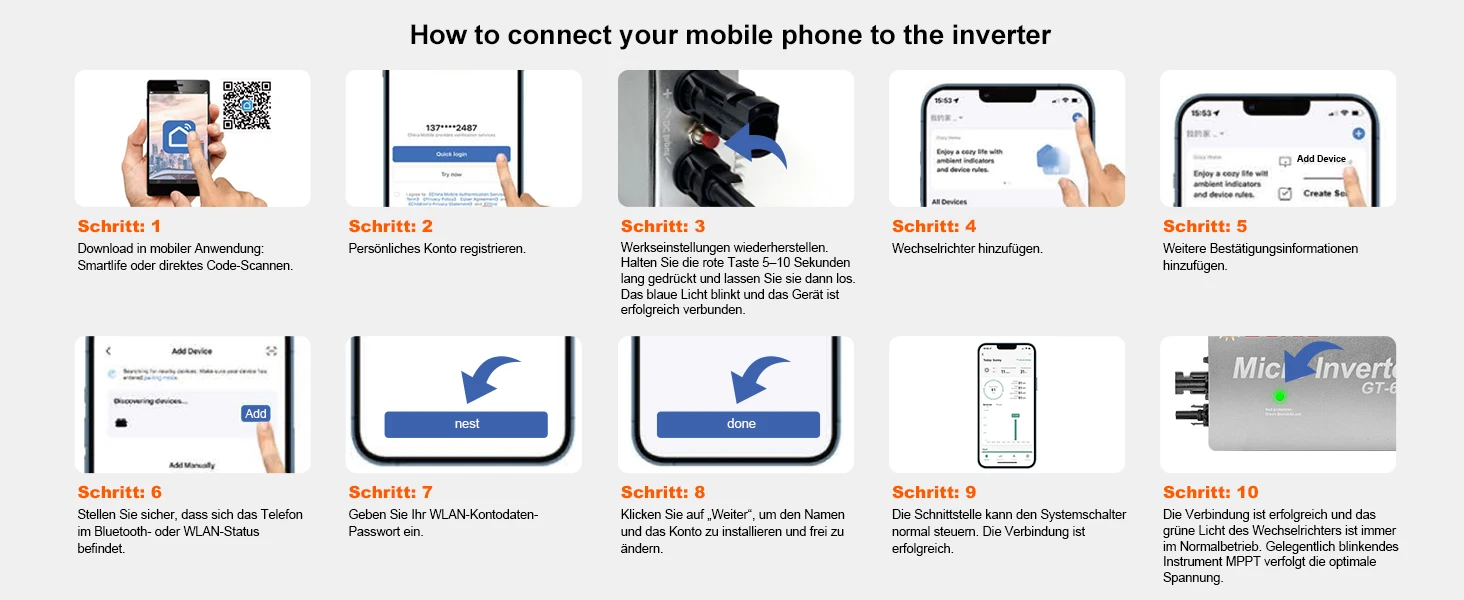

5. After receiving the inverter, please download the APP first and connect the inverter via wifi

6. The reason why the inverter WiFi indicator light does not light up is that the AC terminal must meet the 230V voltage. If the wifi indicator still does not light up after meeting the 230V condition, please press and hold the side button to try to restart the inverter.

7. The reason why the indicator light on the front of the inverter flashes red or does not light up: The solar panel must be exposed to the sun and the voltage of the solar panel is normal. If the solar panel voltage is too low, the inverter cannot start.

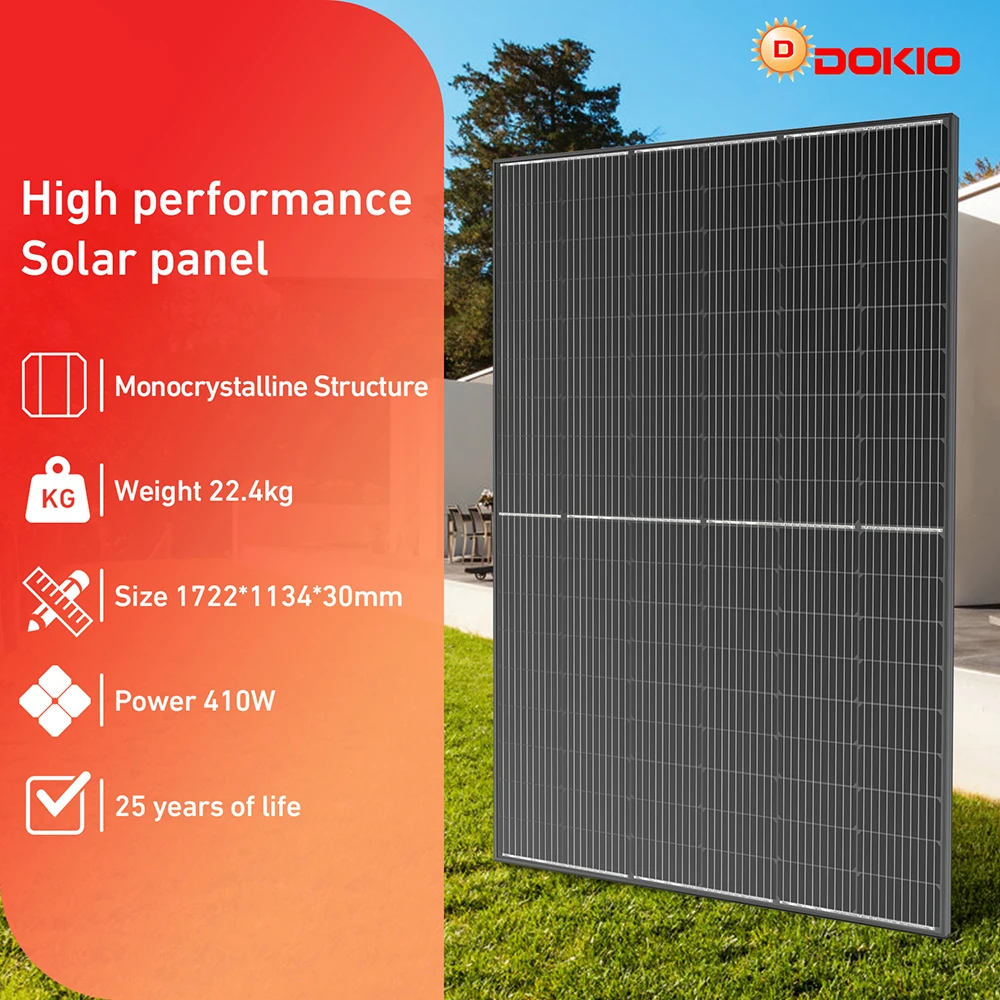

Model:DSP-400M

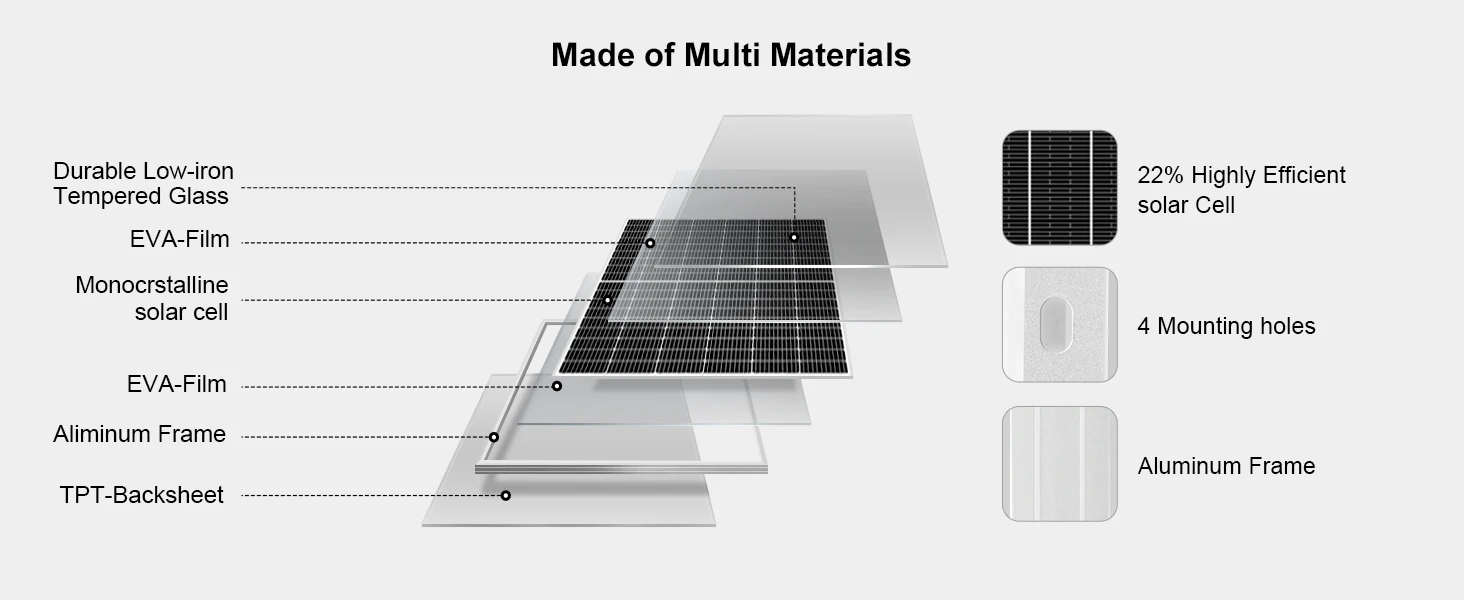

Material:Monocrystalline silicon

Maximum Power(Pmax):400W±3%

Maximum Power Voltage(Vmp):31.00V

Maximum Power Current (Imp):13.09A

Open-Circuit Voltage (Voc):37.08V

Short-Circuit Current (Isc):13.24A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Weight: 22.4kg

Dimensions:1722*1134*30mm
