Enesust

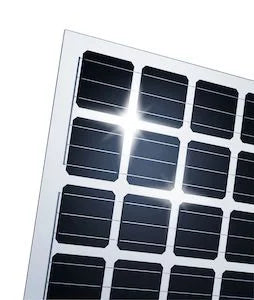

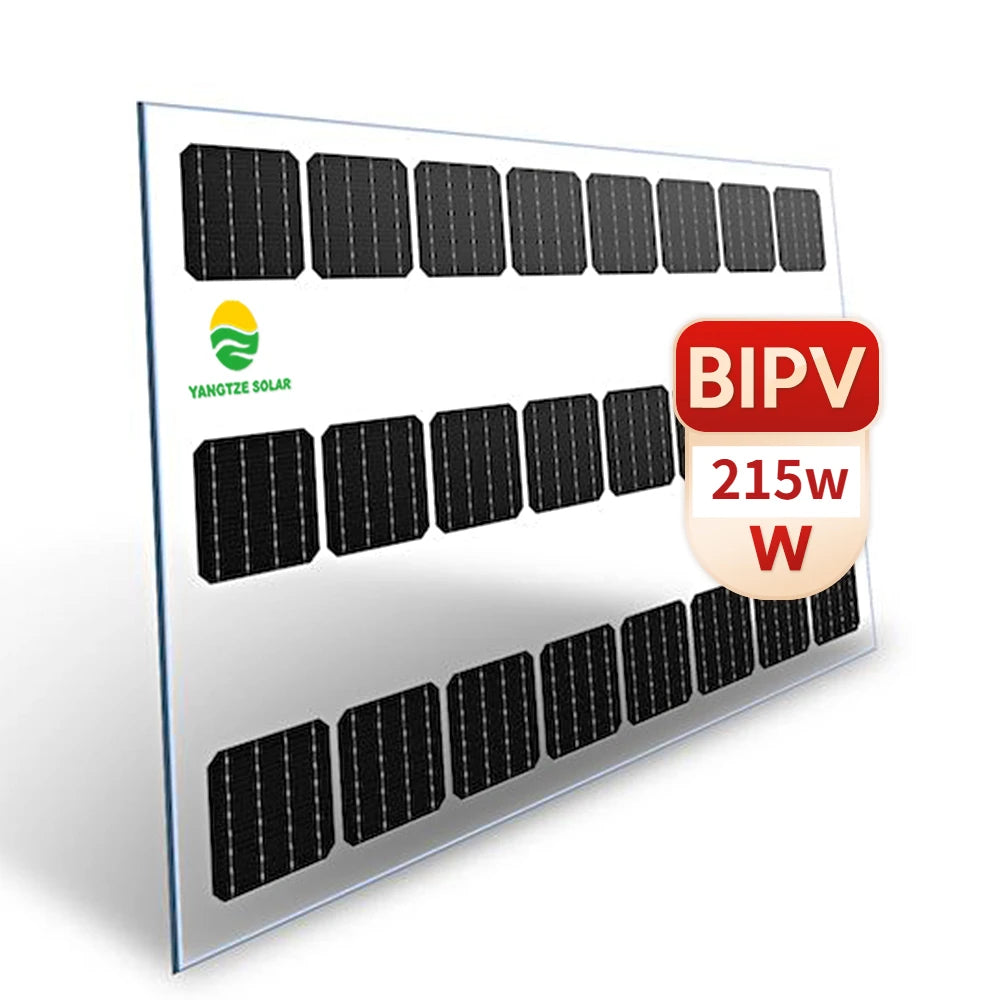

Solar Glass 215W

€499,75 EUR

Sale Sold out

Taxes included.

Default Title Default Title

Quantity

SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Model Number: YS215M-BI

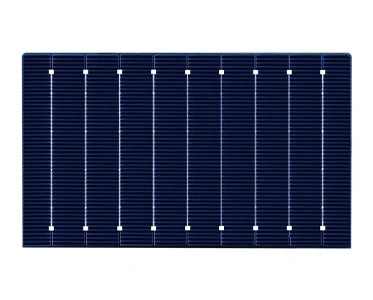

Material: Monocrystalline Silicon

Place of Origin: China

Panel Dimensions: 1979*1002mm

Panel Efficiency: 21.98%

Transparency: 40%

thickness: 4+4mm (8mm)

Product Description

Model Type	YS200M-BI	YS560M-72	YS300M-BI	YS580M-72	YS400M-BI
Rated Maximum Power at STC	200W	560W	300W	580W	400W
Maximum Power Voltage (Vmp)	28.5V	41.1V	33.2V	41.5V	34.82V
Maximum Power Current (Imp)	7.02A	13.63A	9.03A	13.98A	11.49A
Open Circuit Voltage ( Voc)	35.63V	49.72V	41.5V	49.91V	43.53V
Short Circuit Current (Isc)	7.51A	14.33A	9.69A	14.81A	12.64A
Module Efficiency	14.90%	21.72%	18.44%	22.49%	21.98%
Working Conditions&Working Conditions
Glass Thickness		2mm 4mm 6mm 8mm 10mm 12mm
Transmittance		10% 20% 30% 40% 50% 60% 70% 80%
Operating Temperature		-40°c~+85°c
Maximum System Voltage		DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse		25A
Power Tolerance		0~+5W
Temperature Coefficient of Pmax		-0.35%/°c
Temperature Coefficient of Voc		-0.29%/°c
Temperature Coefficient of Isc		+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
