Solar Panels 100W
Solar Panels 100W
SPECIFICATIONS
Brand Name: BOGUANG
Origin: Mainland China
Number of Panels: >20
Flexible Solar Panel: No
Foldable Solar Panel: No
Hign-concerned Chemical: None
Type: Solar Panel
Module Efficien: 21.8%
Model Number: solar panel
Size: 1050*530*25mm
Material: Monocrystalline Silicon
Nominal Capacity: 100W 200W 300W 400W 500W 600W 1000W
Number of Cells: 36 pcs solar cells
Max. Power: 100W 200W 300W 400W 500W 600W 1000W
is_customized: Yes
Certification: CE
Certification: FCC
Certification: RoHS
Certification: weee
1 pcs solar panel: 12 Volt 100 WATT
200W solar panel: 2 pcs 100W
200W Solar panel kit: 12V / 24V
Open circuit voltage(Voc): 21.6V
Maximum power voltage(Vmp): 18V
Maximum power current(Imp): 5.55A
Weight: 3210g
Connect the battery type: B01/B02/B03/B04/B00
B01: Sealed battery
B02: Gel battery
B03: Flood battery
B04: Lithium battery custom type
B00: Lead-acid battery custom type
Power Source: Solar
Solar Panel Power(1pcs): 100w
Current Type: DC

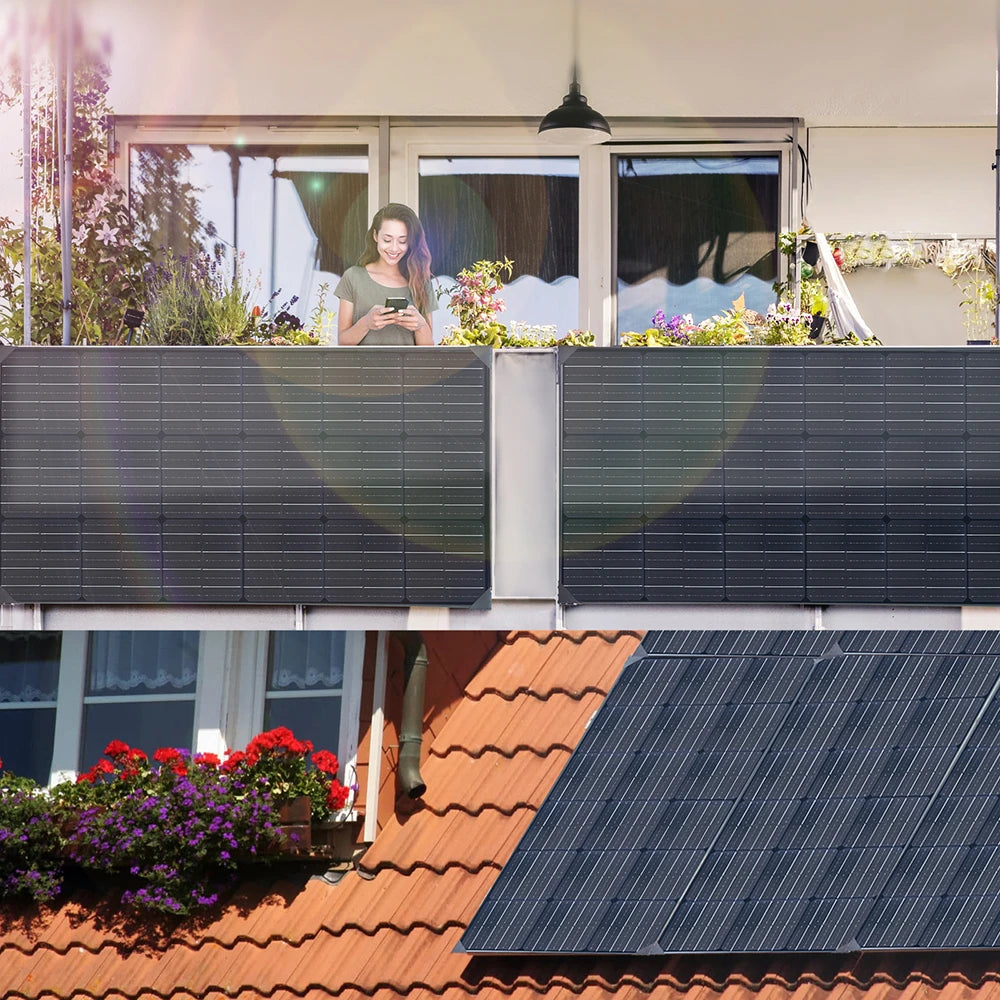

Application: Agriculture/Farming, Aquaculture, Automotive, Back-up Power, Camping/Hiking, Commercial, Electronics, Home/Garden, Irrigation, Marine
solar panel 300w: 3 pcs 100W solar panel
solar panel 400w: 4 pcs 100W solar panel
solar panel 500w: 5 pcs 100W solar panel
solar panel 600w: 6 pcs 100W solar panel
solar panel 800w: 8 pcs 100W solar panel
solar panel 1000w: 10 pcs 100W solar panel
battery solar panels: solar panel for travel
portable solar panel: 18v solar panel
solar panel tourism: powerful solar panels
solar panel charger: solar panel for home
monocrystalline solar panel: pv solar panel
solar panel monocrystaline: for 12V battery /24V battery
Photovoltaic panel: solar panel 100 w
Camping Shed
Compact and Reliable - The 100W 12V Monocrystalline solar panel delivers a stable output of an average 500Wh of electricity per day (depending on sun availability). With its compact solar cell arrangement, this Boguang 100w solar panel weighs only 7.05 lbs and is 8-10% lighter and smaller than conventional rigid solar panels.
Superior Quality and Material - All Boguang solar panels are made from 100% EL-tested Grade A+ solar cells to provide the highest power conversion efficiency and prolonged lifespan. This 100 watt solar panel is also equipped with PERC cells to deliver an excellent cell efficiency of 23%.

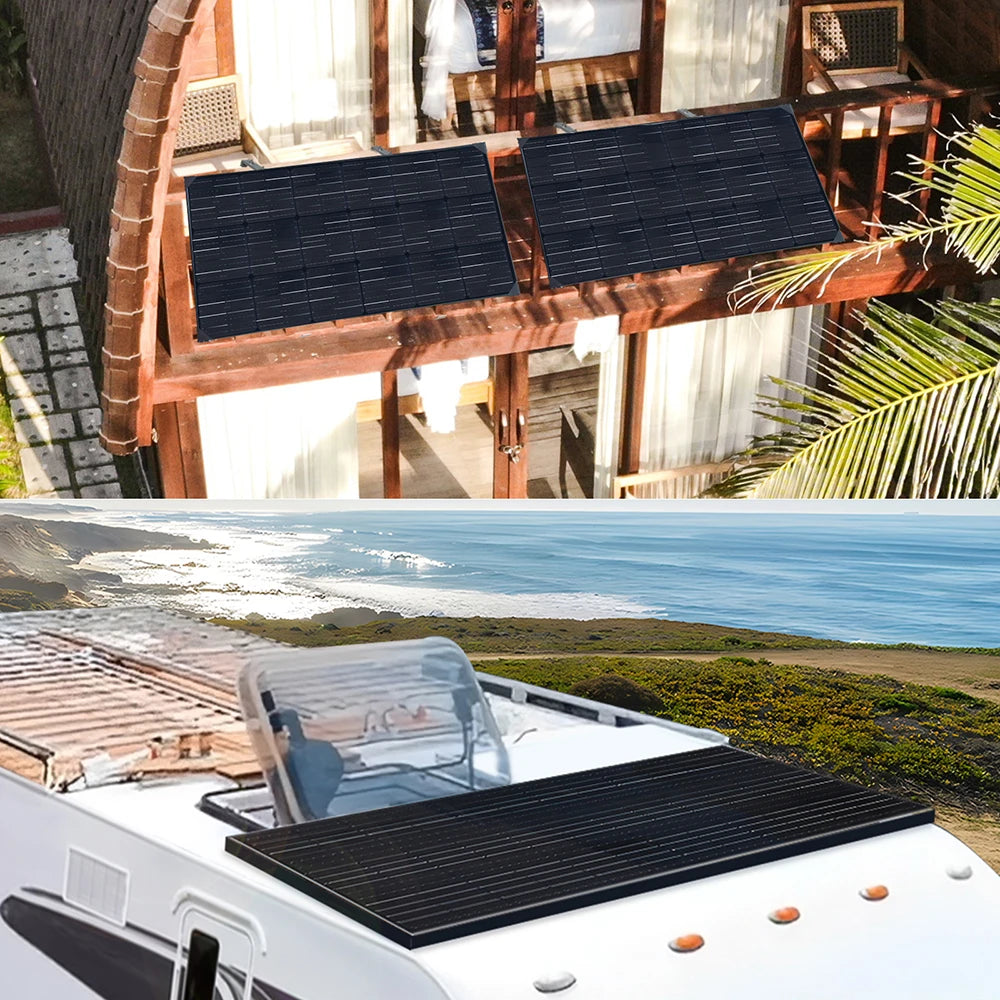

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.Maximum Series Fuse Rating: 15A
【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

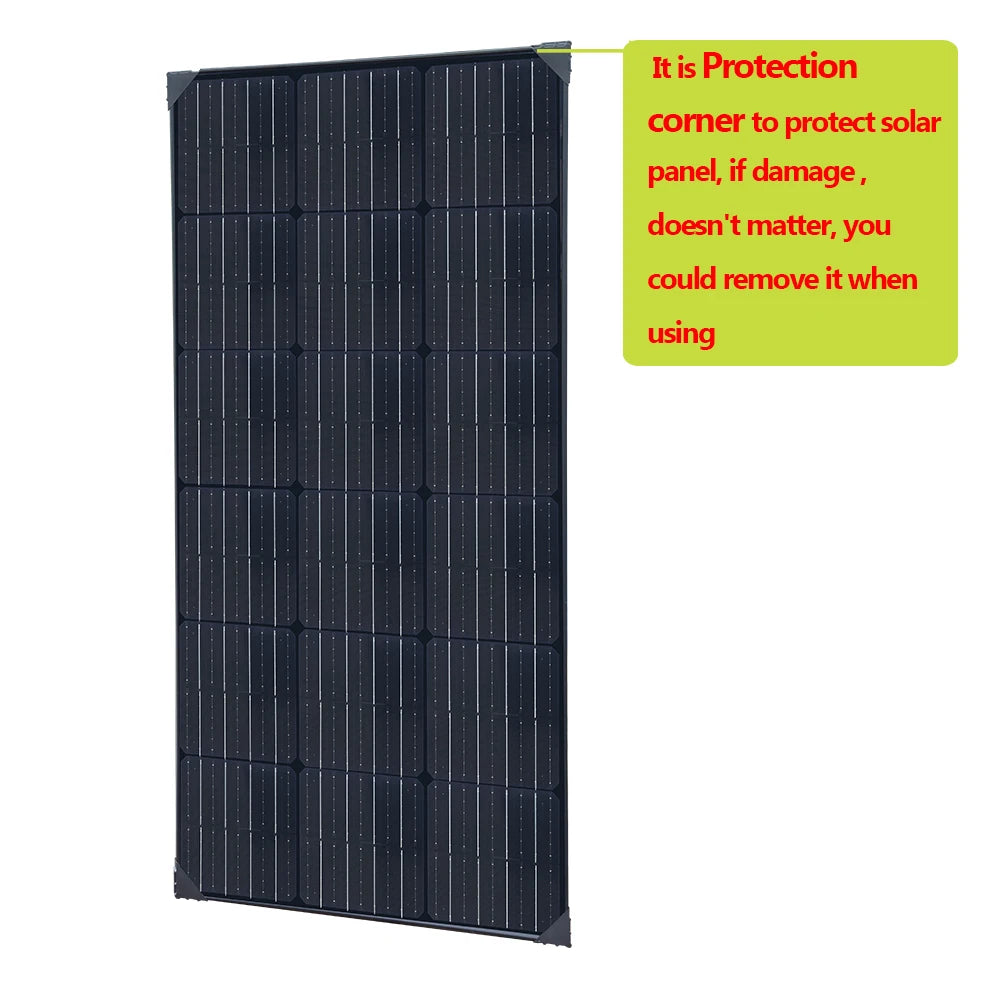

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa),Boguang uses corrosion-resistant aluminum frames corner support to ensure this panel solar can perform and withstand all weather conditions.
PET solar panels with bezel, not glass solar panels
Technical Parameters:
100w solar panel Specification
Maximum power(Pmax) 100W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.06 A
Maximum power current(Imp) 5.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 33pcs
Weight 3210g

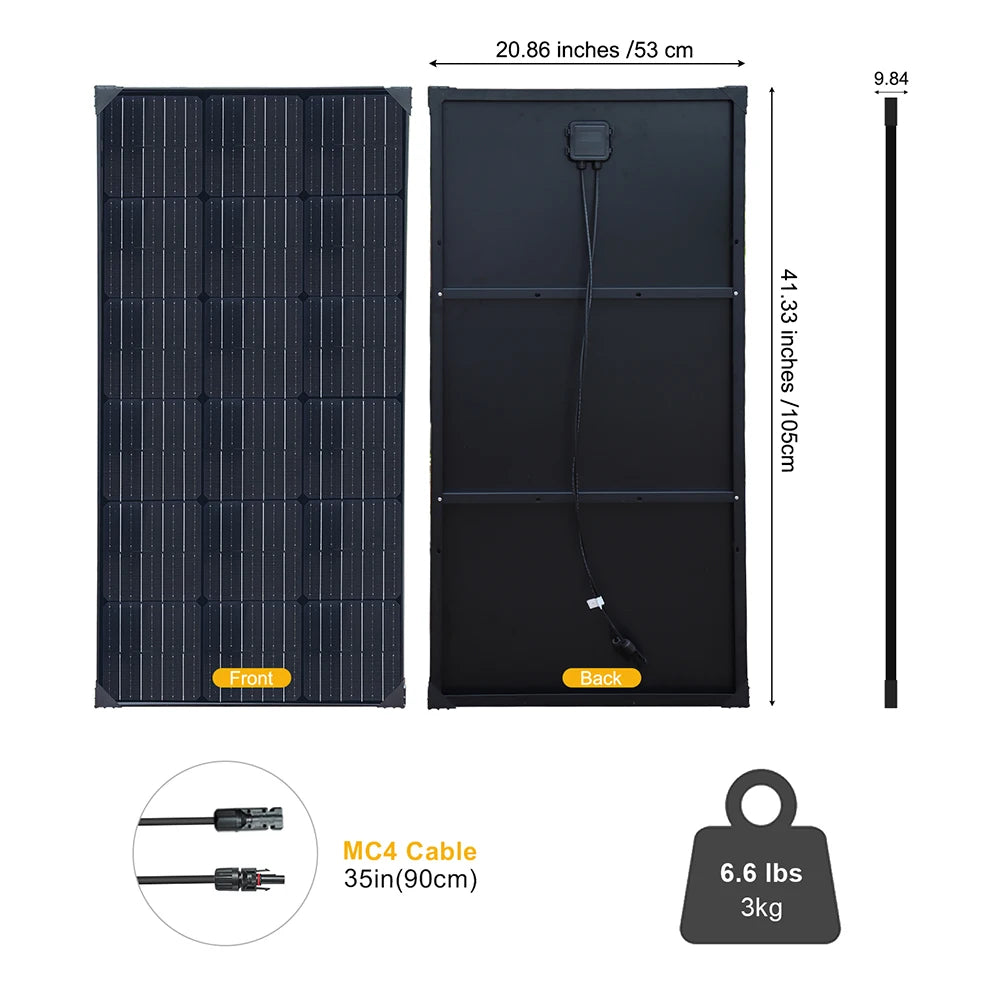

Size 1050*530*25mm
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

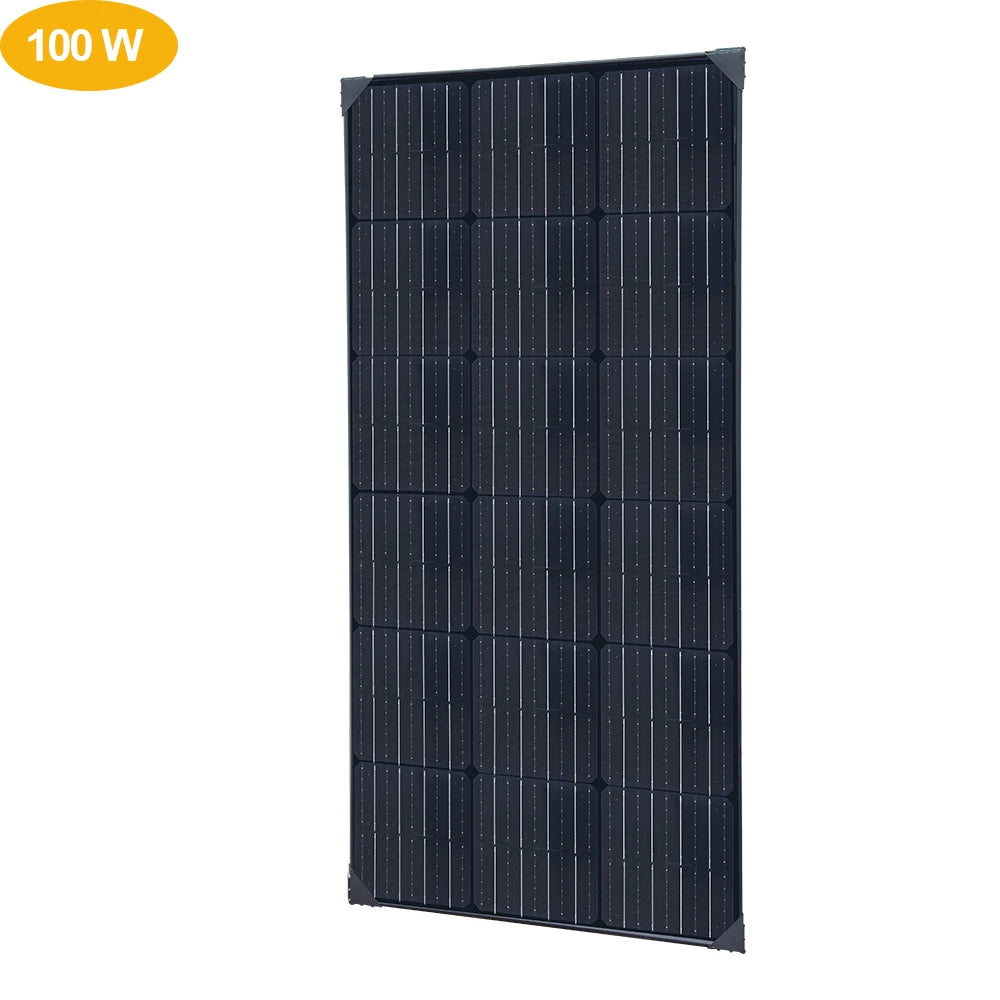

100W solar panel Pcakage list (1pcs solar panel)
1、1pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

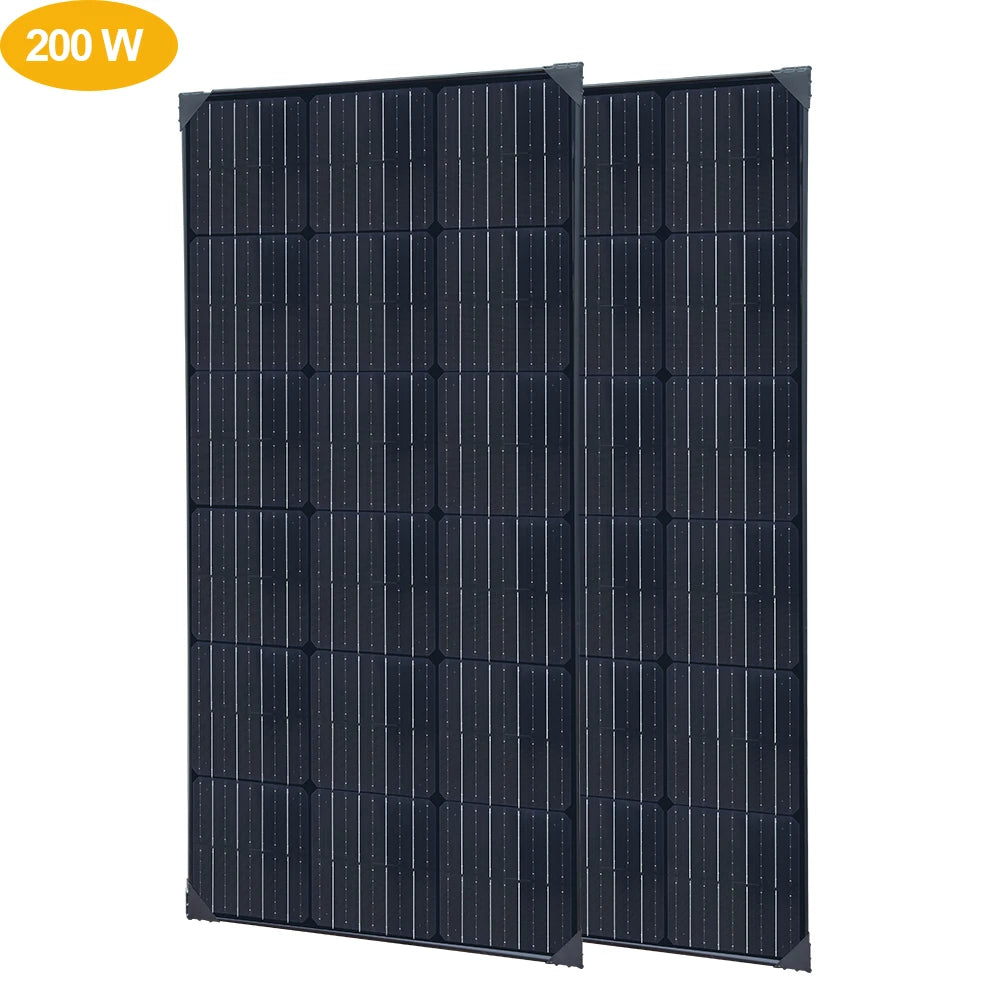

200W solar panel Pcakage list (2pcs solar panel)
1、2pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

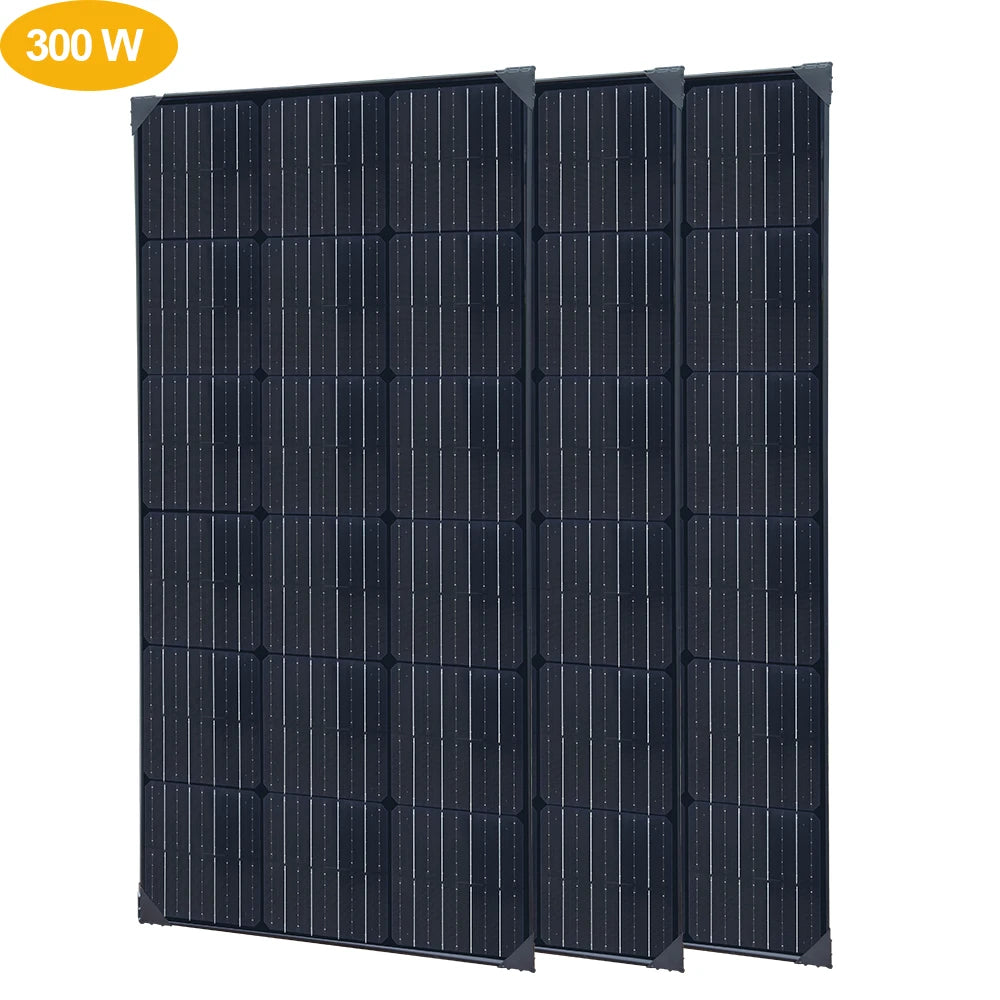

300W solar panel Pcakage list (3pcs solar panel)
1、3pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

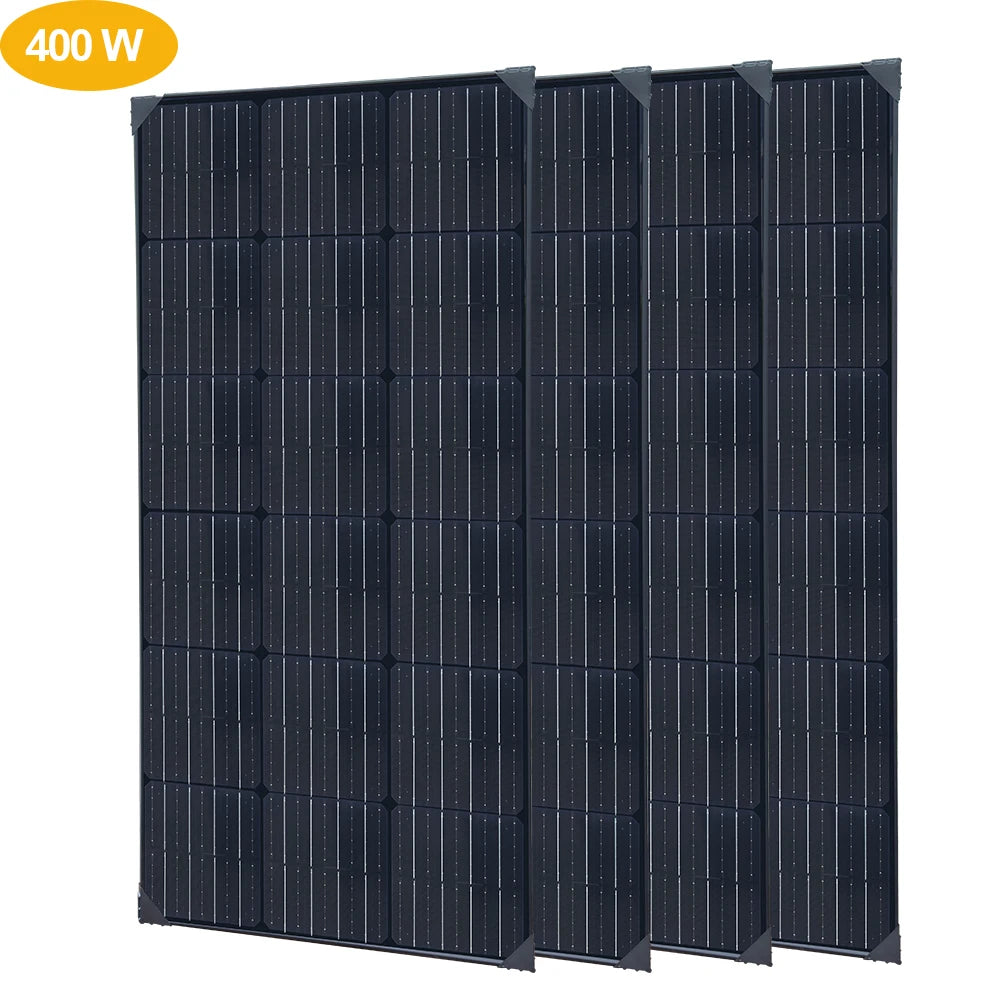

400W solar panel Pcakage list (4pcs solar panel)
1、4pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

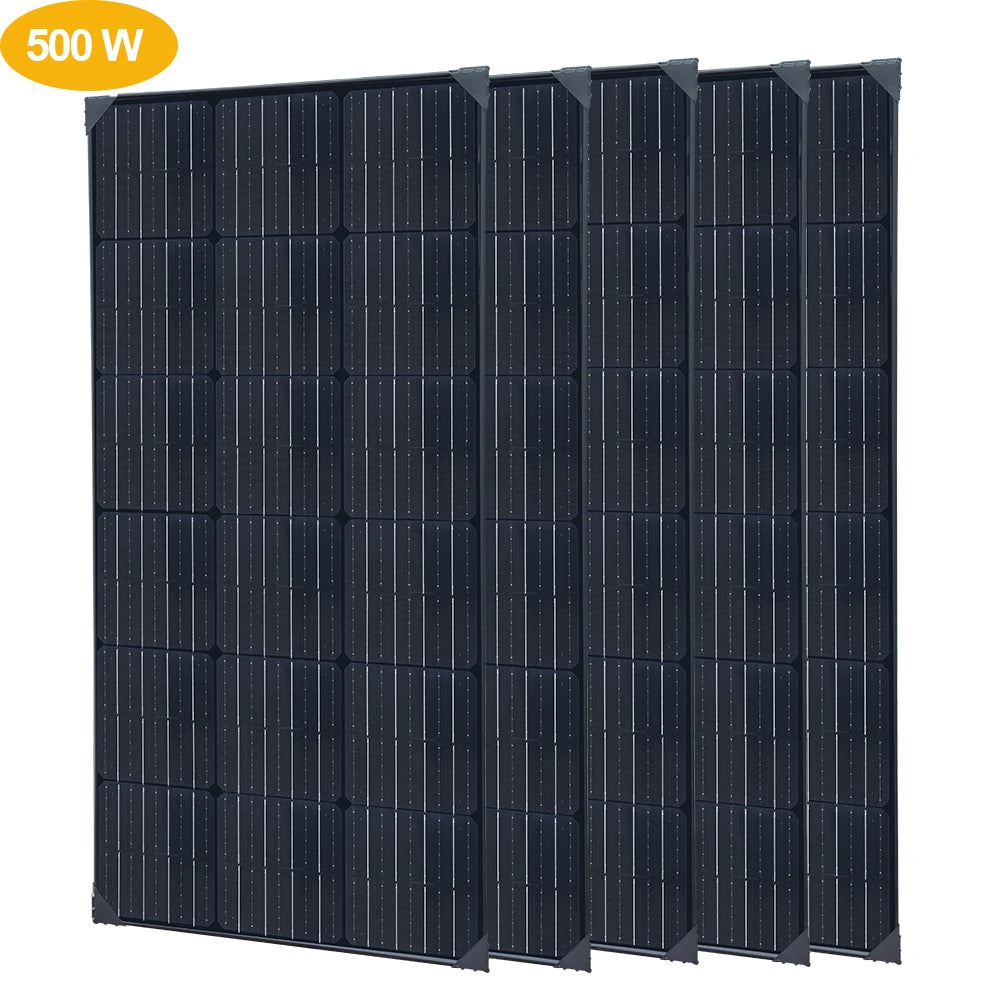

500W solar panel Pcakage list (5pcs solar panel)
5pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

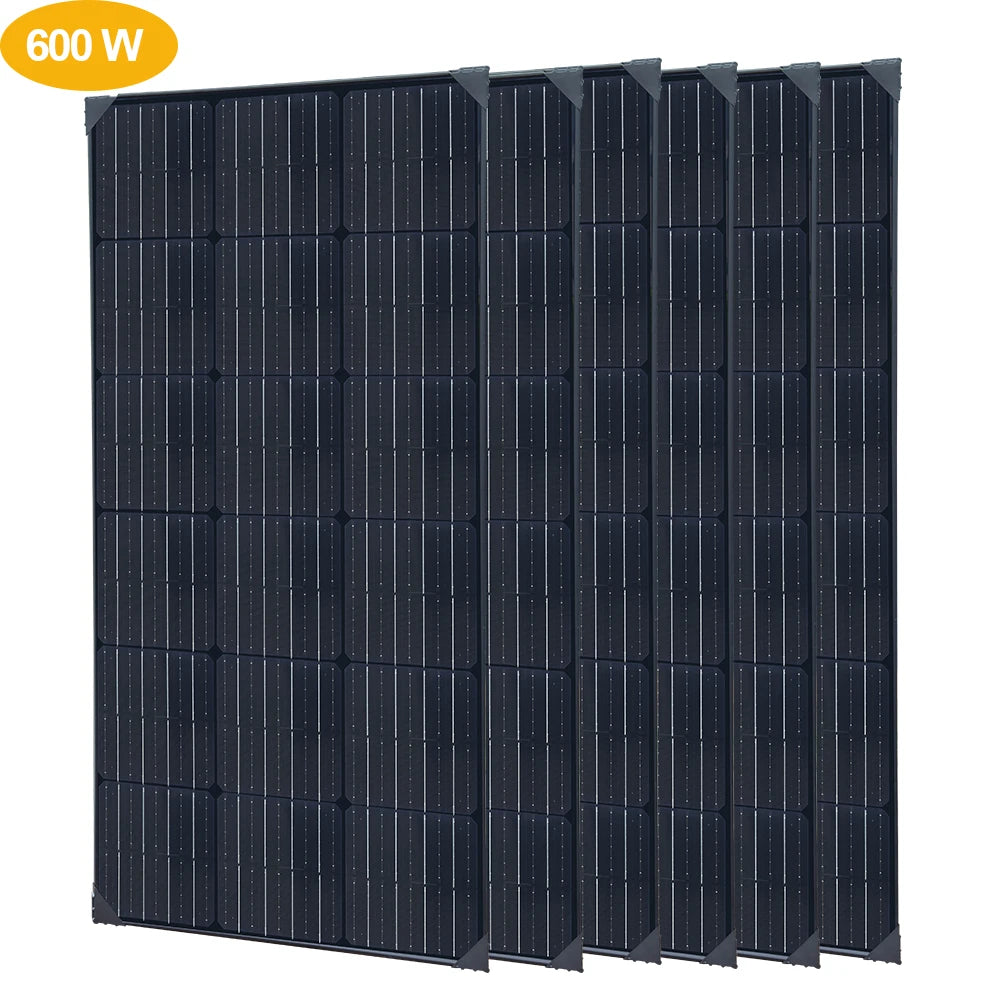

600W solar panel Pcakage list (6pcs solar panel)
6pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

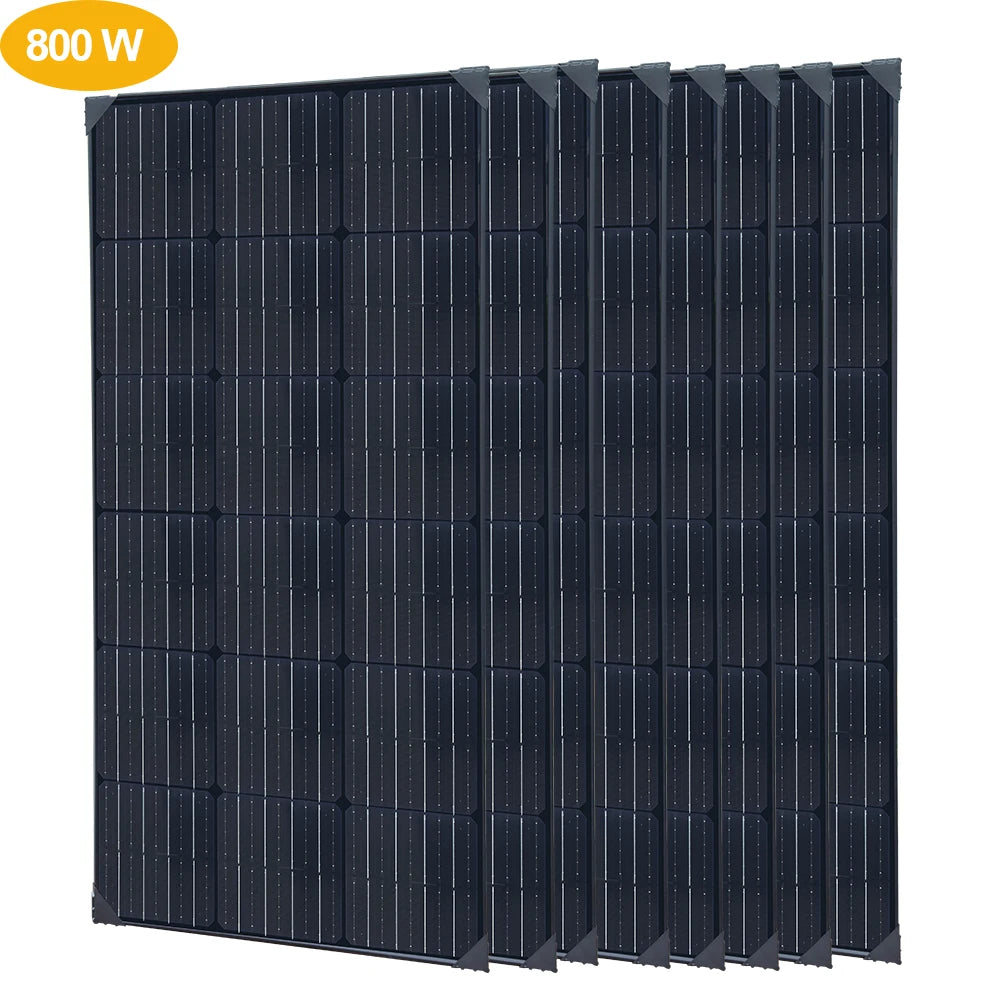

800W solar panel Pcakage list (8pcs solar panel)
8pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

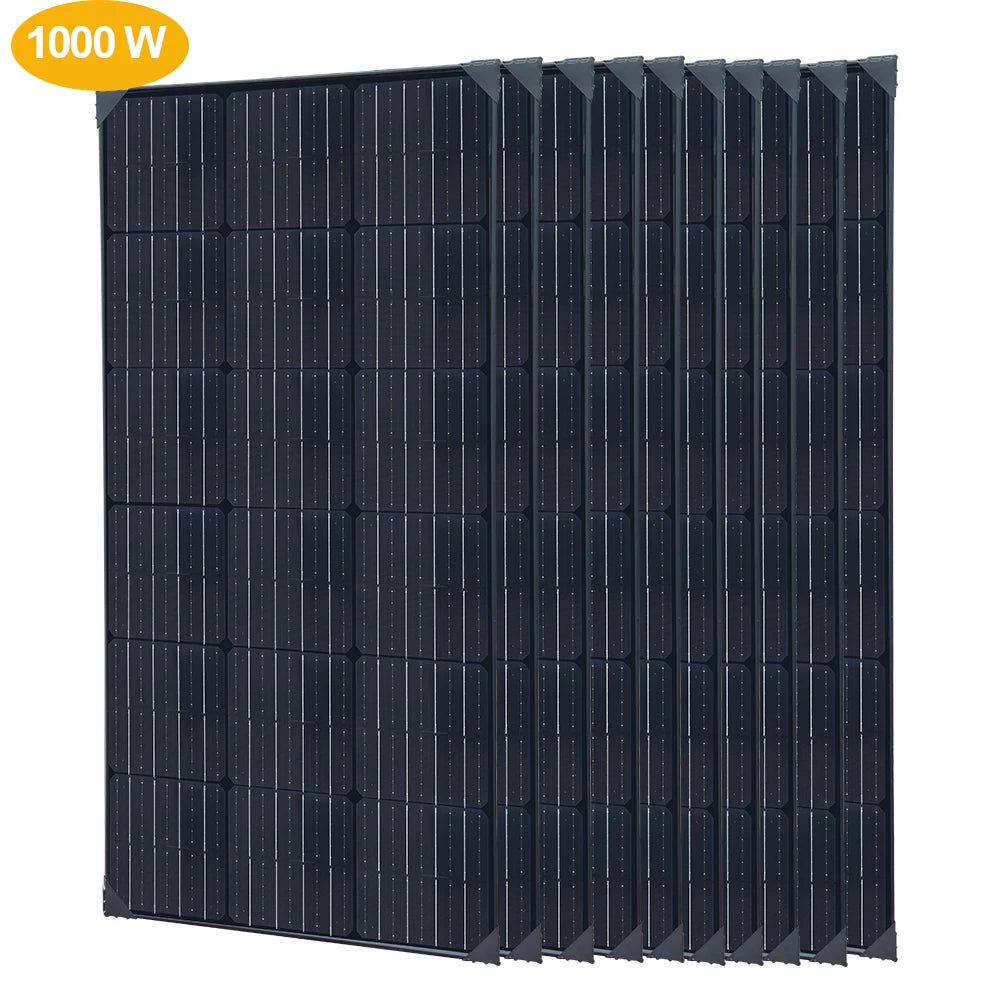

1000W solar panel Pcakage list (10pcs solar panel)
10pcs 100w Solar panel (solar panel with frame, size:1050*530*25mm)

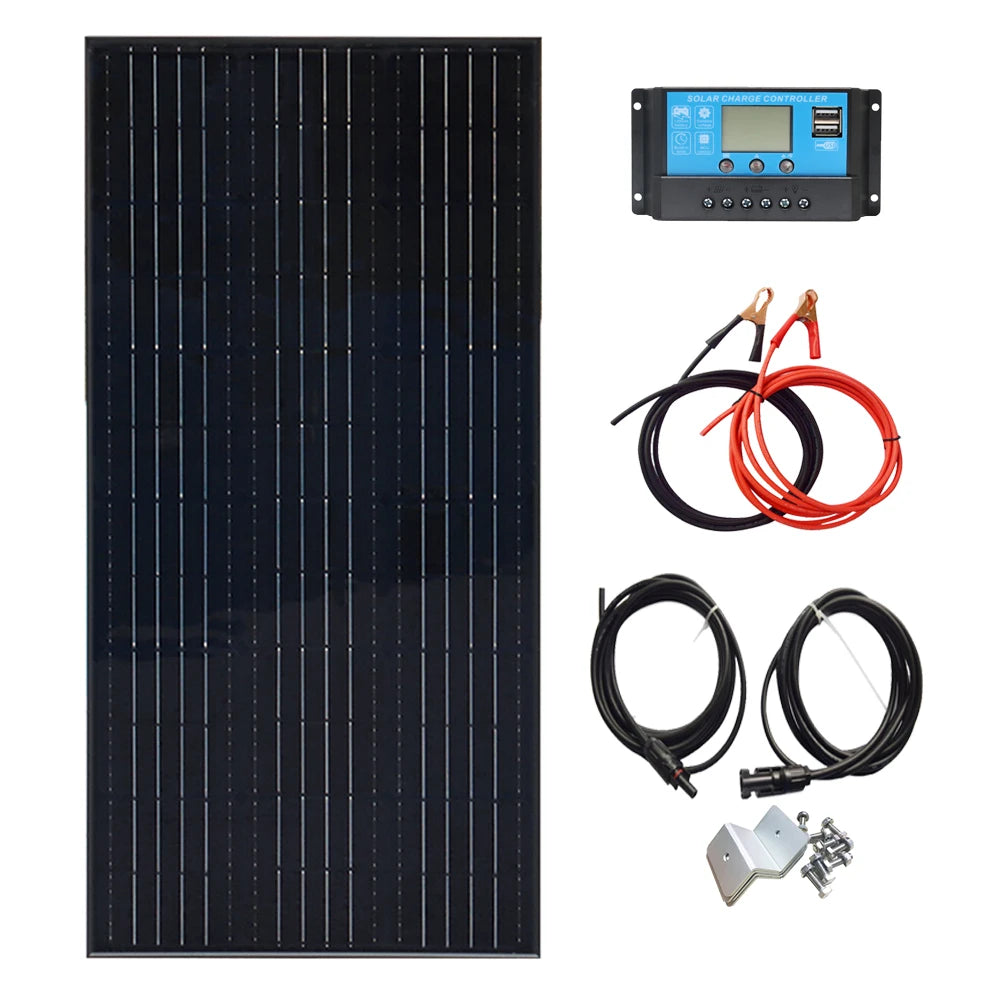

12V 100W solar kit Pcakage list #
1pcs 100w Solar panel(solar panel with frame, size:1050*530*25mm)
2、12V/24V 10A solar charger controller
3、1 set 3 meters cable with PV connector
4、1 Set 3 meter cable with Alligator clip

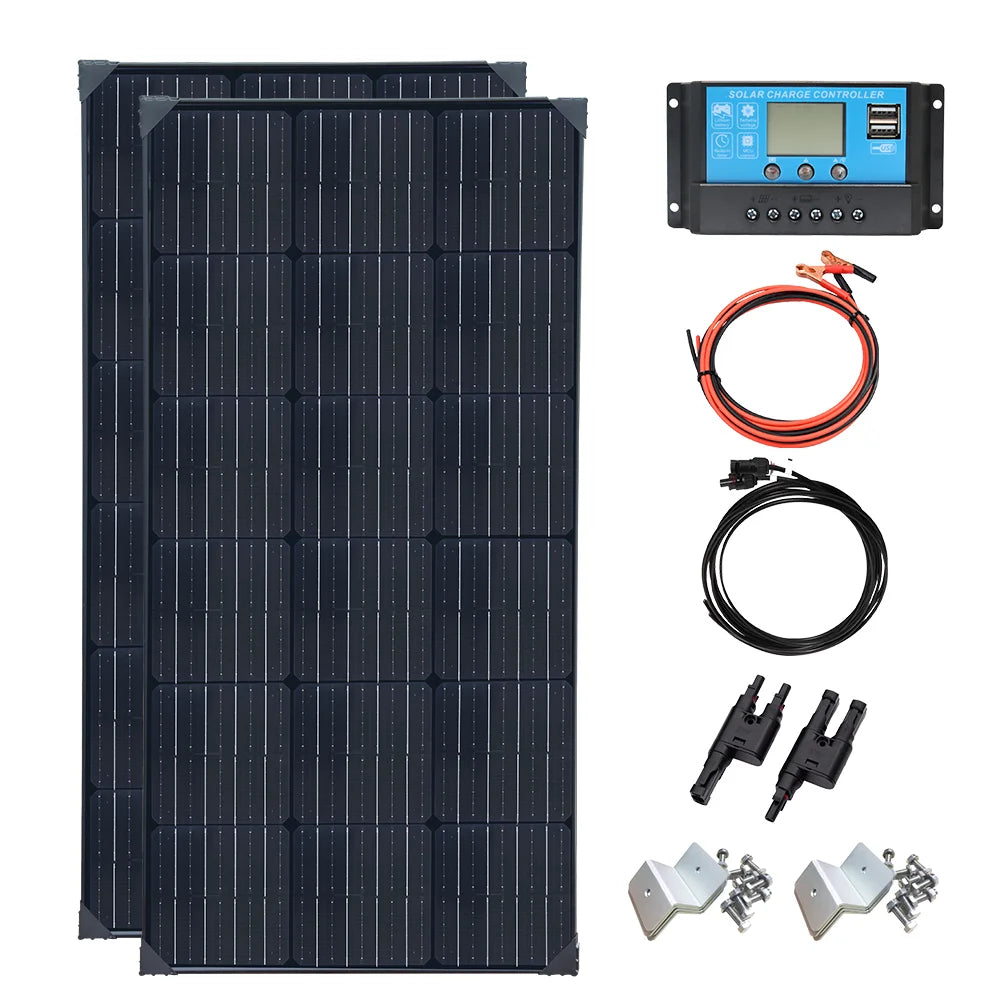

12V/24V 200W solarkit Pcakage list #
1、2pcs 100w Solar panel(solar panel with frame, size:1050*530*25mm)
2、12V/24V 20A solar charger controller
3、1 set 3 meters cable with PV connector
4、1 Set 3 meter cable with Alligator clip
5、1 set 2 in 1 adapter
6、8pcs Bracket
